Decoding method and apparatus for an audio signal through high frequency compensation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 22, 2014
Grant Date -
May 29, 2008
app pub date -
Sep 20, 2007
filing date -
Nov 24, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

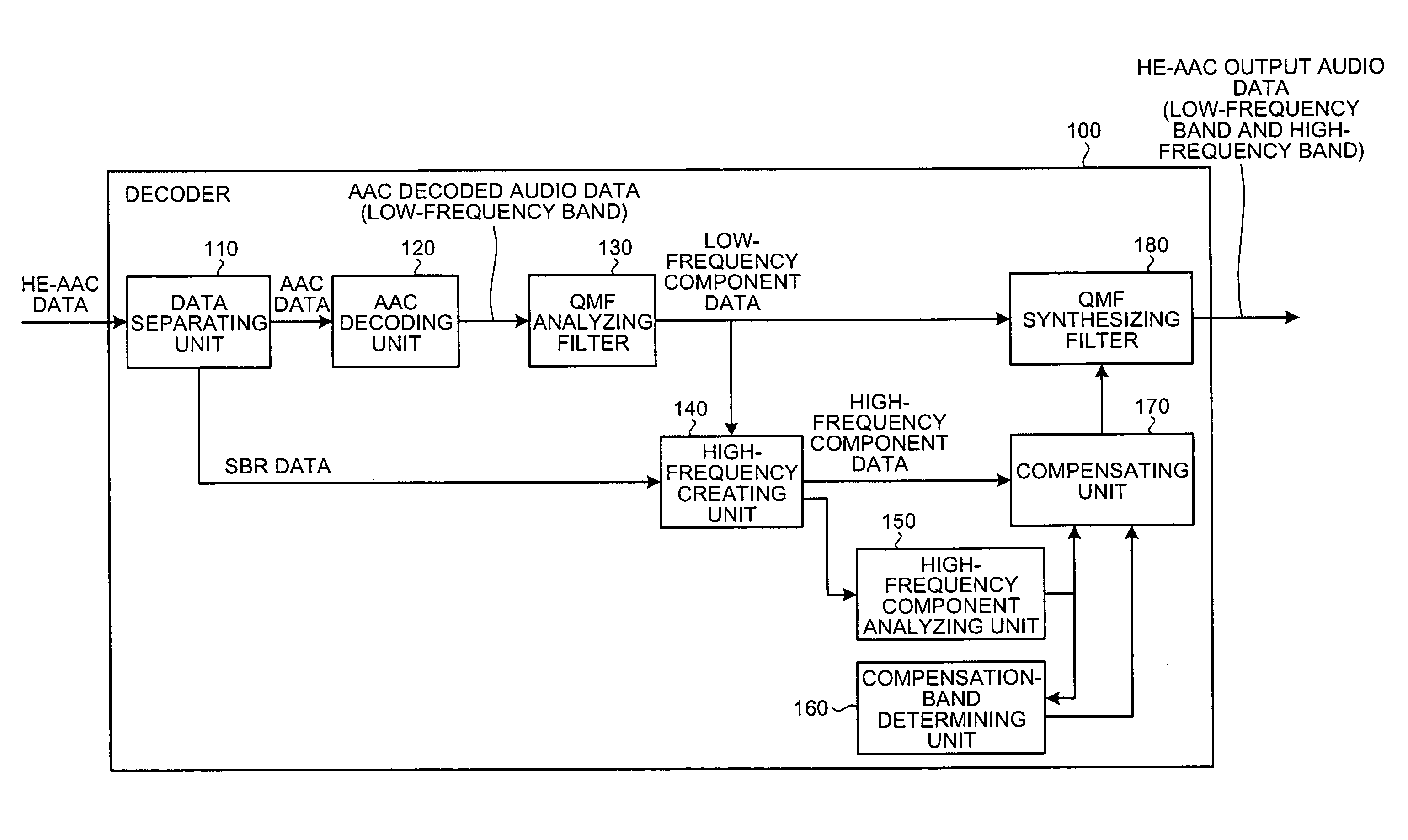

A decoding apparatus decodes a first encoded data that is encoded from a low-frequency component of an audio signal, and a second encoded data that is used when creating a high-frequency component of an audio signal from a low-frequency component and encoded in accordance with a certain bandwidth, into the audio signal. In the decoding apparatus, a high-frequency component detecting unit divides the high-frequency component into bands with a certain interval range correspondingly to the certain bandwidth, and detects magnitude of the high-frequency components corresponding to each of the bands. A high-frequency component compensating unit compensates the high-frequency components based on the magnitude of the high-frequency components corresponding to each of the bands detected by the high-frequency component detecting unit. A decoding unit that decodes the low-frequency component decoded from the first encoded data, and the high-frequency components compensated by the high-frequency component compensating unit, into the audio signal.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G10L Class
- 4.63 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 22, 2026 |
