Methods and systems for recording to holographic storage media
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 22, 2014
Grant Date -
Nov 17, 2005
app pub date -
May 17, 2005
filing date -
Nov 22, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

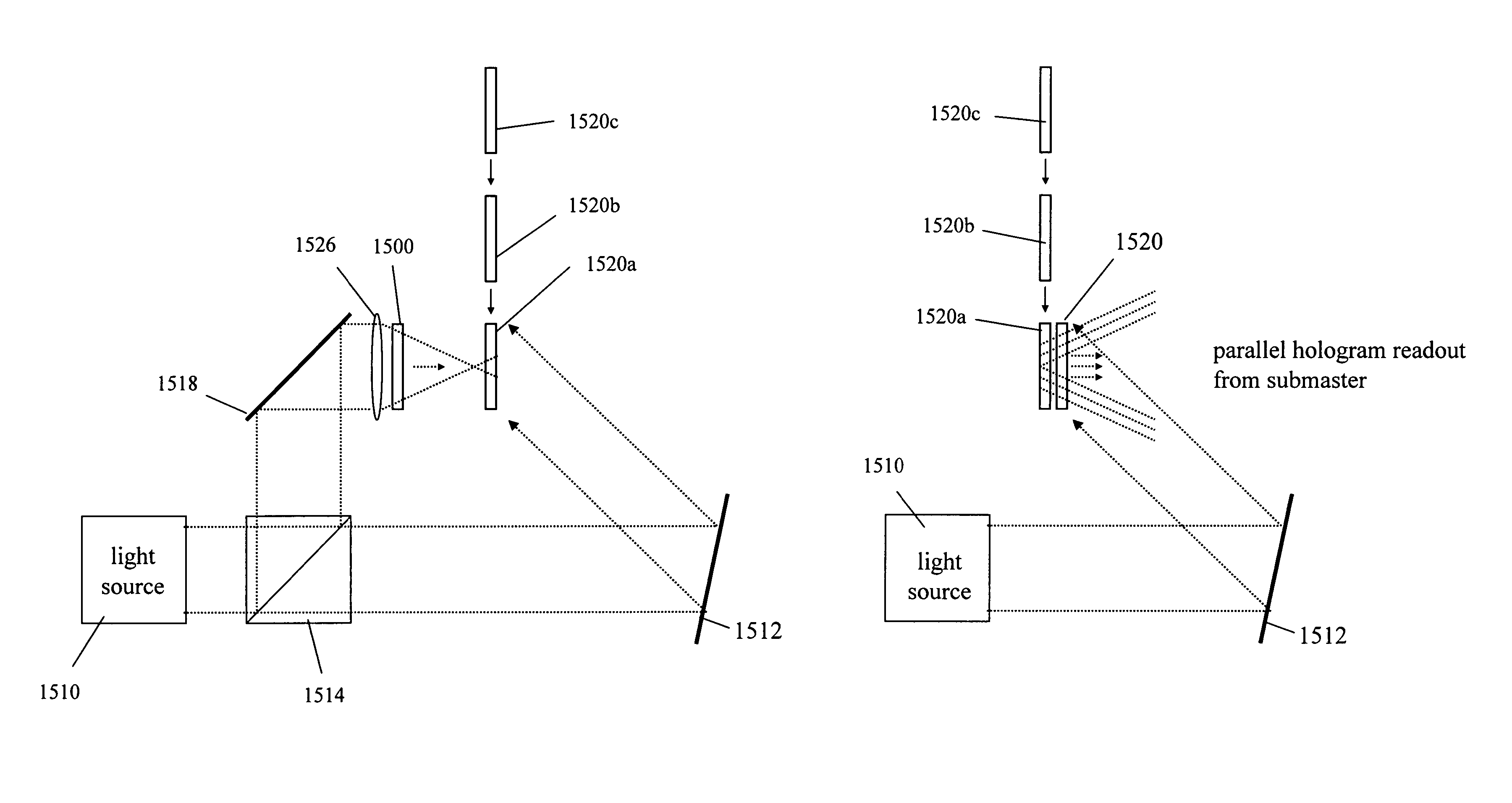

According to one aspect and example, a method for recording holographic media and/or holographic master data masks includes recording at least a first hologram or information layer with a first holographic medium (e.g., a “submaster”) and recording at least a second information layer with a second holographic medium (e.g., a second “submaster”). The first information layer and the second information layer from the first and second holographic media are then sequentially reconstructed and stored with a single holographic master medium (e.g., a “master”). The holographic master may then be used to record the stored first and second information layers into additional holographic media, for example, into HROM devices or the like.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2005 Application Filing Year
- G11B Class
- 3920 Applications Filed
- 1594 Patents Issued To-Date
- 40.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 71 Citation Count
- G11B Class
- 99.33 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 22, 2026 |
