Shutter frame lock
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 22, 2014
Grant Date -
Mar 21, 2013
app pub date -
Sep 19, 2011
filing date -
Sep 19, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

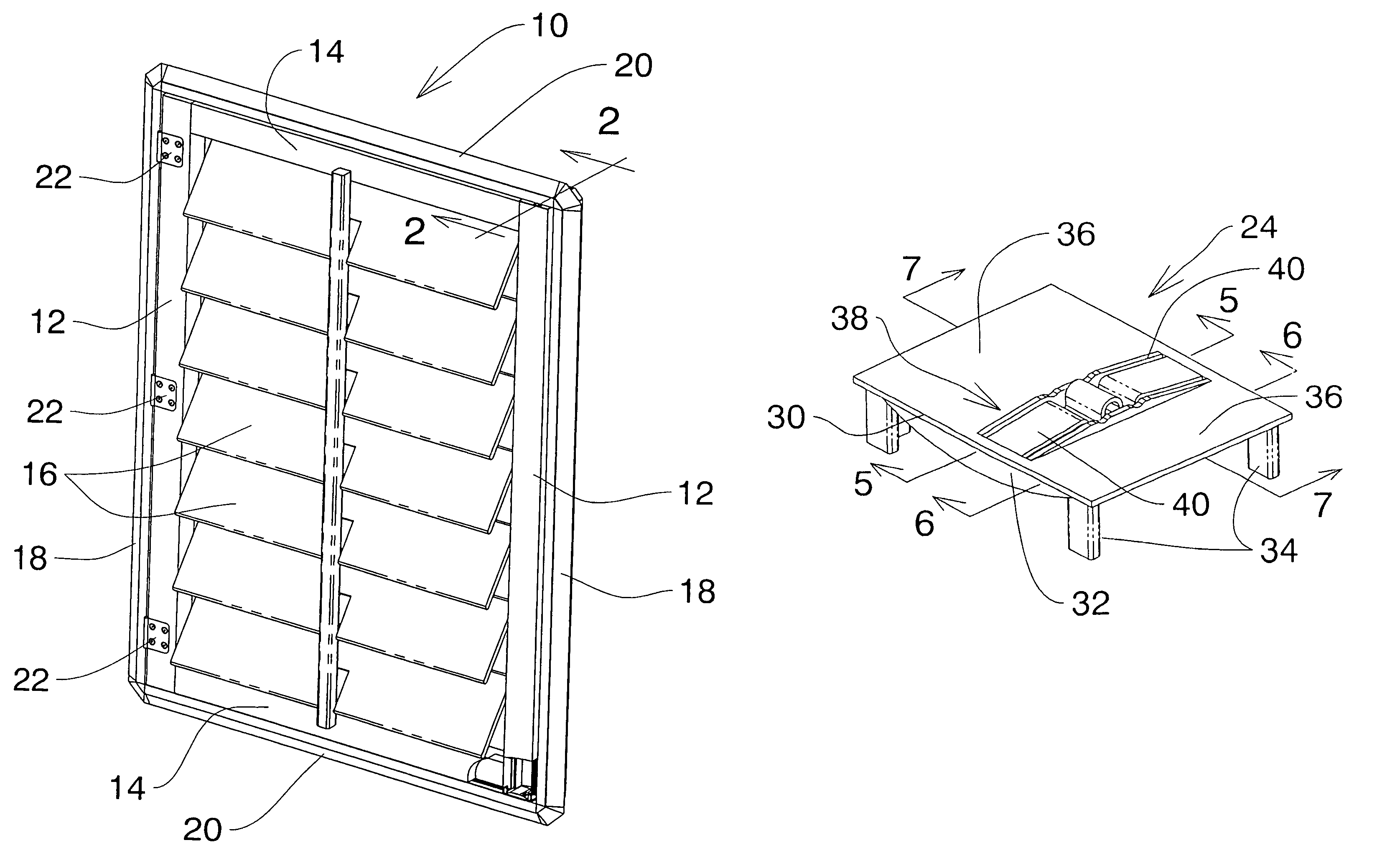

A shutter frame lock formed of thermoplastic material for incorporation between a shutter frame and a mounting frame and having a recess integrally formed in a first one of the frames, a one piece moulded locking member secured in a second one of the frames; in which the locking member defines a main body; attachment extensions on the main body engageable with the second frame; a flexible resilient lock strip integrally moulded with the main body, having a lock portion interlockable with the recess in the first frame, and integral flexible arms extending on either side of the lock portion, joining it to the main body.
