Telescopic structural support
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 22, 2014
Grant Date -
Oct 4, 2012
app pub date -
Dec 8, 2010
filing date -
Dec 14, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

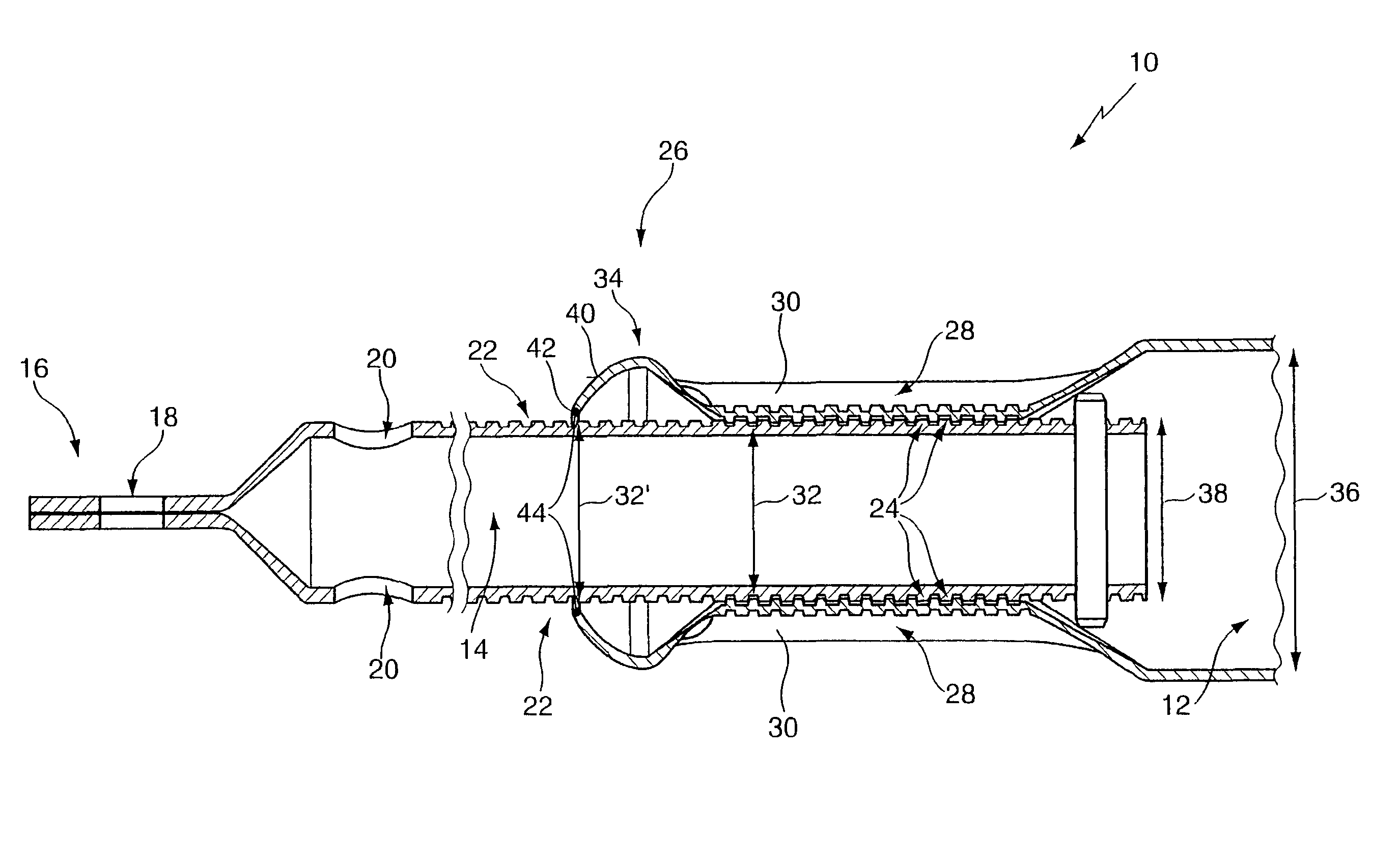

A telescopic push-pull prop 10 for the construction industry has an outer tube 12 and at least one threaded rod or inner tube 14. An outer thread 22 of the inner tube 14 engages with an inner thread 24 of the outer tube 12. The inner thread 24 of the outer tube 12 is arranged at an axial separation from a free end 26 of the outer tube 12. The inner thread 24 of the outer tube 12 is produced by an at least partially circumferential reduction of the outer tube 12 over a mandrel positioned in the outer tube 12, the mandrel having an outer thread. At its free end 26, the outer tube 12 has an edge section 34 with a pass-through cross-section 32′ that is reduced with respect to a nominal width 36 of the outer tube.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B66F Class
- 188 Applications Filed
- 123 Patents Issued To-Date
- 65.43 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B66F Class
- 0 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 22, 2026 |
