Cabin for a humvee vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 15, 2014
Issued Date -
N/A
app pub date -
Jul 15, 2013
filing date -
May 12, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

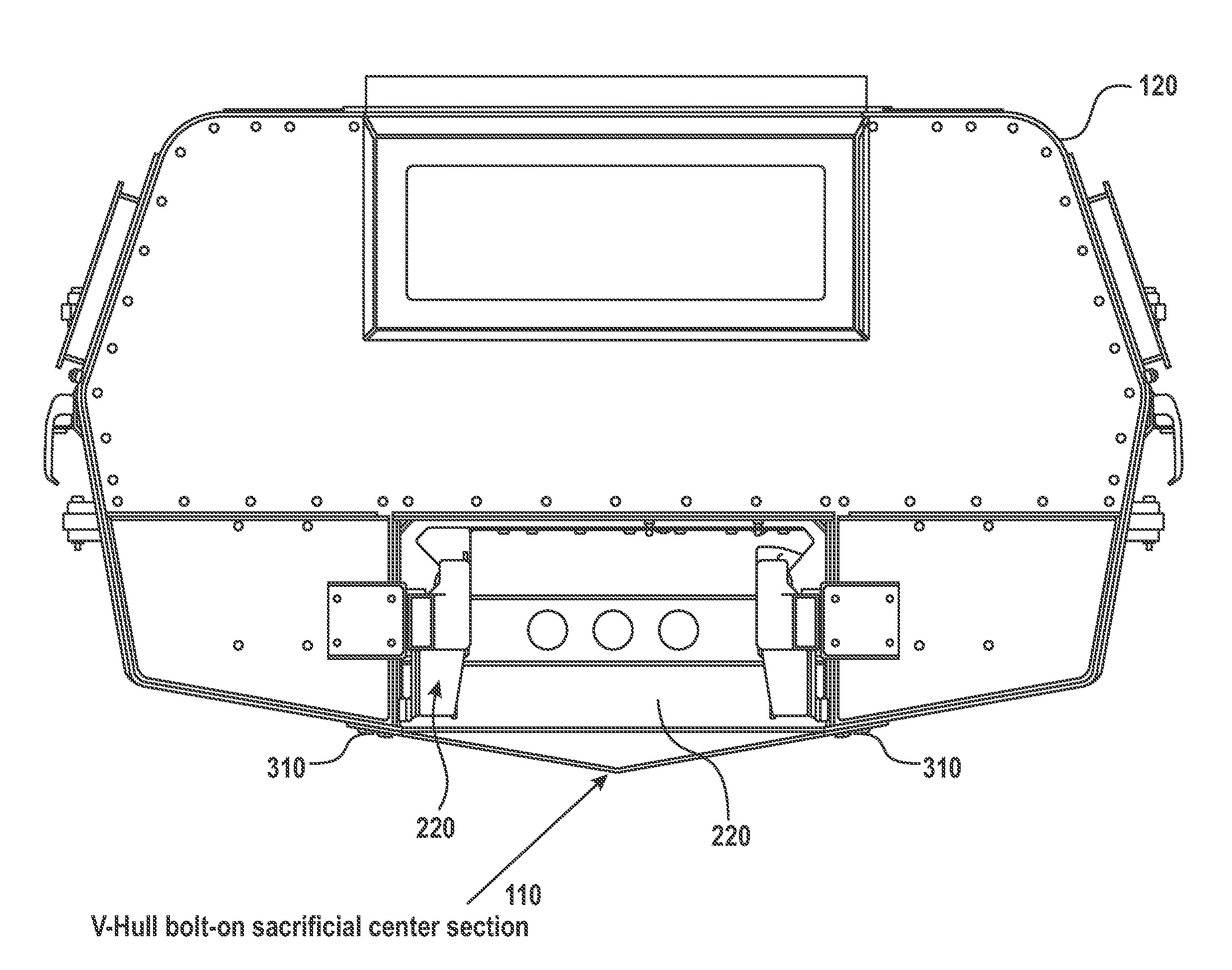

The present invention is directed to new and improved armor protection that can replace the existing crew cabin with a field replaceable armored crew compartment to be attached to the existing body of an HMMWV military vehicle to protect the military personnel within from explosive blasts, roll-over or collisions. In accordance with the concepts of the present invention, in order to provide additional protection to personnel in the HMMWV crew compartment, a sacrificial V shaped hull is designed to be attached onto the underside of the crew compartment over the HMMWV frame rails. In the event of an explosion underneath the HMMWV, the V shaped hull will shield the personnel inside the cabin.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F41H Class
- 251 Applications Filed
- 219 Patents Issued To-Date
- 87.26 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F41H Class
- 8.11 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 15, 2026 |
