Bill acceptor with improved bezel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 8, 2014
Issued Date -
N/A
app pub date -
Mar 6, 2009
filing date -
Mar 6, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

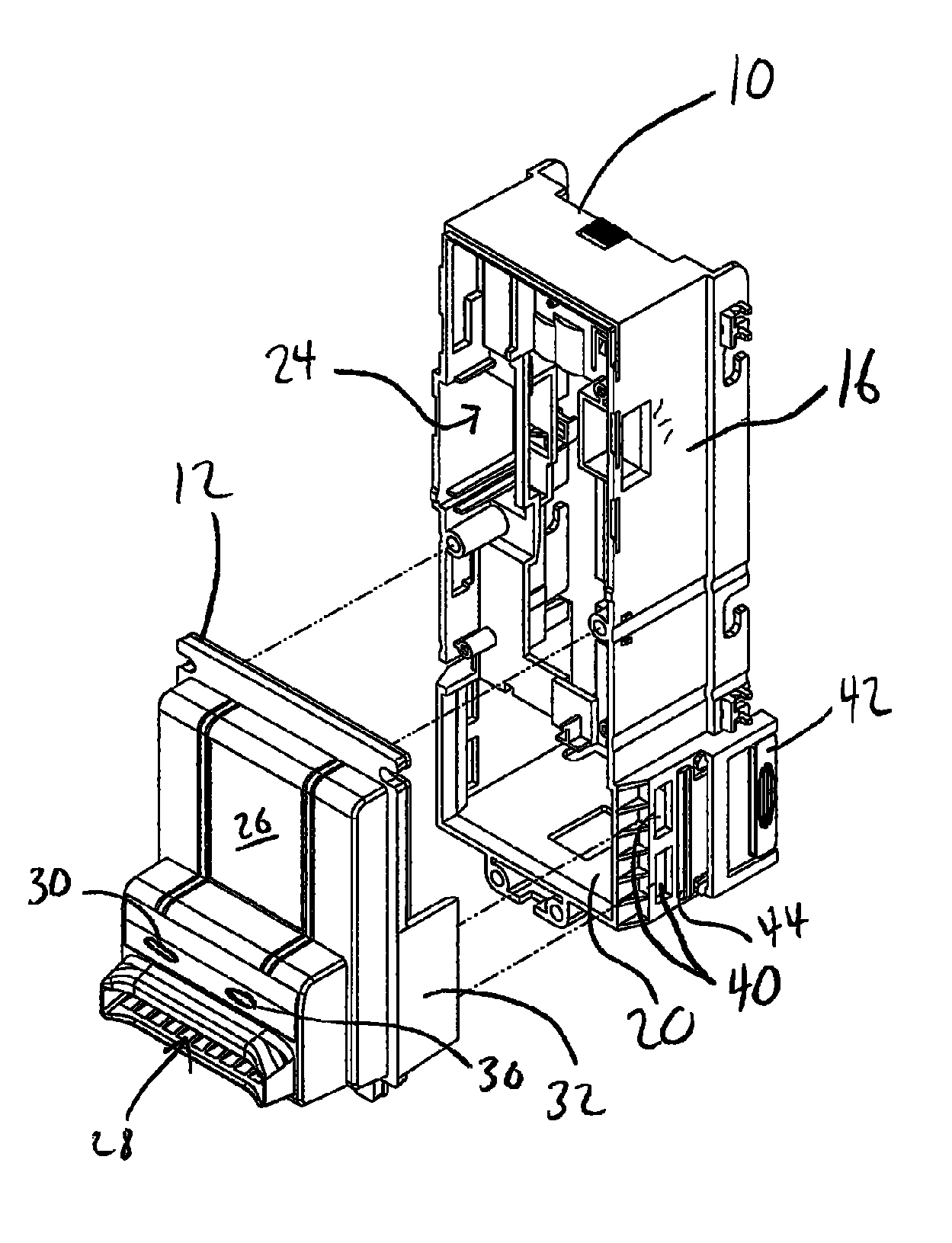

A bill validator for a vending machine including a bill validator housing having a pair of wing deflectors associated therewith in a sliding arrangement and a bezel having at least two indicator apertures in a faceplate portion thereof and further comprising a pair of opposing mounting wings, the mounting wings comprising retainer portions, the retainer portions comprising ramped surfaces and retainer surfaces on inner surfaces of the wings. The retainer portions cooperate with bezel mount apertures formed in the bill validator housing to retain the bezel upon the bill validator housing. The wing deflectors comprise tapered surfaces at an end adjacent to the mounting wings, the tapered surfaces when brought into contact with the mounting wings resiliently force the mounting wings outwardly to disengage the retainer portions from the bezel mount apertures to allow disassociation of the bezel from the bill validator housing.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06Q Class
- 0 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 8, 2026 |
