Power saw having a dust cleaning system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 8, 2014
Grant Date -
Jul 7, 2011
app pub date -
Jan 6, 2010
filing date -
Jan 6, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

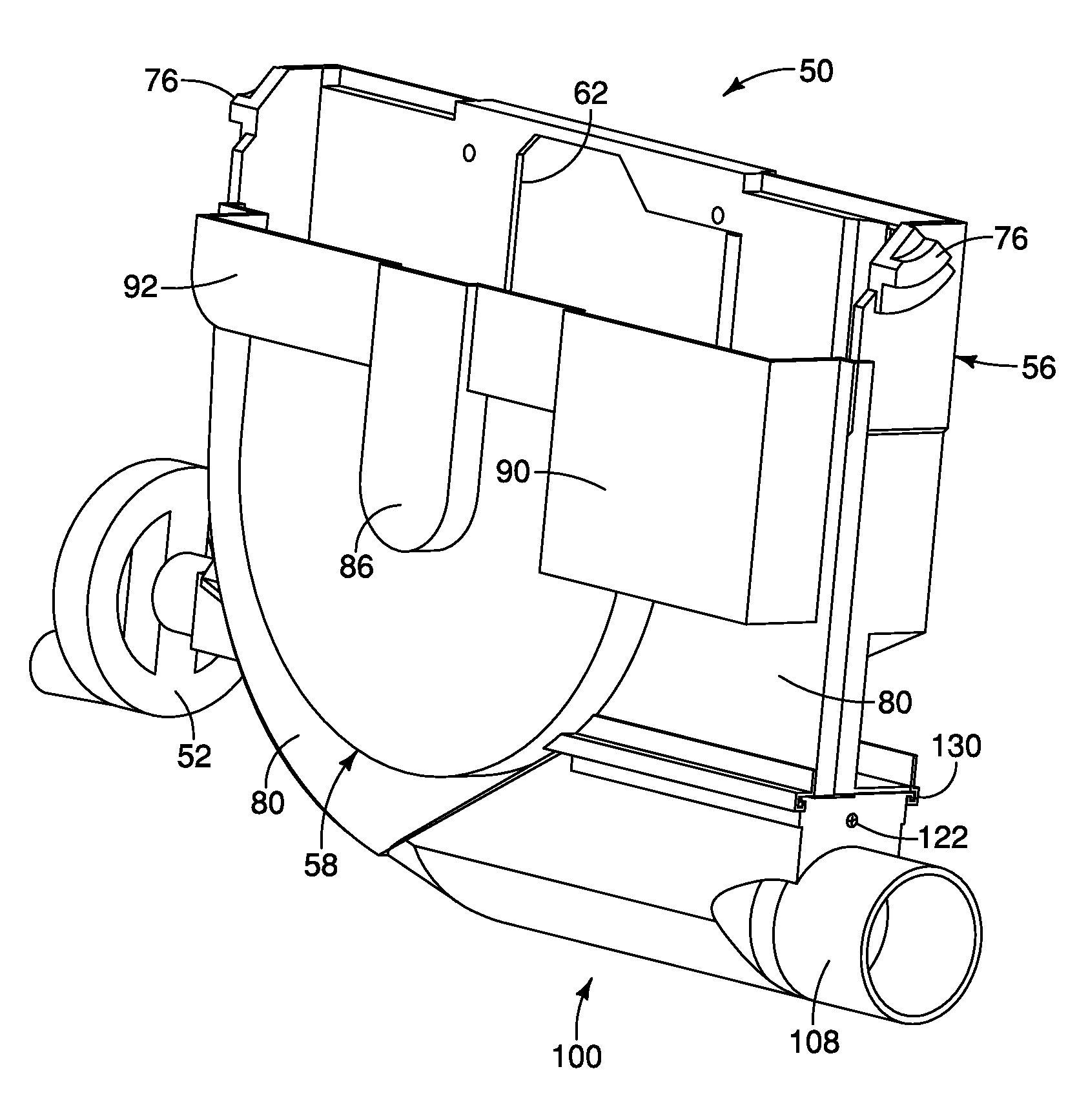

A table saw includes a base assembly having a base structure and side walls, a table top assembly top surface, and an undercarriage assembly including a motor. The undercarriage assembly is configured to adjust the vertical and angular position of a blade relative to the table top assembly, and includes an undercarriage frame and cover together defining a narrow housing configured and sized to enclose substantially all of an installed blade under the top surface. The housing has an upper pivot for adjusting the angular position of the blade and is configured to have the motor slidably mounted therein to adjust the vertical position of the blade. A removable port structure attached to a bottom portion of the undercarriage assembly has an outlet port at an outer end that is configured to be connected to a vacuum source.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B27B Class
- 95 Applications Filed
- 67 Patents Issued To-Date
- 70.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B27B Class
- 13.83 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 8, 2026 |
