Solids separator and method of treatment for biowaste
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 1, 2014
Grant Date -
Oct 25, 2012
app pub date -
Apr 11, 2012
filing date -
Apr 12, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

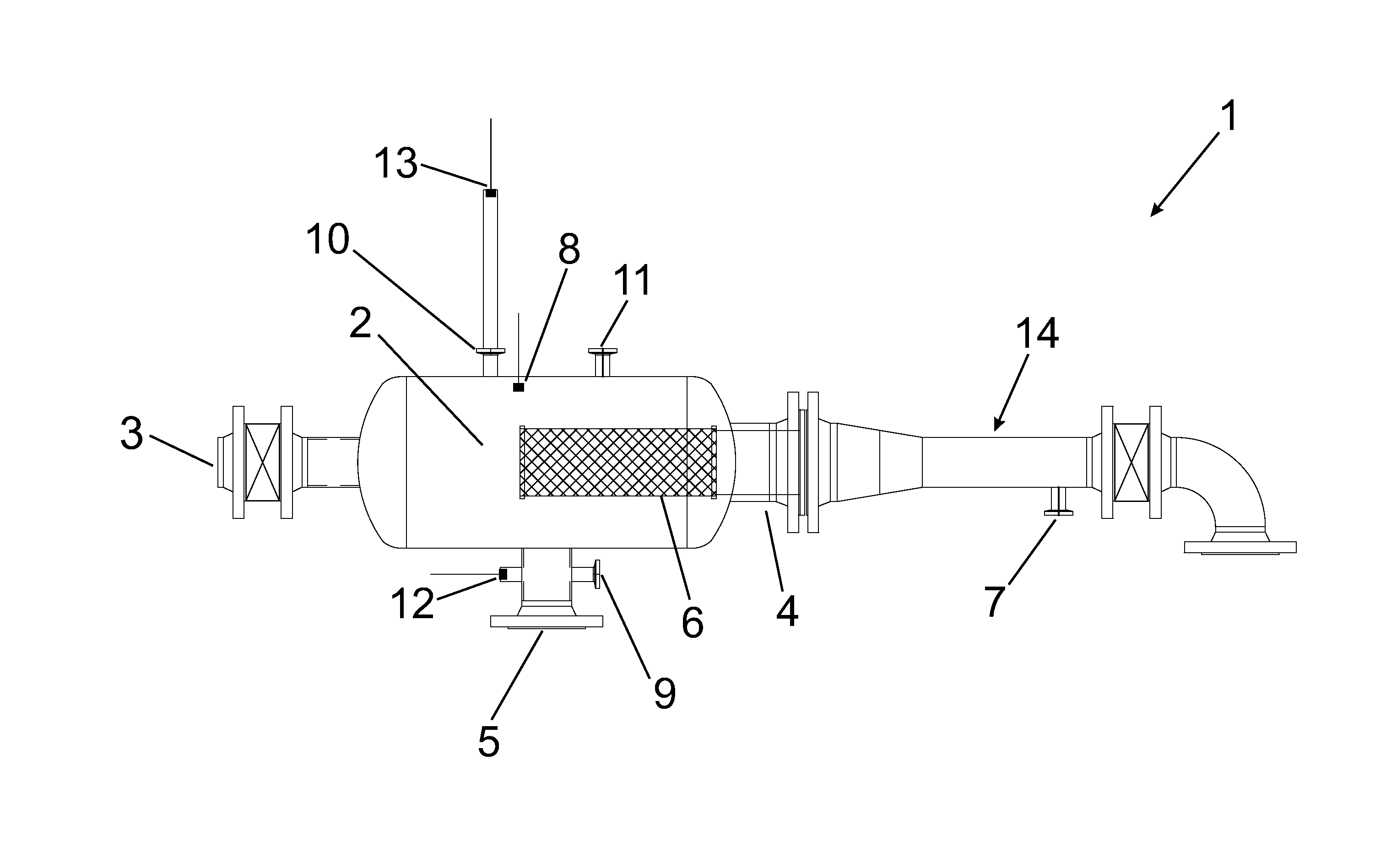

The invention relates to a device and a method for the separation of solids from a biowaste slurry before heat treatment, and for heat treatment of the separated solids. The device comprises a chamber with a main inlet port for feeding slurry, and outlet ports. A unit for separating solids is adapted to an outlet port so, that liquid leaving the chamber has passed through the separation unit. A second outlet port is provided directly from the chamber to allow removal, following sterilization, of solids collected in the chamber. The sterilization is secured by temperature monitoring at representative locations.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- A61L Class
- 1451 Applications Filed
- 1207 Patents Issued To-Date
- 83.19 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- A61L Class
- 9.88 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 1, 2026 |
