Silicon wafer and method for manufacturing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 24, 2014
Grant Date -
Jul 15, 2010
app pub date -
Mar 22, 2010
filing date -
Jul 22, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

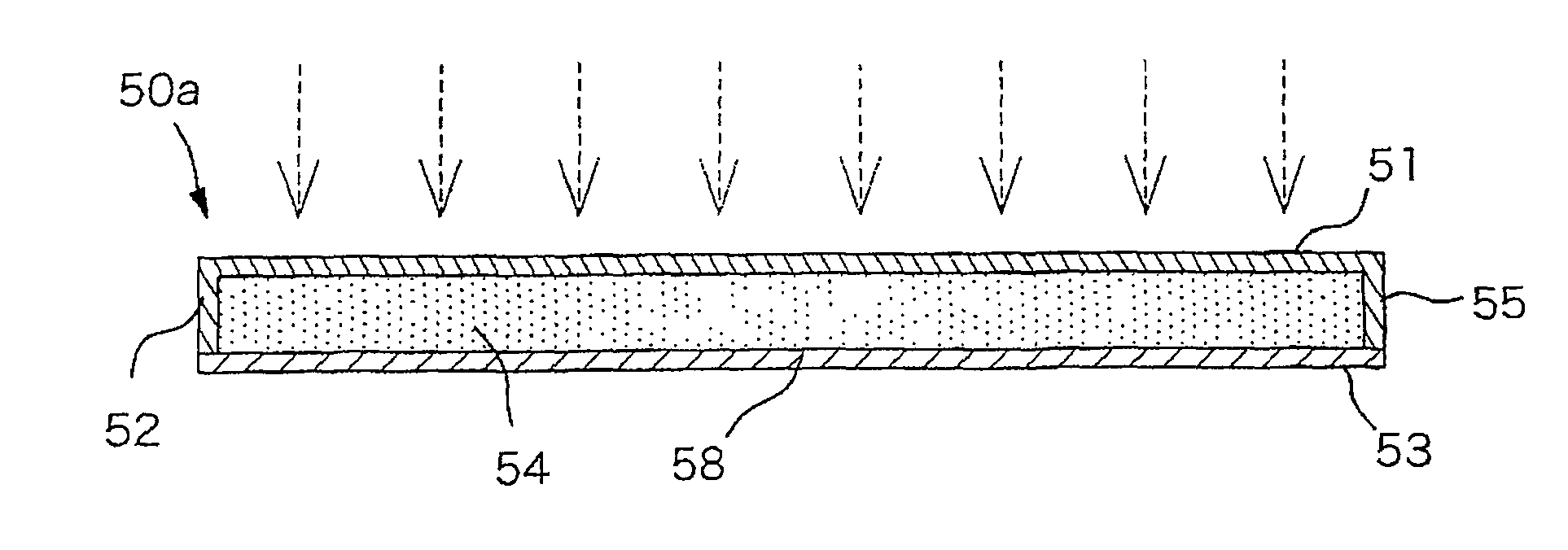

A method for manufacturing a silicon wafer includes a step of annealing a silicon wafer which is sliced from a silicon single crystal ingot, thereby forming a DZ layer in a first surface and in a second surface of the silicon wafer and a step of removing either a portion of the DZ layer in the first surface or a portion of the DZ layer in the second surface.
