Regulation of wavelength shift and perceived color of solid state lighting with temperature variation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 10, 2014
Grant Date -
Dec 20, 2012
app pub date -
Aug 31, 2012
filing date -
Sep 21, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

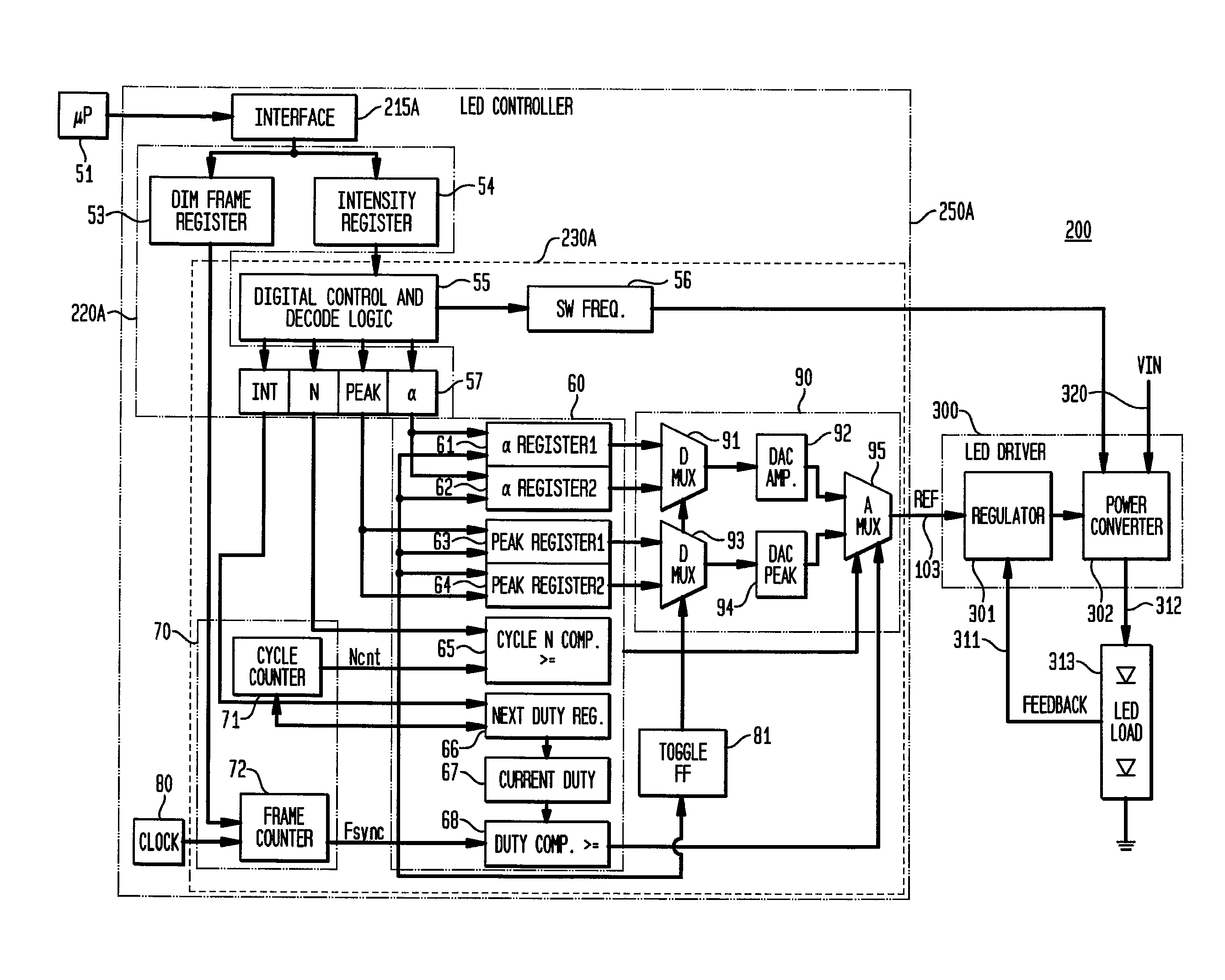

Representative embodiments of the disclosure provide a system, apparatus, and method of controlling an intensity and spectrum of light emitted from a solid state lighting system. The solid state lighting system has a first emitted spectrum at full intensity and at a selected temperature, with a first electrical biasing for the solid state lighting system producing a first wavelength shift, and a second electrical biasing for the solid state lighting system producing a second, opposing wavelength shift. Representative embodiments provide for receiving information designating a selected intensity level or a selected temperature and providing a combined first electrical biasing and second electrical biasing to the solid state lighting system to generate emitted light having the selected intensity level and having a second emitted spectrum within a predetermined variance of the first emitted spectrum over a predetermined range of temperatures.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- G05F Class
- 1366 Applications Filed
- 870 Patents Issued To-Date
- 63.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G05F Class
- 6.13 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 10, 2025 |
