Marine barrier gate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 3, 2014
Grant Date -
May 2, 2013
app pub date -
Aug 29, 2012
filing date -
Sep 1, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

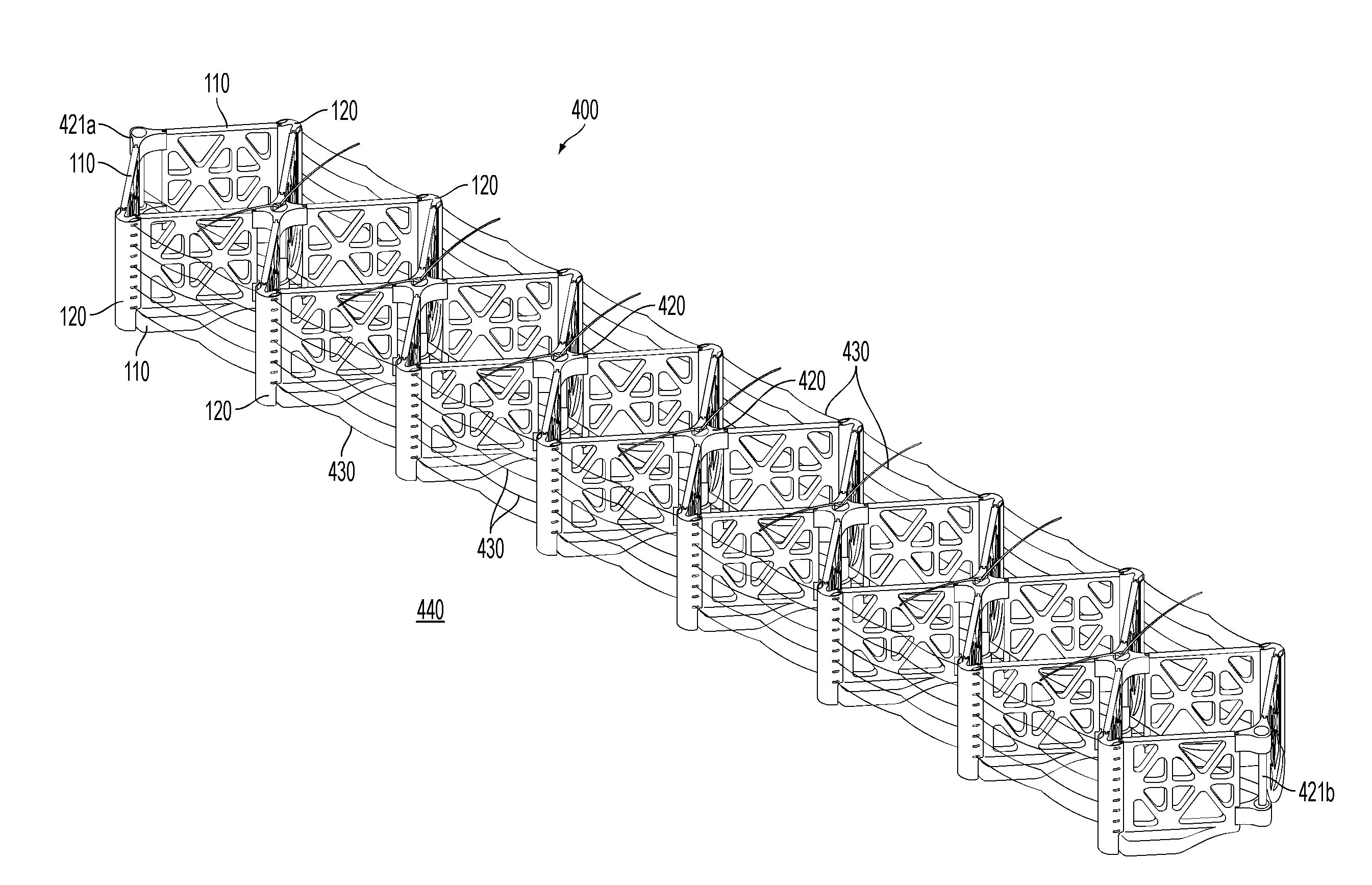

A marine barrier gate includes a pleated row of buoyant panels movable between an expanded position and a retracted position, where the panels are substantially parallel. A first buoy is attached to a first end of the panel row, and a second buoy is remote from the panels when the panels are in the retracted position. The second buoy has a tow winch and cable attached to a second end opposite the first end, for moving the panels from the retracted position to the expanded position. The first buoy comprises a catenary winch and cable movably engagable with the panels and attached to the second buoy. When the panels are in the retracted position, the catenary winch sets a length or tension of the catenary cable such that it absorbs catenary loads on the barrier when the panels are moved to the expanded position by the tow winch.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F41H Class
- 232 Applications Filed
- 199 Patents Issued To-Date
- 85.78 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F41H Class
- 8.11 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 3, 2025 |
