Manual thickness measurement gage
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 3, 2014
Issued Date -
N/A
app pub date -
Sep 20, 2011
filing date -
Sep 20, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

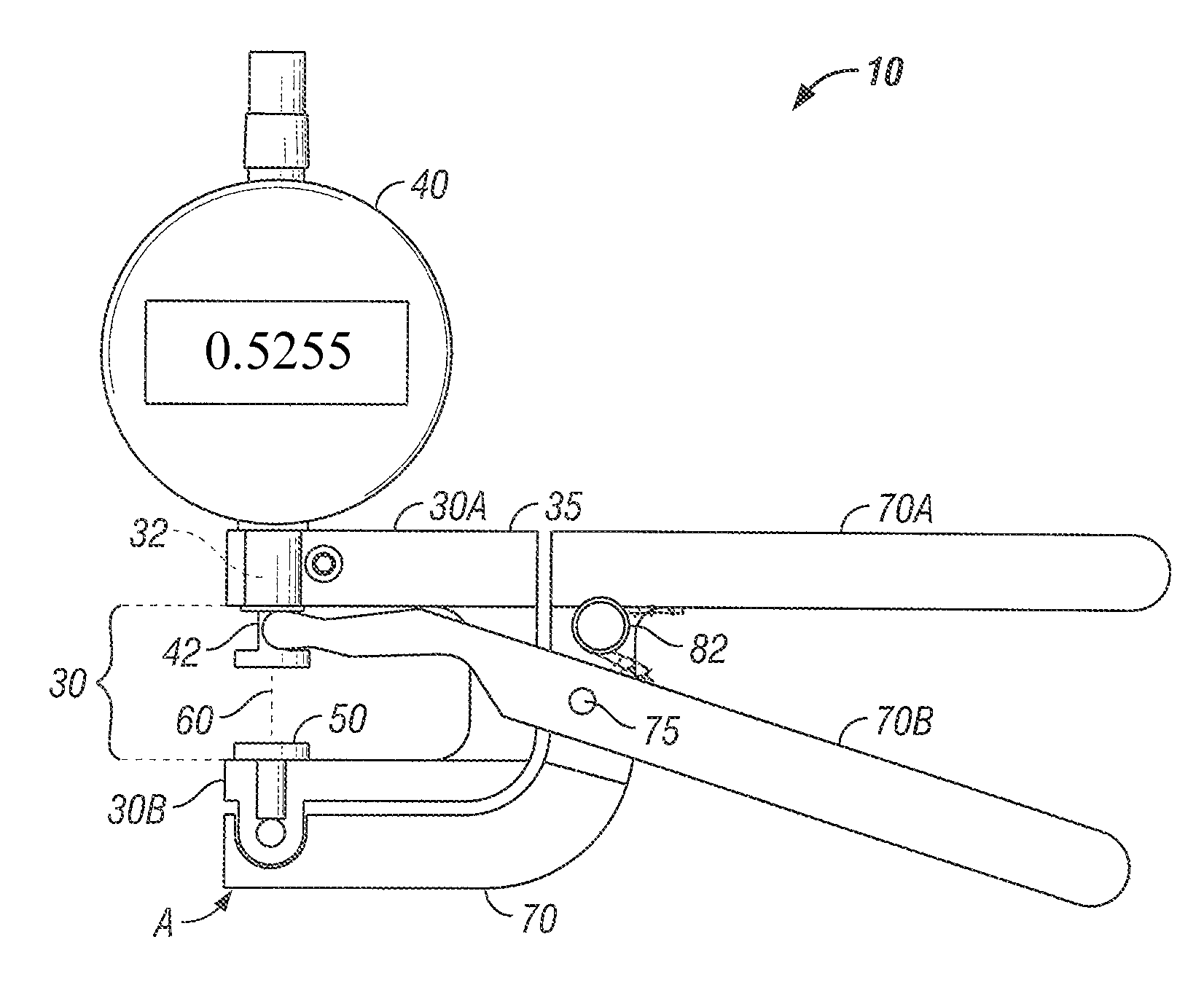

A manual gauge measures a specimen's thickness by pressing surface contactors against its opposing surfaces. A rigid C-frame has upper and lower jaws providing a means for engaging a specimen and for gauging its thickness using a linear probe that is caused to move linearly between the jaws by a handle assembly. The handle assembly is joined with the C-frame at a point that is co-linear with a force vector of the probe against a workpiece resting on one of the jaws. The force of the probe is transmitted through the specimen to the jaw. The handle leverages from this jaw so that there is no force applied between the jaws thereby avoiding error due to the varying hand pressure by the operator and the resultant strain in the C-frame during measurements.
