Speech analyzer detecting pitch frequency, speech analyzing method, and speech analyzing program
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 27, 2014
Grant Date -
Aug 20, 2009
app pub date -
Jun 2, 2006
filing date -
Jun 9, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

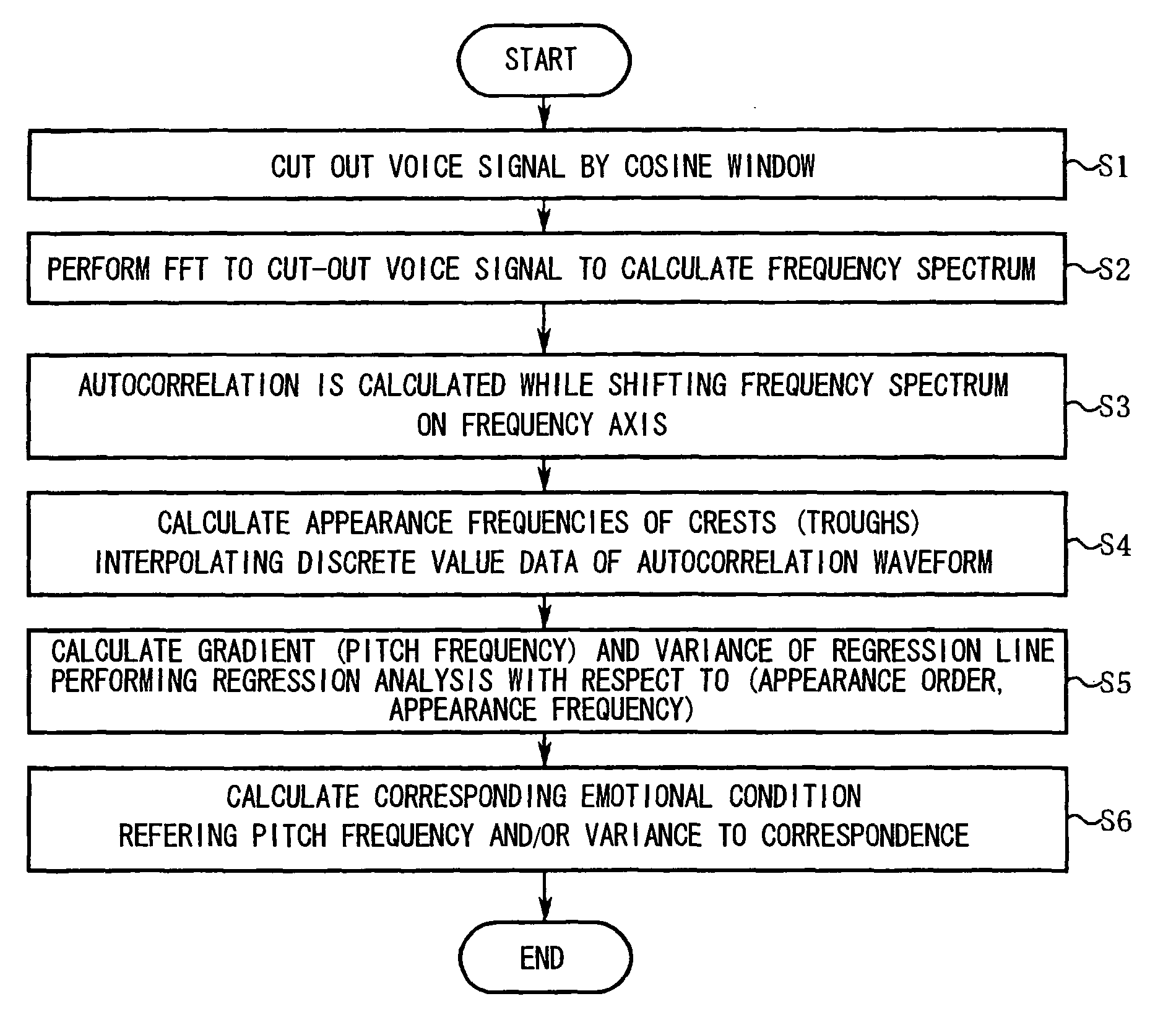

A speech analyzer includes a speech acquiring section, a frequency converting section, an autocorrelation section, and a pitch detection section. The frequency converting section converts the speech signal acquired by the speech acquiring section into a frequency spectrum. The autocorrelation section determines an autocorrelation waveform by shifting the frequency spectrum along the frequency axis. The pitch detection section determines the pitch frequency from the distance between two local crests or troughs of the autocorrelation waveform.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- G10L Class
- 4.63 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 27, 2025 |
