Iron based powder composition
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 27, 2014
Grant Date -
Aug 30, 2012
app pub date -
Oct 26, 2010
filing date -
Oct 26, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

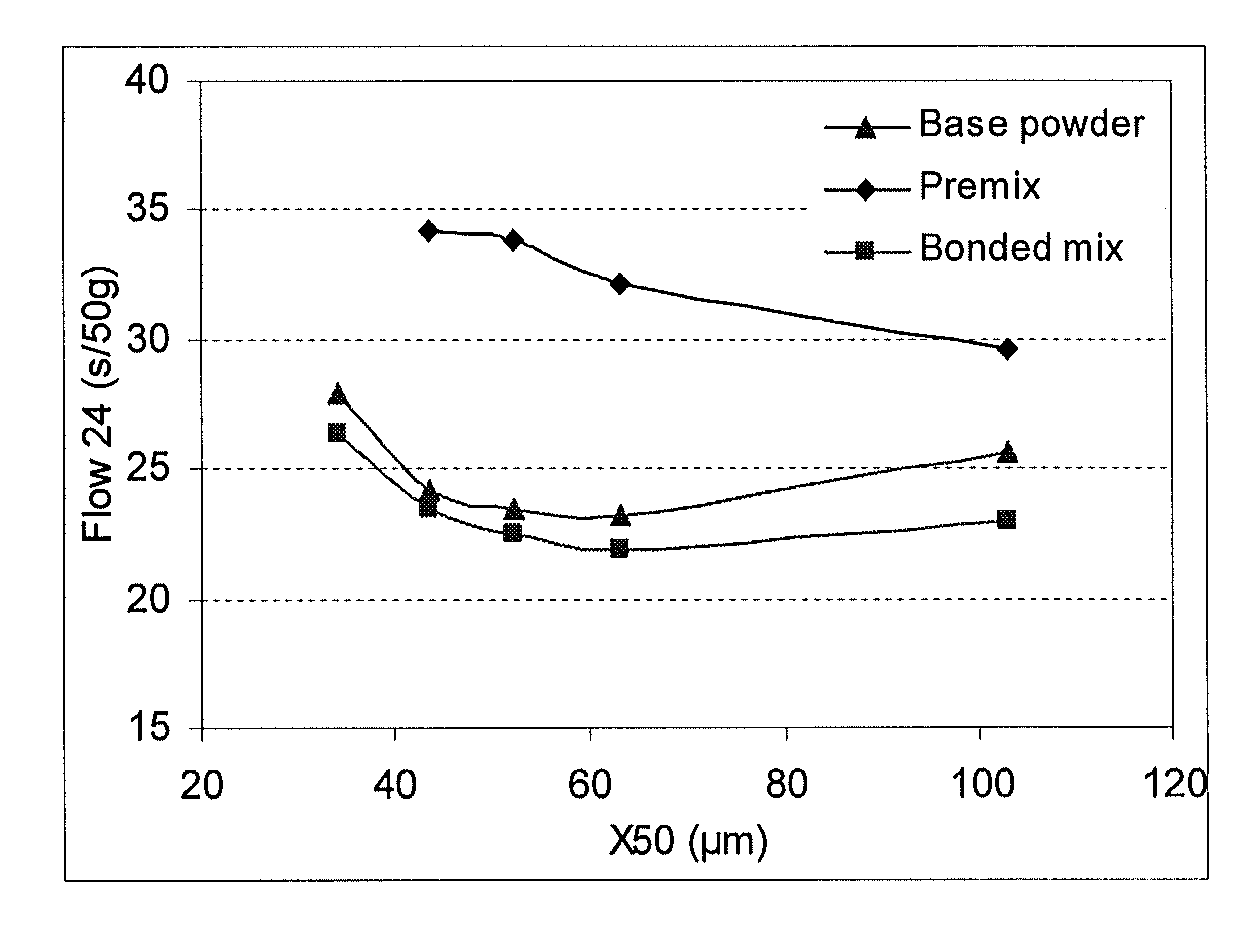

A bonded metallurgical powder composition including: an iron-based powder having a weight average particle size in the range of 20-60 μm, in an amount of at least 80 percent by weight of the composition, graphite powder in an amount between 0.15-1.0 percent by weight of the composition, a binding agent in an amount between 0.05-2.0 percent by weight of the composition, a flow agent in an amount between 0.001-0.2 percent by weight of the composition; wherein the graphite powder is bound to the iron-based powder particles by means of the binding agent, and wherein the powder composition has an apparent density of at least 3.10 g/cm3 and a hall flow rate of at most 30 s/50 g. Also, a method for producing a sintered component with improved strength from the inventive composition, as well as to a heat treated sintered component produced according to said method.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B22F Class
- 328 Applications Filed
- 243 Patents Issued To-Date
- 74.09 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B22F Class
- 10.53 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 27, 2025 |
