Self-calibrating magnetic field monitor

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 8729891
SERIAL NO

13368219

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

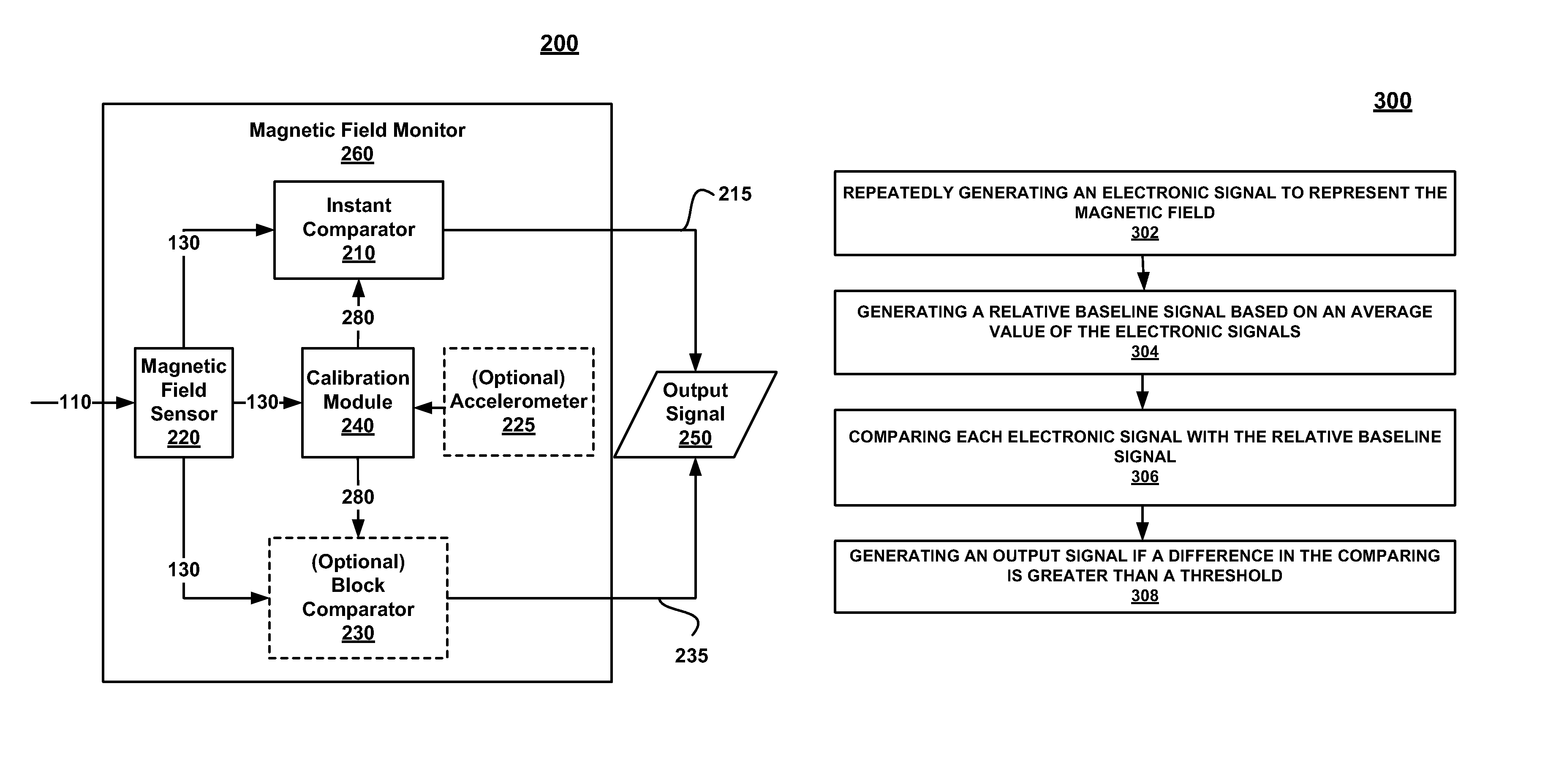

A self-calibrating magnetic field monitor is disclosed. In one embodiment, a magnetic field sensor repeatedly generates an electronic signal related to the magnetic field. In addition, a calibration module generates a relative baseline signal based on an average value of the electronic signals for a given time period. A comparator compares the electronic signal with the relative baseline signal and generating an output signal if a difference in the comparing is greater than or equal to a threshold.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
MIS SECURITY LLC1700 SUMMIT LAKE DRIVE TALLAHASSEE FL 32317

International Classification(s)

loading....
  • 2012 Application Filing Year
  • G01N Class
  • 8064 Applications Filed
  • 6361 Patents Issued To-Date
  • 78.89 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances201220132014201520162017201820192020202120222023202420250255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Roybal, Paul San Jose, US 5 54
Stephanson, Cory James La Selva Beach, US 8 71

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 6 Citation Count
  • G01N Class
  • 13.80 % this patent is cited more than
  • 11 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges48619794982251215936212221143901 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7071 - 8081 - 9091 - 100100 +0100200300400500600700800900100011001200130014001500160017001800190020002100

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
11.5 Year Payment $7400.00 $3700.00 $1850.00 Nov 20, 2025
