Six-way adjustable push latch
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 20, 2014
Issued Date -
N/A
app pub date -
Aug 8, 2011
filing date -
Aug 8, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

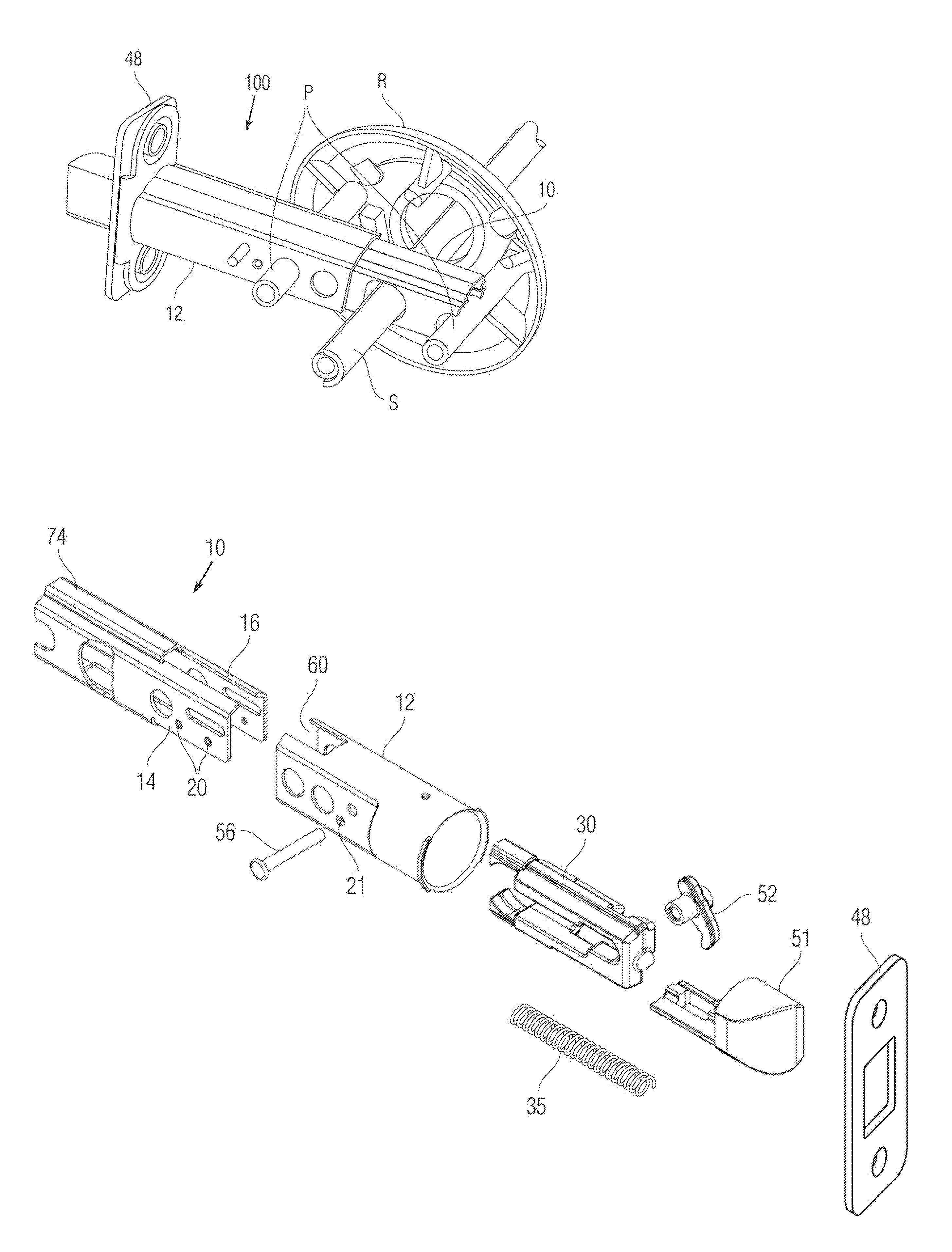

A latch assembly for insertion into an edge of a door and adjustable for actuation by a half-round spindle at either a first backset or a second backset. The latch has an inner casing non-rotatably received within an outer casing and slideable along an axis. The inner casing is provided with a transverse void substantially perpendicular to the sliding axis and is slideable between a first position in which the transverse void is aligned at the first backset and a second position is which the transverse void is aligned at the second backset. A slide within the casing is, without adjustment, engageable by the half-round spindle at either backset. A cam is rotatably mounted within the casing and engaged to the slide and to a bolt also within the casing. The bolt is slideably retractable into the casing by rotation of the cam in response to sliding of the slide. A spring biases the bolt to an extended position extend out from the casing.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2011 Application Filing Year
- E05C Class
- 249 Applications Filed
- 189 Patents Issued To-Date
- 75.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E05C Class
- 0 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 20, 2025 |
