Golf bag cart
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 13, 2014
Grant Date -
Oct 18, 2012
app pub date -
Jun 18, 2012
filing date -
Oct 9, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

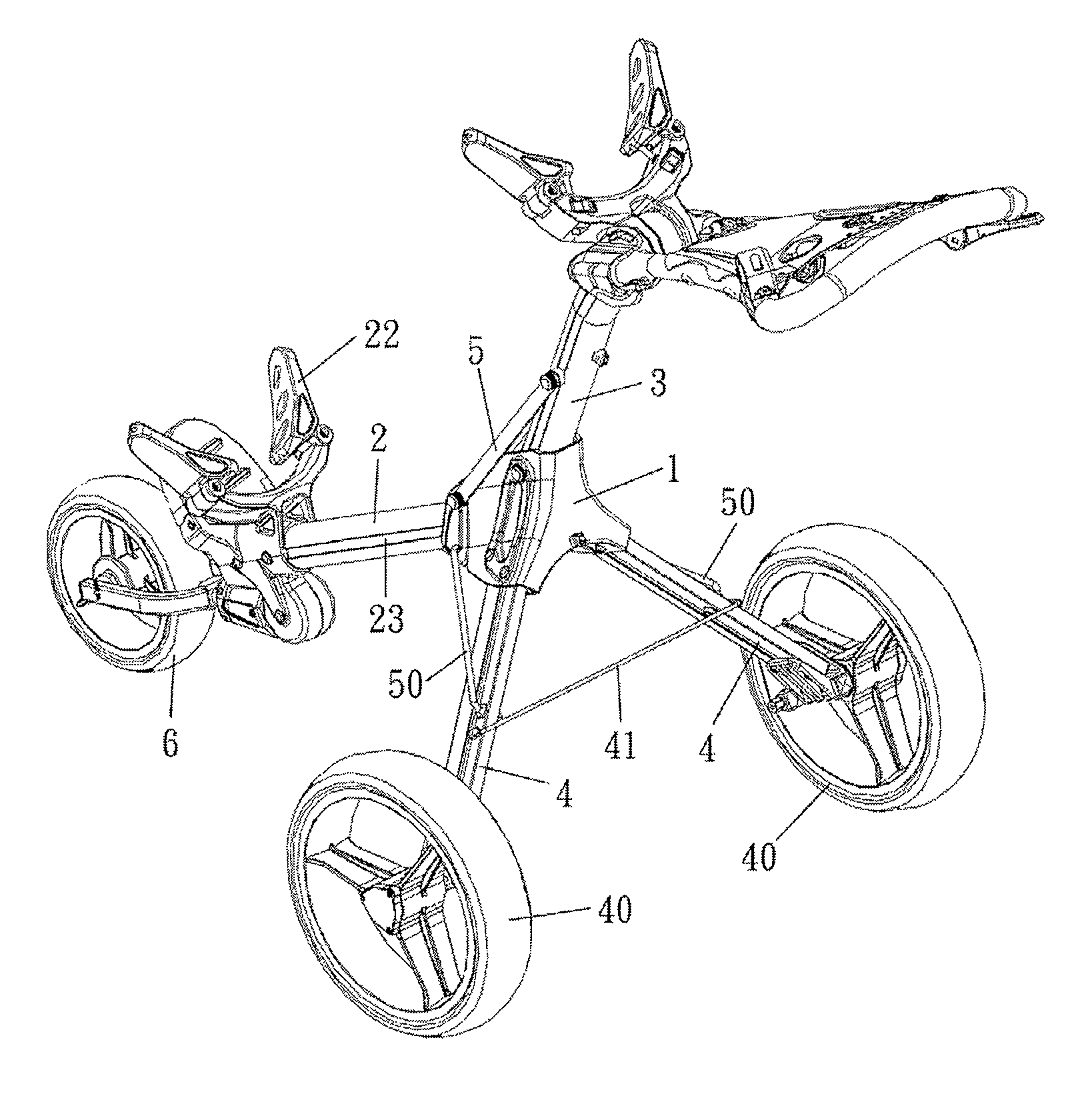

The golf bag cart includes a central base, a bottom cart stand, an upper cart stand, a wheel support, a first linkage, a second linkage, and a lock mechanism. The bottom cart stand has a top end fastened to the central base, a bottom end coupled with a front wheel, and a slider. The upper cart stand has a bottom end pivotally connected with the central base. Two wheel supports, disposed respectively and inclinedly at two sides of the central base, are joined with a steel wire to form a structure similar to a triangle. The first linkage connects the upper cart stand and the slider. The second linkage connects the slider and the wheel support. The lock mechanism mounted on the top end of the slider enables the upper cart stand and the bottom cart stand to lock with each other.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B62B Class
- 295 Applications Filed
- 253 Patents Issued To-Date
- 85.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- B62B Class
- 2.13 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 13, 2025 |
