Wiper with scrubber assembly that is raised and lowered
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 6, 2014
Grant Date -
Jul 18, 2013
app pub date -
Jan 17, 2012
filing date -
Jan 17, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

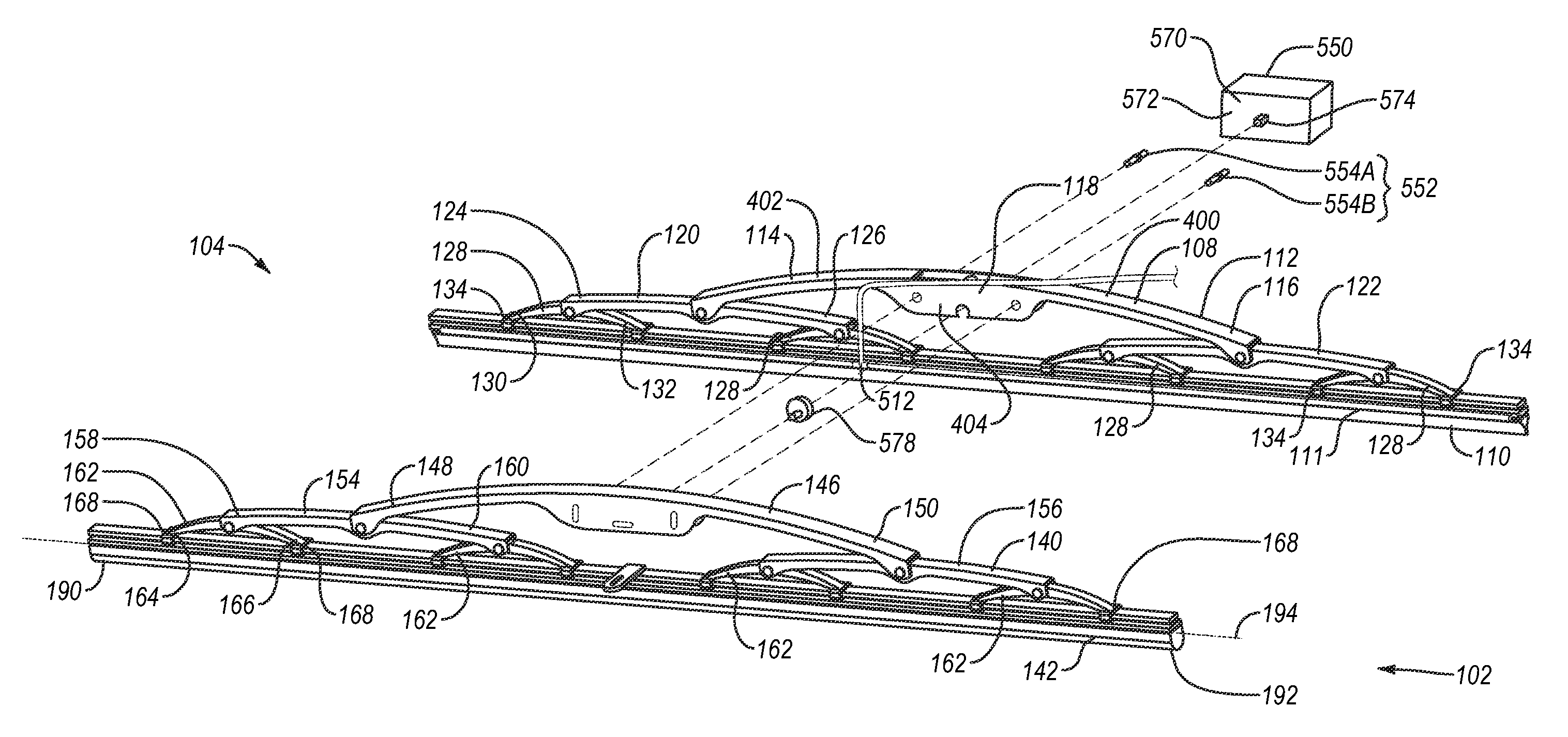

A windshield wiper includes a wiper assembly, a scrubber assembly, and an engaging assembly. The wiper assembly includes a wiper support structure and a wiper blade attached to the wiper support structure. The scrubber assembly includes a scrubber support structure, an elongated scrubber element and a motor. The scrubber element is movably attached to the scrubber support structure and extends between a first end and a spaced apart second end along a central longitudinal axis. The motor is mounted to the scrubber support structure and is engaged with the scrubber element to reciprocally move the scrubber element along the central longitudinal axis. The engaging assembly is coupled with the wiper assembly and the scrubber assembly and is configured to raise and lower the scrubber assembly with respect to the wiper assembly. Also, an automated method of using a windshield wiper.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B08B Class
- 14.63 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 6, 2025 |
