Raised and recessed sheet material, and vehicle panel and laminated structure using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 6, 2014
Grant Date -
Oct 31, 2013
app pub date -
Jun 27, 2013
filing date -
Jan 17, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

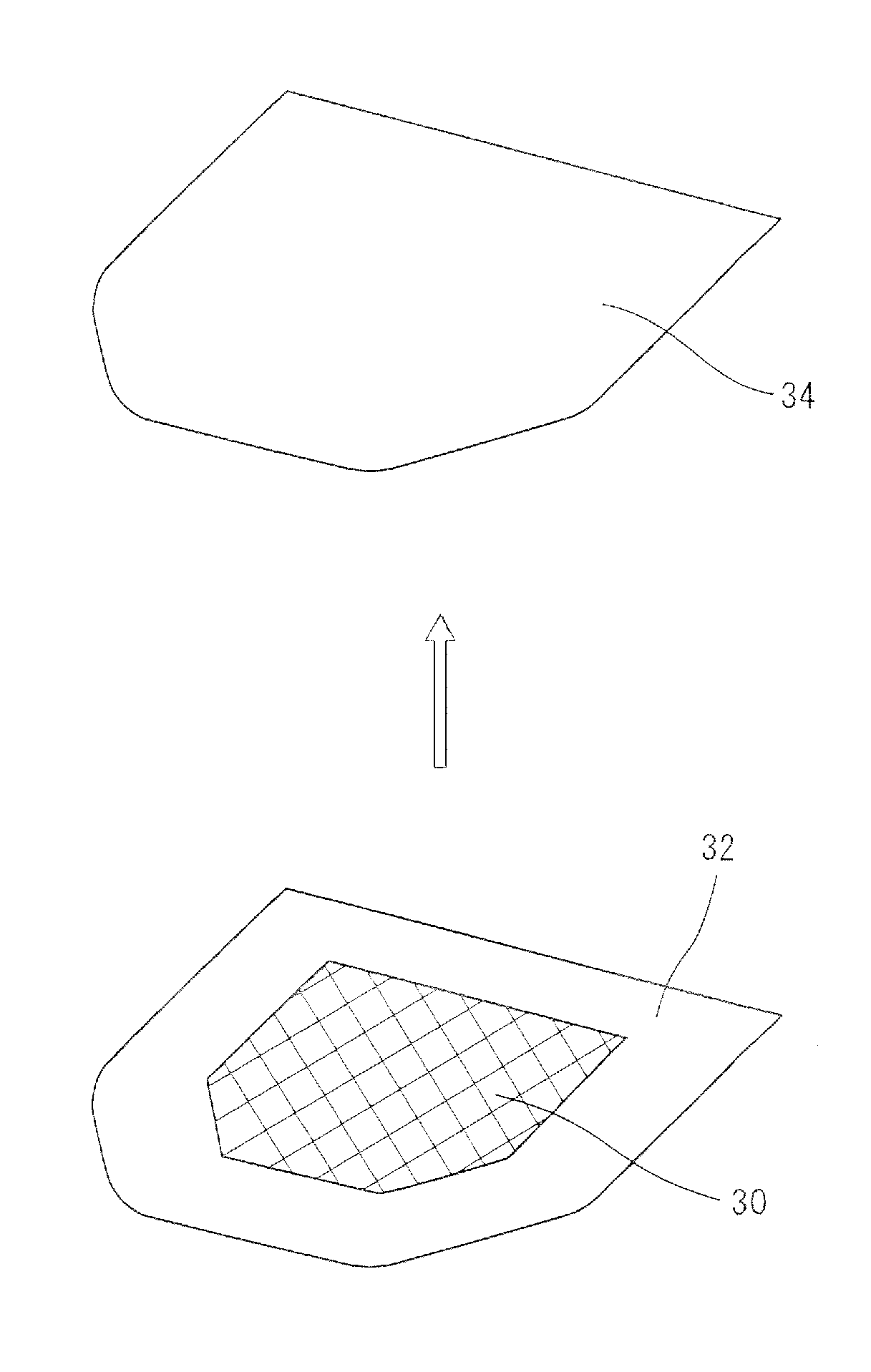

A raised and recessed sheet material having extremely high stiffness, and useful vehicle panel and laminated structure using the same. The surface of the sheet is formed by a plurality of squares arranged in two mutually perpendicular directions, and has a raised and recessed pattern. A basic configuration A, where first regions M and a Z-shaped second region N are formed in the square, and basic configurations B to D derived from the basic configuration A are butted together at their peripheral edges such that first regions M having those peripheral edges are butted together and the second regions N having those peripheral edges are butted together. The raised and recessed pattern is formed by upwardly raising the first regions M and downwardly recessing the second regions N, or upwardly raising or downwardly recessing either one or both of the first and second regions M and N.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP5722640 | Jan 17, 2011 |
| WO | A1 | WO2012098785 | Dec 12, 2011 |
International Classification(s)
- 2013 Application Filing Year
- B62D Class
- 1738 Applications Filed
- 1569 Patents Issued To-Date
- 90.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- B62D Class
- 6.62 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 6, 2025 |
