Dispenser with aligned spinner motor and valve assembly for dispensing flowable product
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 6, 2014
Issued Date -
N/A
app pub date -
Nov 4, 2010
filing date -
Nov 16, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

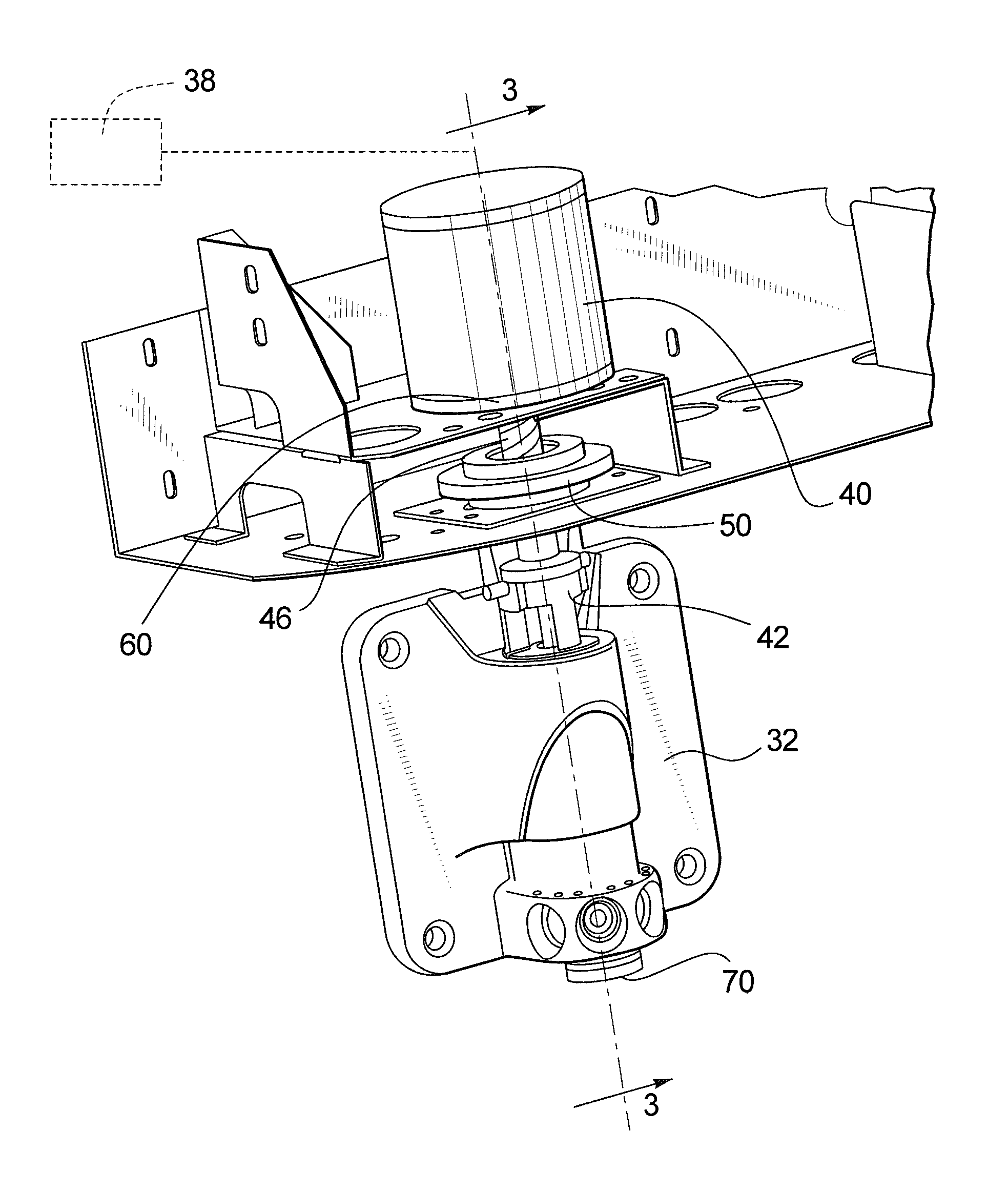

A dispenser (20) for consumable products uses a single motor (40) to both drive a spinner (75) to mix the product and move a valve assembly (42) to open and close the dispenser (20). The valve assembly (42), which is axially aligned with the motor shaft (44) may be opened and closed by fixing an externally threaded shaft (46) on a drive shaft (44) extending from the motor (40) and then rotatably mounting an internally threaded flywheel (50) on the threaded shaft (46). A valve stem (64) may then be fixedly attached to the flywheel (50). When the motor (40) energizes, the flywheel (50) and valve stem (64) axially translate along the nut (46) to open the valve assembly (42). When the motor (40) de-energizes, the flywheel (50) and valve stem (64) axially translate along the nut (46) in an opposite direction to close the valve assembly (42).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B67D Class
- 513 Applications Filed
- 272 Patents Issued To-Date
- 53.03 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- B67D Class
- 10.24 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 6, 2025 |
