Washing apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 29, 2014
Grant Date -
Jul 8, 2010
app pub date -
Jul 25, 2008
filing date -
Jul 27, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

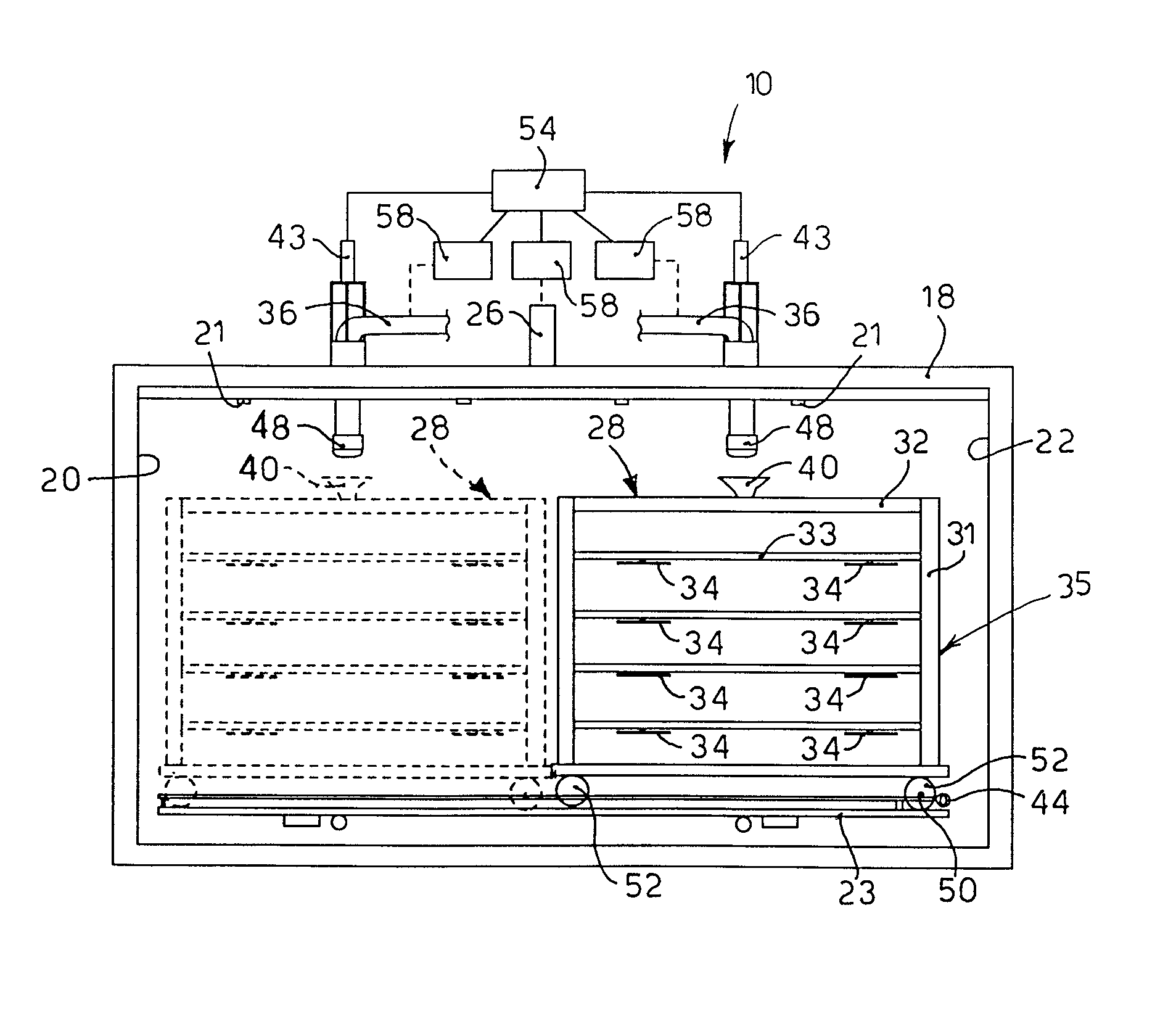

Washing apparatus includes a washing chamber having two lateral walls, bottom wall and upper wall, and at the front an aperture for inlet and/or outlet; a main distribution circuit to distribute treatment fluid inside the chamber; a trolley-type movement device, insertable into the chamber, including a frame to support objects to be subjected to a washing cycle in the chamber and on which treatment fluid distribution elements are mounted. The frame formed by hollow tubular elements functioning as a secondary distribution circuit of washing liquid towards the distribution elements; a connector element located on a frame upper part as a secondary distribution circuit delivery element; and a hydraulic connection pipe mounted on the upper wall, to connect hydraulically the main distribution circuit to the secondary distribution circuit connector element, selectively movable vertically between a first position connected to the connector element and a second position separate from the connector element.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2008 Application Filing Year
- A47L Class
- 467 Applications Filed
- 283 Patents Issued To-Date
- 60.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A47L Class
- 9.42 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 29, 2025 |
