Swirl-counter-swirl microjets for thermoacoustic instability suppression
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 29, 2014
Grant Date -
Jul 7, 2011
app pub date -
Nov 8, 2010
filing date -
Jan 5, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

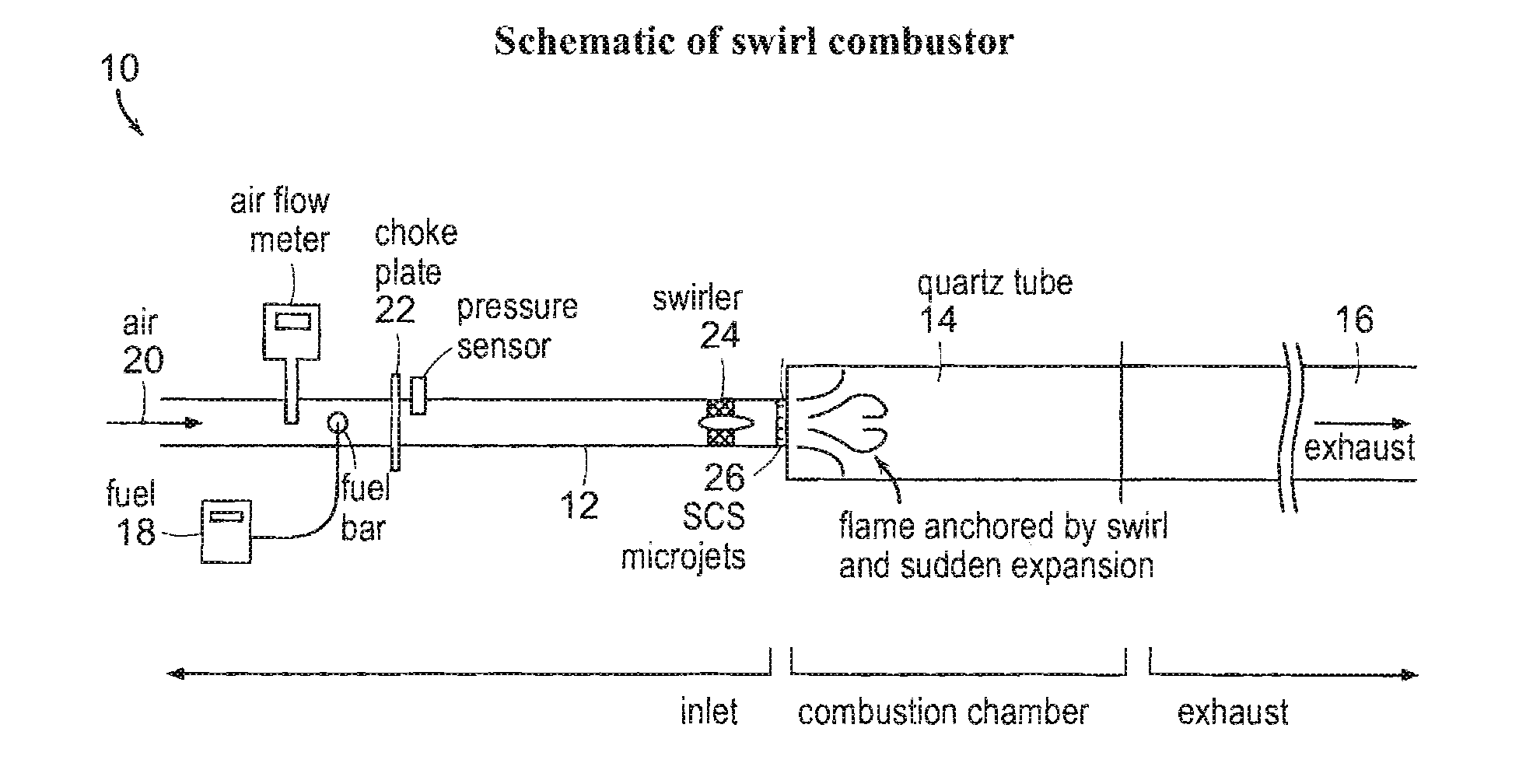

Combustor. The combustor includes an axially symmetric tube along with means for introducing fuel and air into the tube. A swirler is disposed within the tube to impart rotation in a first direction to the air/fuel mixture. A plurality of holes downstream of the swirler are disposed around the tube and offset at an angle relative to an inward normal to the tube wall. Air is injected through the offset holes to impart rotation to the air/fuel mixture in a second direction opposite to the first direction. A combustion chamber having a diameter larger than that of the tube receives and burns the air/fuel mixture from the tube.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A1 | WO2011084782 | Dec 21, 2010 |
International Classification(s)
- 2010 Application Filing Year
- F23M Class
- 34 Applications Filed
- 25 Patents Issued To-Date
- 73.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F23M Class
- 28.57 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 29, 2025 |
