Test device for the detection of the recovery effort by a secondary flight ordering actuator, and associated test method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 22, 2014
Grant Date -
Jun 9, 2011
app pub date -
Dec 8, 2010
filing date -
Dec 8, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

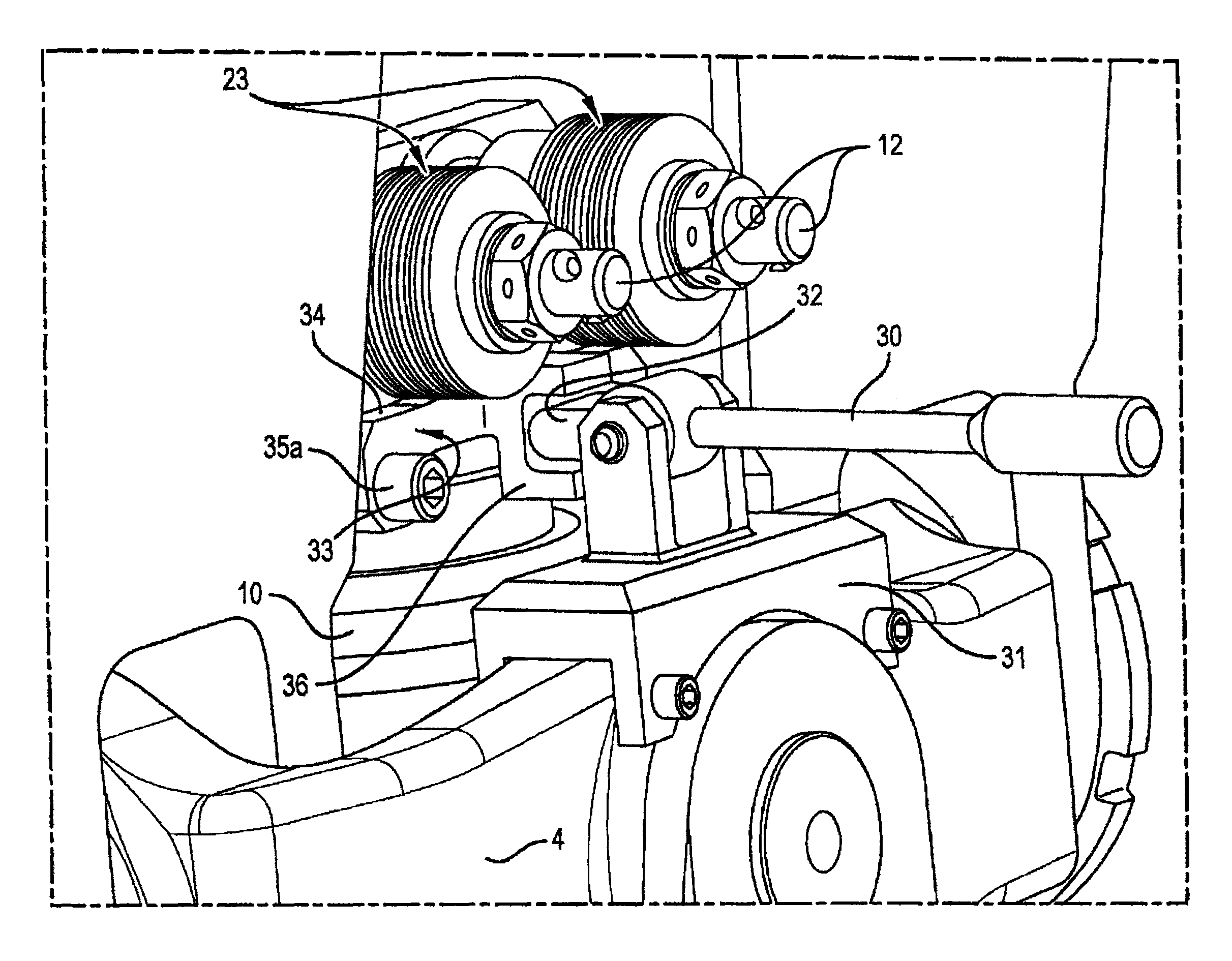

The disclosure relates to a device for testing means of detecting the loading of the secondary path of a flight control actuator of the type including a primary path and a secondary path able to take up the effort of the primary path in the event of a breakdown of the latter, wherein a tool is able to press against at least one zone of at least one element of the secondary path, as well as a lever arm which by tilting allows the tool to press against the zone so that it exerts a traction and/or compression force on the secondary path, the lever arm being mounted pivotingly on a support able to be fastened on a structure that is mechanically independent of the secondary path.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B64C Class
- 686 Applications Filed
- 521 Patents Issued To-Date
- 75.95 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- B64C Class
- 72.03 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 22, 2025 |
