Set of panels
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 22, 2014
Issued Date -
N/A
app pub date -
Mar 25, 2010
filing date -
Mar 25, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

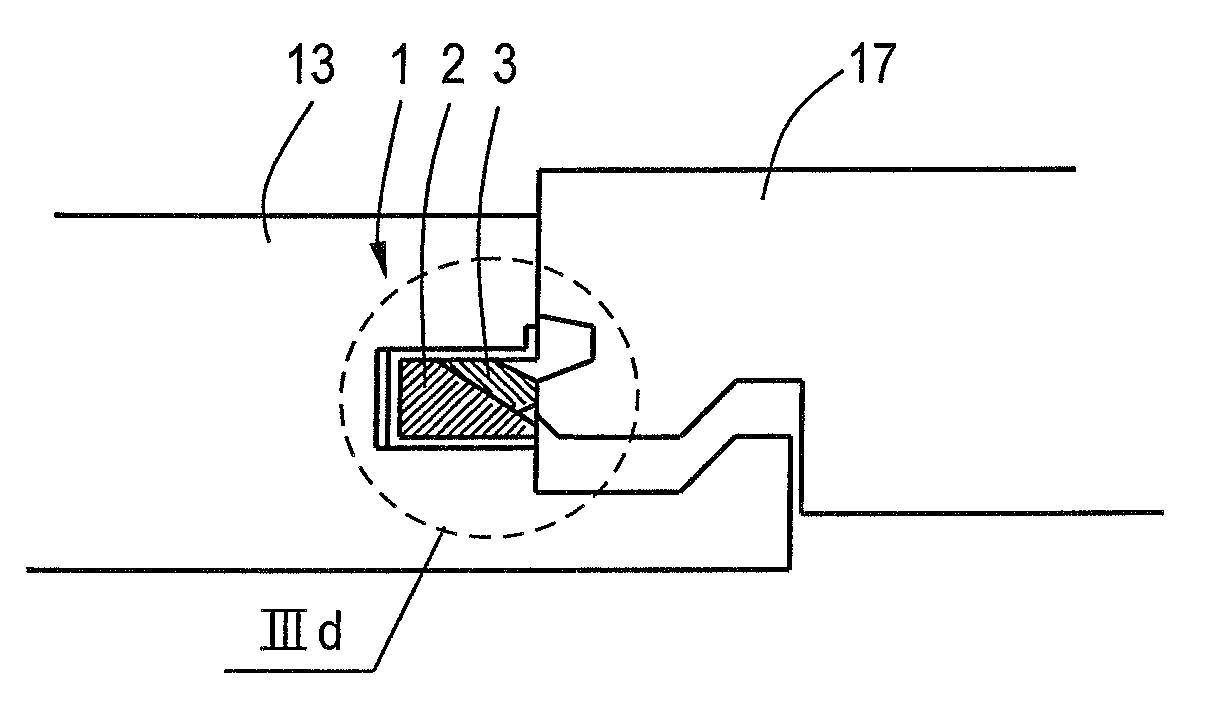

A set of panels comprises a first panel having a first edge including an undercut which accommodates a fastening member, and a second panel having a second edge including a locking region. The first and second edges are positioned adjacent to each other when the panels are fastened to each other by means of the fastening member. The fastening member comprises a displaceable activating portion and a locking portion which is displaceable with respect to the first panel upon displacement of the activating portion in opposite direction of the displacement of the activating portion such that the locking portion engages the locking region of the second panel when the panels are fastened to each other by means of the fastening member. The activating portion is intended to be contacted by the second panel upon moving the second panel and the first panel with respect to each other to a fastened condition and the locking portion is intended to fasten the first and second panels with respect to each other at least perpendicularly to the direction of displacement of the locking portion. The activating portion is spaced from the locking portion in a direction substantially parallel to the first edge.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 32 Citation Count
- E04B Class
- 95.78 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 22, 2025 |
