Destroying apparatus for electronic elements
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 1, 2014
Issued Date -
N/A
app pub date -
Jun 1, 2012
filing date -
Jun 1, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

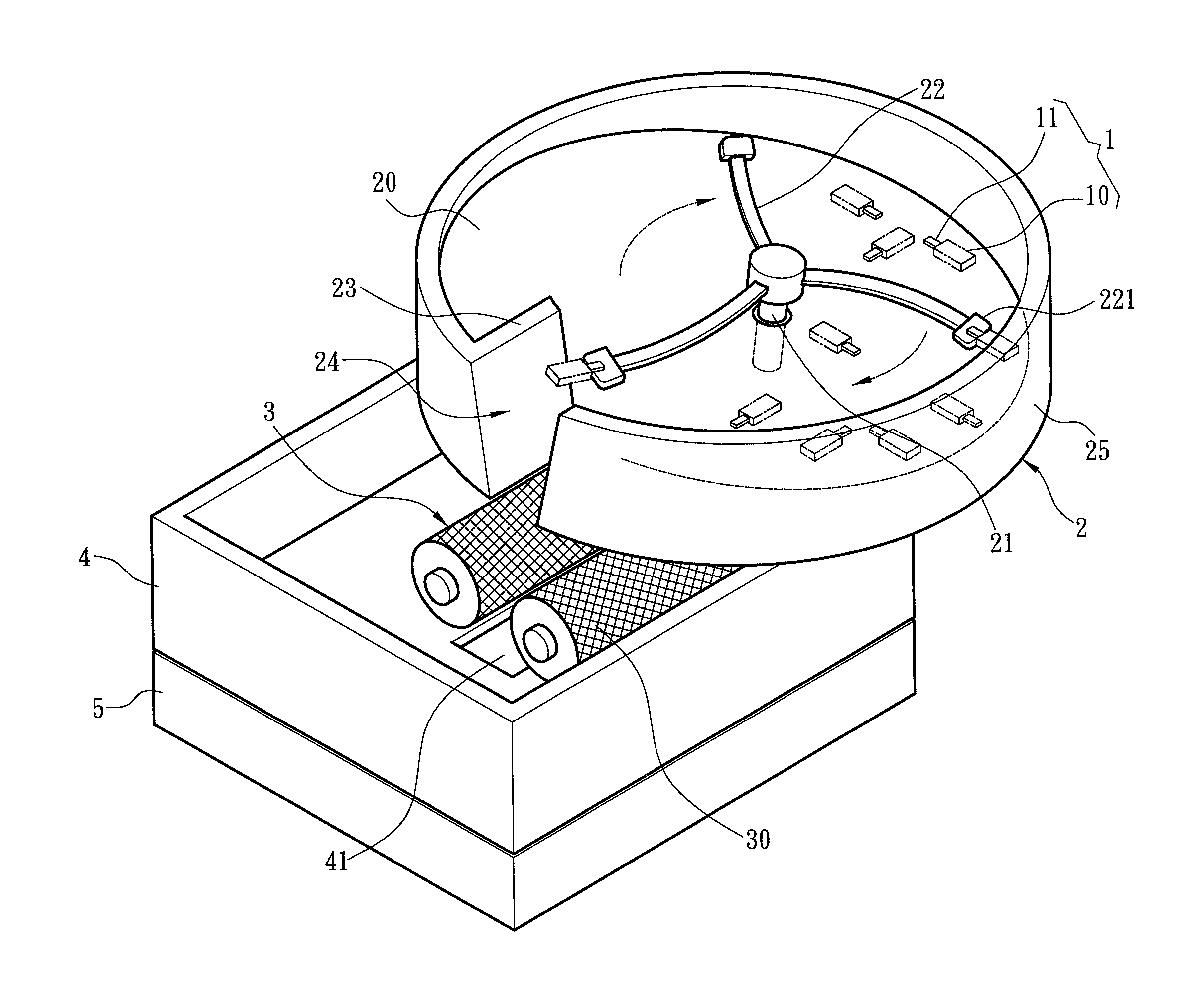

A destroying apparatus aims to destroy electronic elements with magnetic substance. The destroying apparatus includes a conveying unit and a destroying unit. The conveying unit includes a collection plane to hold a plurality of electronic elements, at least one picking arm spinning against the collection plane to form a conveying path, a barrier portion connecting to the collection plane to block the electronic elements on the conveying path, and a release passage corresponding to the barrier portion to allow the electronic elements to escape the conveying path. The picking arm includes a magnetic attraction portion to attract the magnetic substance on the conveying path. The destroying unit is located correspondingly to the release passage and includes a plurality of cutting elements and a cutting path between the cutting elements to communicate with the release passage.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B02B Class
- 12 Applications Filed
- 12 Patents Issued To-Date
- 100 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B02B Class
- 0 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 1, 2025 |
