Hybrid equalization system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 25, 2014
Grant Date -
Mar 1, 2012
app pub date -
Jan 4, 2011
filing date -
Aug 26, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

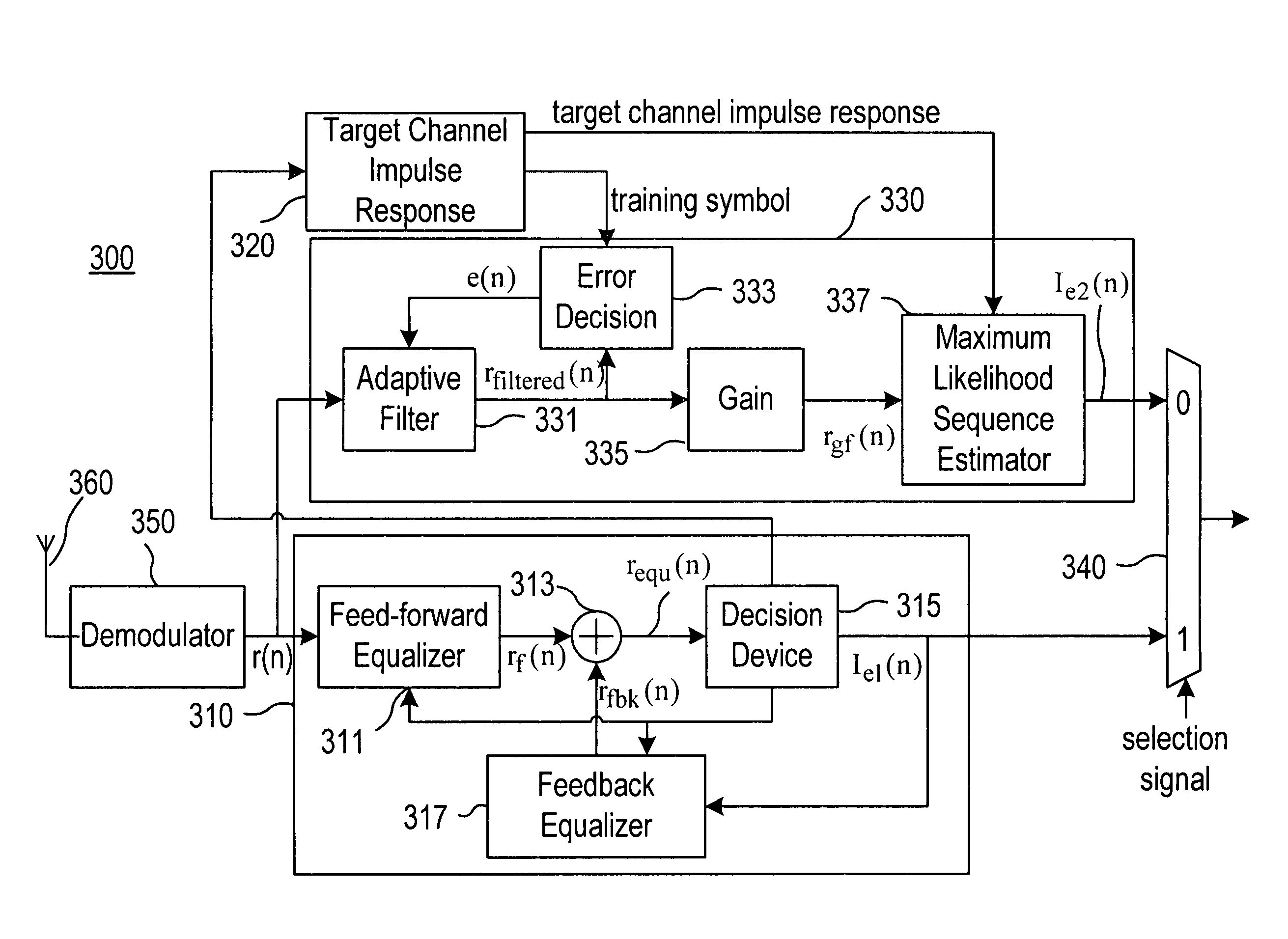

A hybrid equalization system includes an equalization device, a target channel impulse response device, a maximum likelihood sequence estimation device and a multiplexer. The equalization device receives a sampled baseband signal and performs an equalization operation thereon for generating first estimated symbols. The target channel impulse response device convolutes the first estimated symbol and a predetermined target channel response function for generating a training symbol corresponding to a target channel. The maximum likelihood sequence estimation device performs a maximum likelihood sequence estimation on the sampled baseband signal trained by first estimated symbols based on the target channel impulse response for generating second estimated symbols. The multiplexer selects the first estimated symbol or the second estimated symbol as an output of the hybrid equalization system according to a selection signal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- H04L Class
- 12446 Applications Filed
- 10382 Patents Issued To-Date
- 83.42 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H04L Class
- 4.50 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 25, 2025 |
