Auto-optimization circuits and methods for cyclical electronic systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 18, 2014
Issued Date -
N/A
app pub date -
Aug 3, 2011
filing date -
Aug 3, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

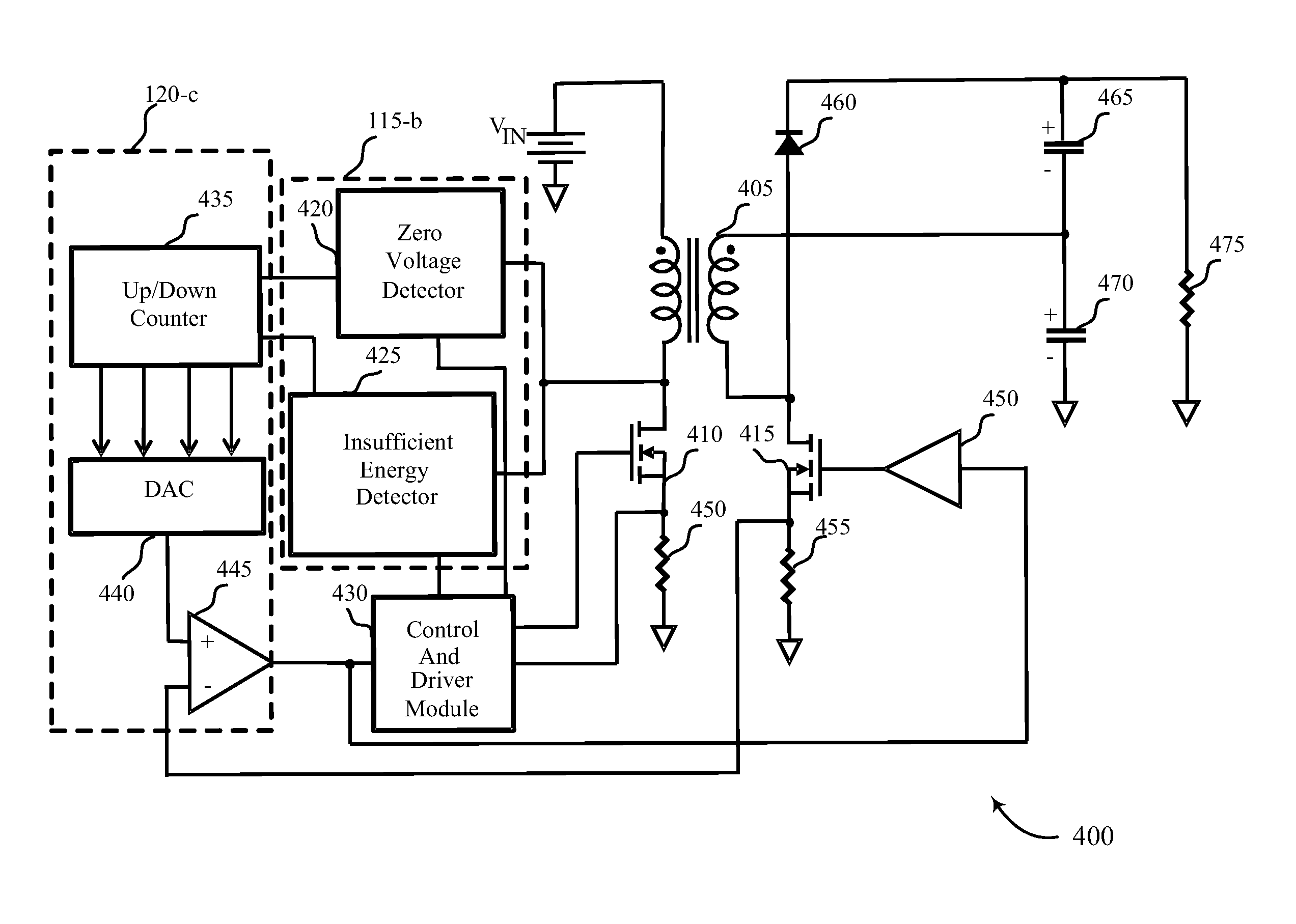

Methods, systems, and devices are described for an adjustment module that interacts with a parameter detection module to provide a threshold value for initiating switching of a switching module in a cyclical electronic system. Aspects of the present disclosure provide a switching module used in conjunction with an inductor that is coupled with the switching module. The threshold voltage for switching the switching module may be adjusted to provide switching at substantially zero volts while maintaining sufficient energy in the inductor to drive the voltage at a switching element in the switching module to zero volts. Such auto-adjustment circuits may allow for enhanced efficiency in cyclical electronic systems. The output of an up/down counter may be used to set another parameter that effects the performance of the cyclical electronic system in order to enhance the performance of the cyclical electronic system.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H02M Class
- 7.32 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 18, 2025 |
