Multi-physics fuel atomizer and methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 18, 2014
Issued Date -
N/A
app pub date -
May 20, 2010
filing date -
May 20, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

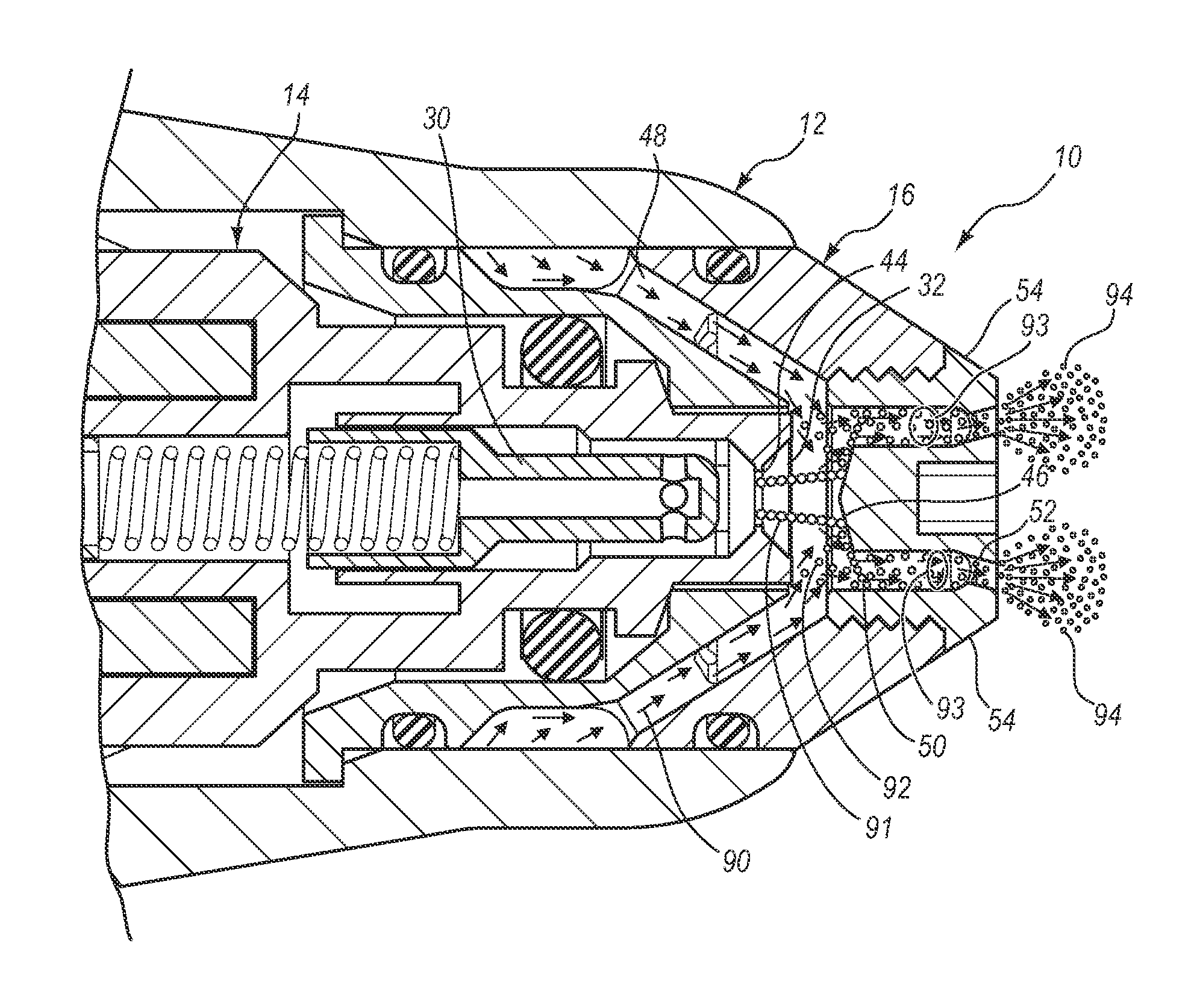

A fuel atomizer that includes a housing having a fuel inlet and at least one primary orifice positioned at the inlet, wherein the at least one orifice configured to disperse a stream of fuel into a plurality of fuel droplets. The plurality of fuel droplets contact a fuel impingement surface to break up the plurality of fuel droplets into a plurality of smaller secondary droplets and create a thin film of secondary droplets on the impingement surface. At least one pressurized air channel delivers an airflow into contact with the secondary droplets. The secondary droplets pass through a plurality of secondary outlet orifices to exit the housing. A size of the plurality of secondary droplets is reduced when passing out of the plurality of secondary orifices.
