Multilayer backing materials for composite armor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 11, 2014
Issued Date -
N/A
app pub date -
Jul 9, 2013
filing date -
Sep 10, 2010
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

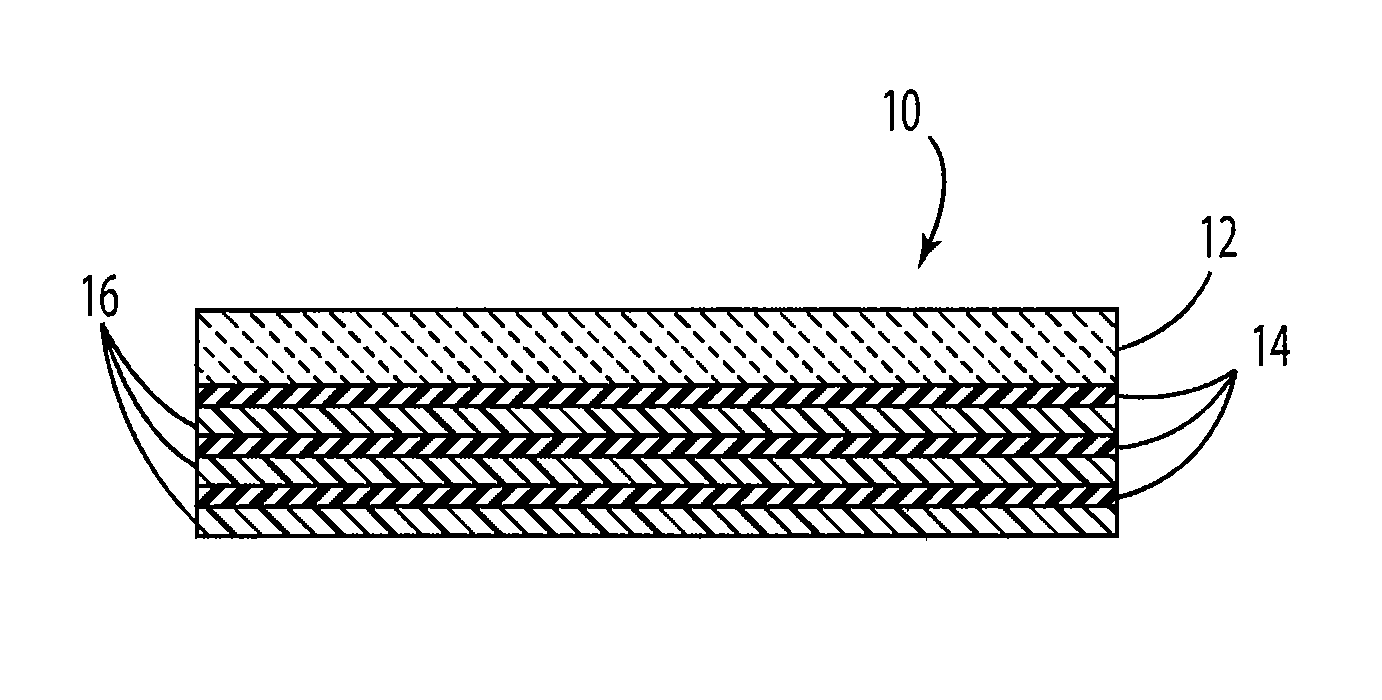

A multilayer backing composite for armor plate systems. One embodiment provides a ceramic layer and a bonded multilayer backing layer bonded to the ceramic layer. The backing layer can be formed from at least two layers each of alternating elastomeric interstitial layers and UHMWPE layers having an areal density in the range of about 125 to 400 g/m2. The areal density of the stack can be in the range of about 4 to 15 lbs/ft2, and specifically about 6.98 lbs/ft2. In some embodiments, at least one of the at least two UHMWPE layers nearer to the ceramic layer of the stack can have a lower areal density than at least one layer further from the ceramic layer. The ceramic layer can be SiC and 0.280″ thick; each rubber layer can be about 0.01″; and each UHMWPE layer can be about 0.15″.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F41H Class
- 251 Applications Filed
- 219 Patents Issued To-Date
- 87.26 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F41H Class
- 8.11 % this patent is cited more than
- 11 Age
