Silicon etching control method and system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 4, 2014
Issued Date -
N/A
app pub date -
Dec 16, 2010
filing date -
Dec 16, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

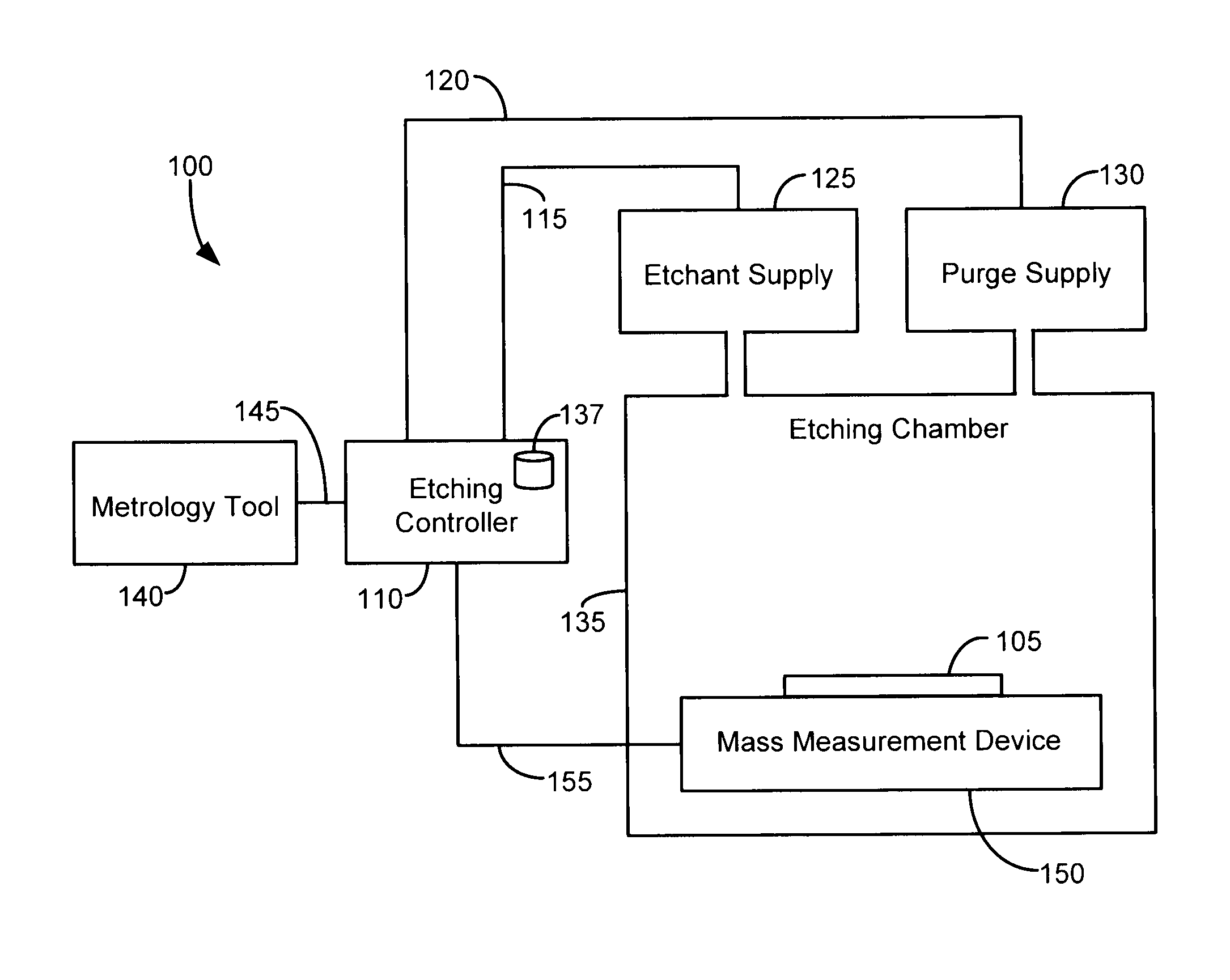

An etching control system controls exposure of a silicon workpiece to a spontaneous etchant. The system determines an amount of material to be removed from the silicon workpiece, based on metrology information corresponding to the silicon workpiece. An estimated etch time duration is determined for removing the amount of the material upon exposing the silicon workpiece to the spontaneous etchant for the estimated etch time duration. In some embodiments, the system monitors a change in mass of the silicon workpiece caused by exposure of the silicon workpiece to the spontaneous etchant to determine when the amount of the material has been removed from the silicon workpiece. Exposure of the silicon workpiece to the spontaneous etchant is stopped when the change in the mass of the silicon workpiece indicates that the amount of the material has been removed.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- G06F Class
- 37894 Applications Filed
- 27737 Patents Issued To-Date
- 73.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 4, 2025 |
