Push-pull amplification systems and methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 4, 2014
Issued Date -
N/A
app pub date -
Jul 9, 2012
filing date -
Jul 9, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

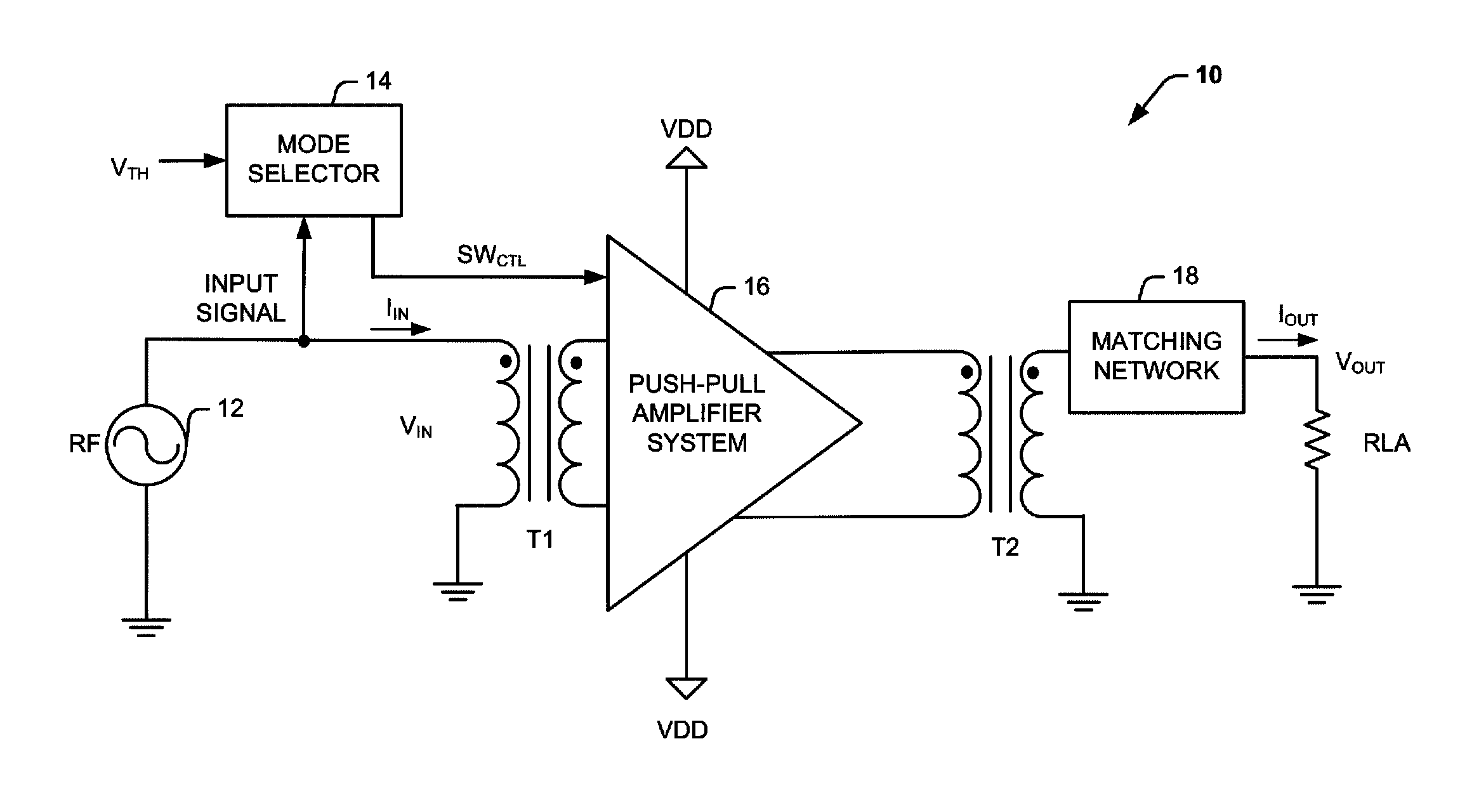

An amplification system is provided that comprises a push-pull amplifier system having a first power transistor series coupled with a second power transistor that alternately switch between a push-pull amplifier mode of operation and a single-ended amplifier mode of operation. In the push-pull amplifier mode, both the first power transistor and the second power transistor alternately conduct to provide an amplified output signal to an output load in response to an input signal having an amplitude that is greater than or equal to a threshold level. In the single-ended amplifier mode of operation, the first power transistor conducts and the second power transistor is disabled for amplification purposes in response to the input signal having an amplitude that is less than the threshold level.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2012 Application Filing Year
- H03F Class
- 976 Applications Filed
- 777 Patents Issued To-Date
- 79.62 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 4, 2025 |
