Fastener and structure for fastening a member to be fastened
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 4, 2014
Issued Date -
N/A
app pub date -
Apr 14, 2010
filing date -
Apr 14, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

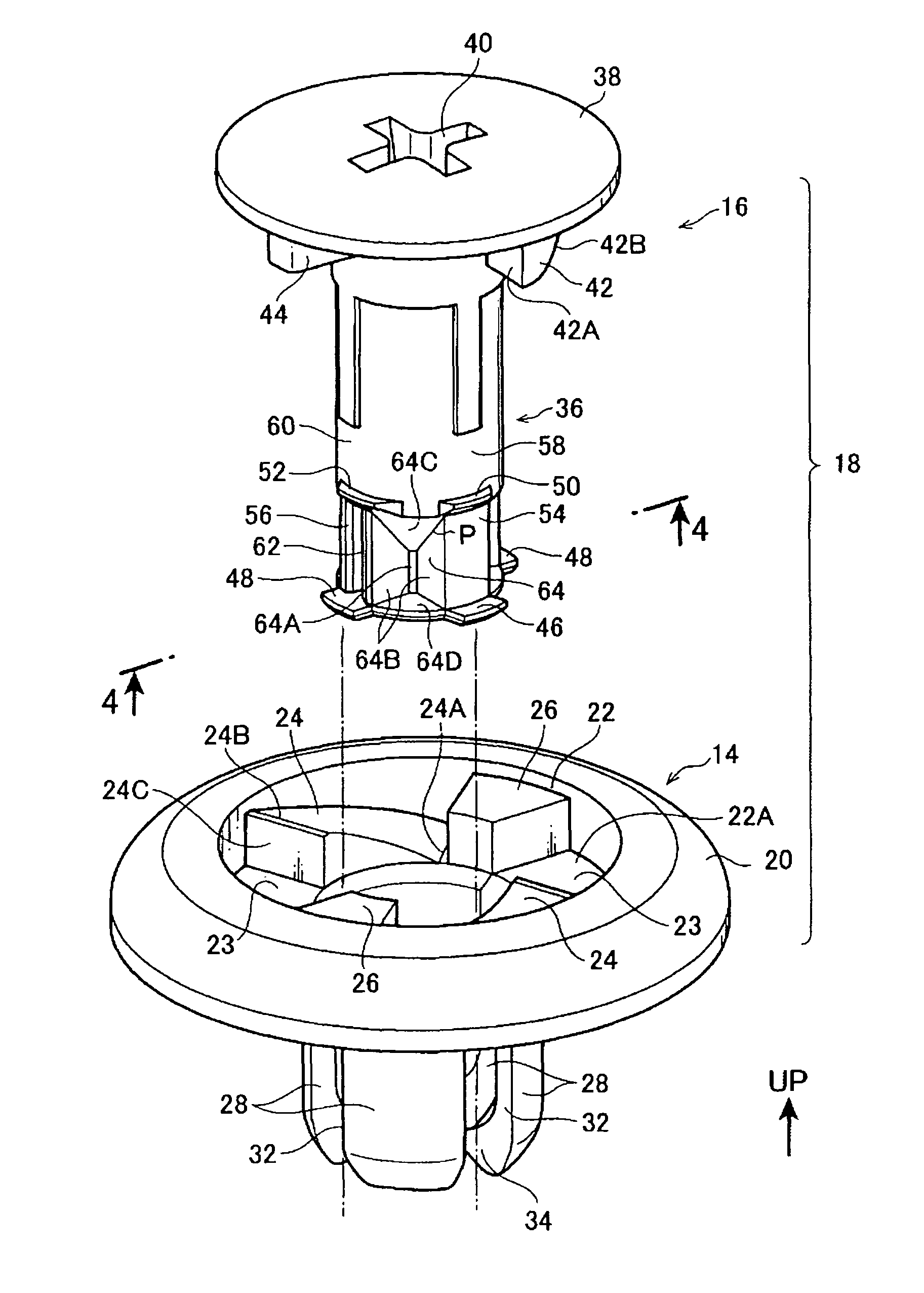

In case when an external force in a direction of pulling out from a female member acts on a male member in a fully fastened state, the male member moves in an axial direction, and a position where claw parts of engaging leg pieces engage moves from mounting parts and to contact parts. An engaging slot is formed on the contact part, and the engaging slot therefore engages with the claw part of the engaging leg piece. Movement in the direction of rotation of the male member is thereby restricted, and the male member is moved in state along the axial direction, so that the claw parts of the engaging leg pieces do not engage with engaging holes, and a state in which a vehicle body panel and a trim board are sandwiched by a flange part and the engaging leg pieces can be maintained.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 4, 2025 |
