Protective enclosure including a pry resistant door
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 4, 2014
Grant Date -
Jan 17, 2013
app pub date -
Jan 17, 2012
filing date -
Jan 17, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

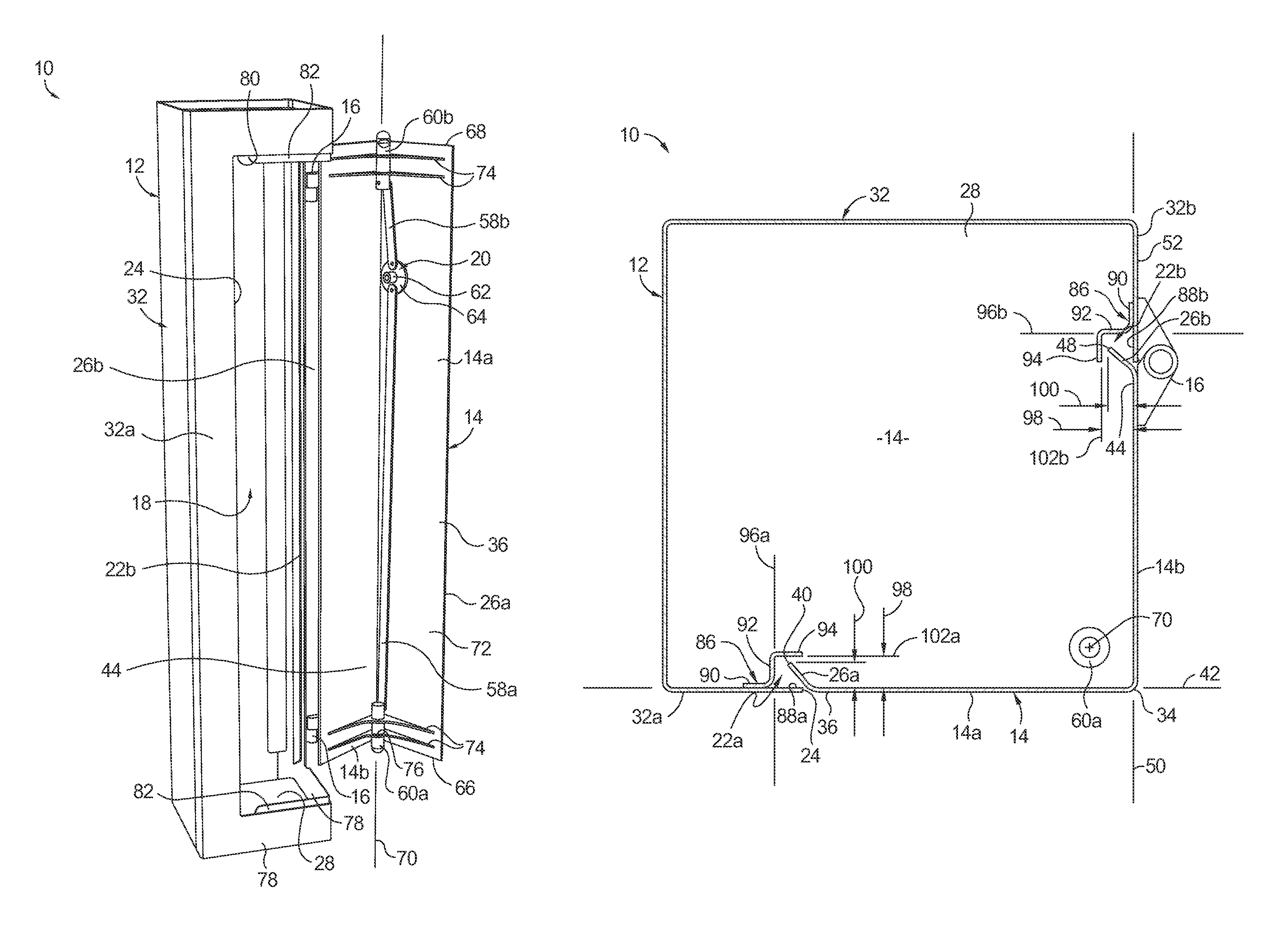

A protective enclosure including a housing defining a door opening is provided. A first flange extends from an opening end of a door and is angled relative to a surface of said door inwardly toward an interior storage space of the enclosure. The first flange and the door surface form an obtuse angle. A second flange extends from a hinge end of the door and is angled relative to the door surface inwardly toward the interior storage space. The second flange and the door surface form an obtuse angle. A hinge pivotally mounts the door with the housing. A locking mechanism selectively locks the door to the housing. The housing includes a channel disposed along at least a portion of the door opening. At least a portion of the first and second flanges are disposed within the channel when the door is closed to resist pry attacks.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- E05B Class
- 532 Applications Filed
- 445 Patents Issued To-Date
- 83.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E05B Class
- 0 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 4, 2025 |
