Device and method for stranding a long winding material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 4, 2014
Issued Date -
N/A
app pub date -
Jul 25, 2005
filing date -
Jul 26, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

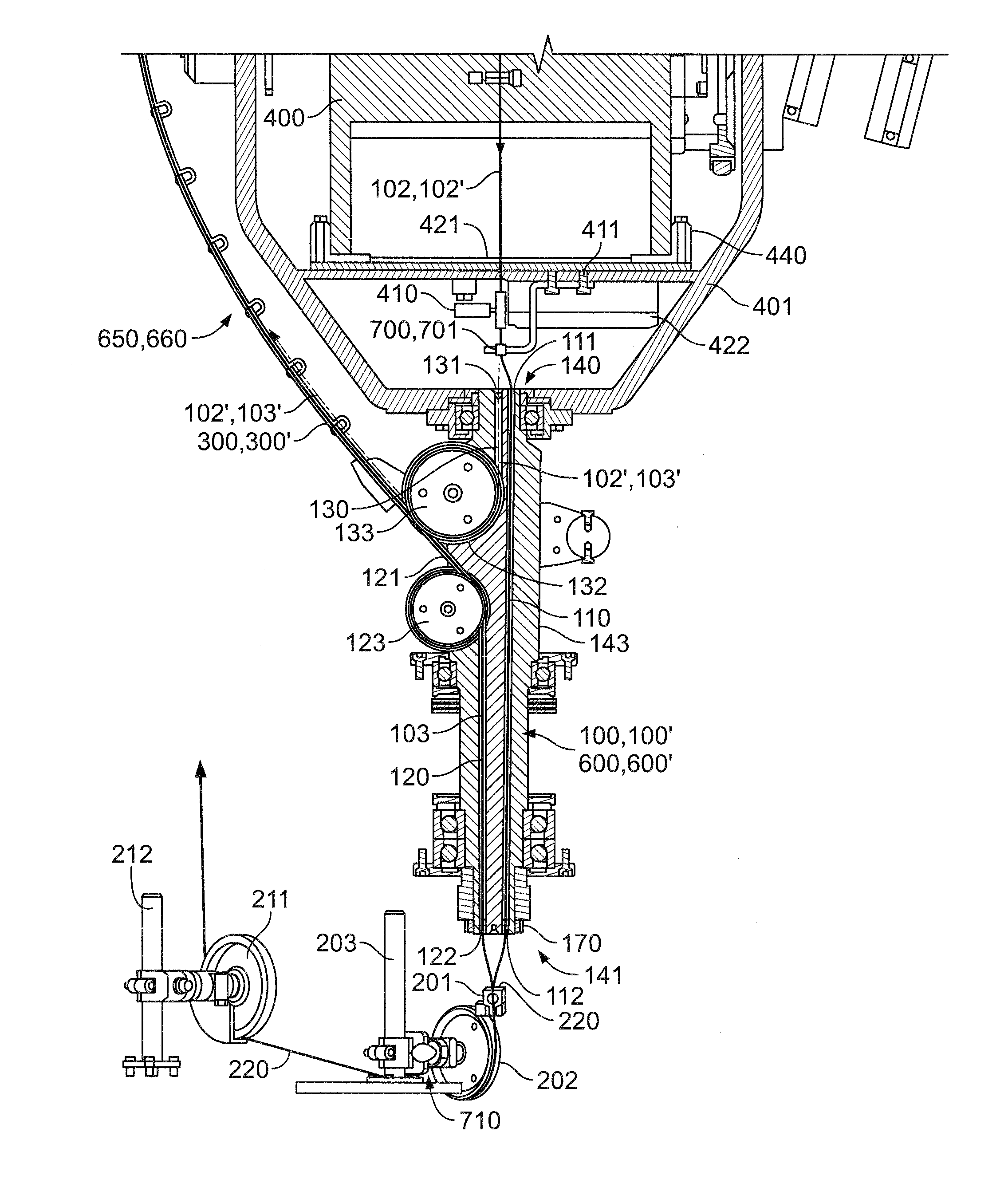

A stranding of long winding material using a substantially cylindrical rotary body. The rotary body includes a first passage for guiding a first winding material through the cylindrical rotary body and a second passage for guiding a second winding material through the cylindrical rotary body. The first passage connects a first offset inlet on a first end side of the rotary body to a first offset outlet on a second end side of the rotary body, which opposes the first end side. The second passage connects a second input, arranged on a surface of the rotary body extending between the two end sides, to a second offset output on the second or first end side of the rotary body.
First Claim
Family
International Classification(s)
- 2005 Application Filing Year
- B21F Class
- 59 Applications Filed
- 27 Patents Issued To-Date
- 45.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 4, 2025 |
