Lifting machine base assembly for a machine tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 25, 2014
Grant Date -
Apr 12, 2012
app pub date -
Oct 5, 2011
filing date -
Oct 7, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

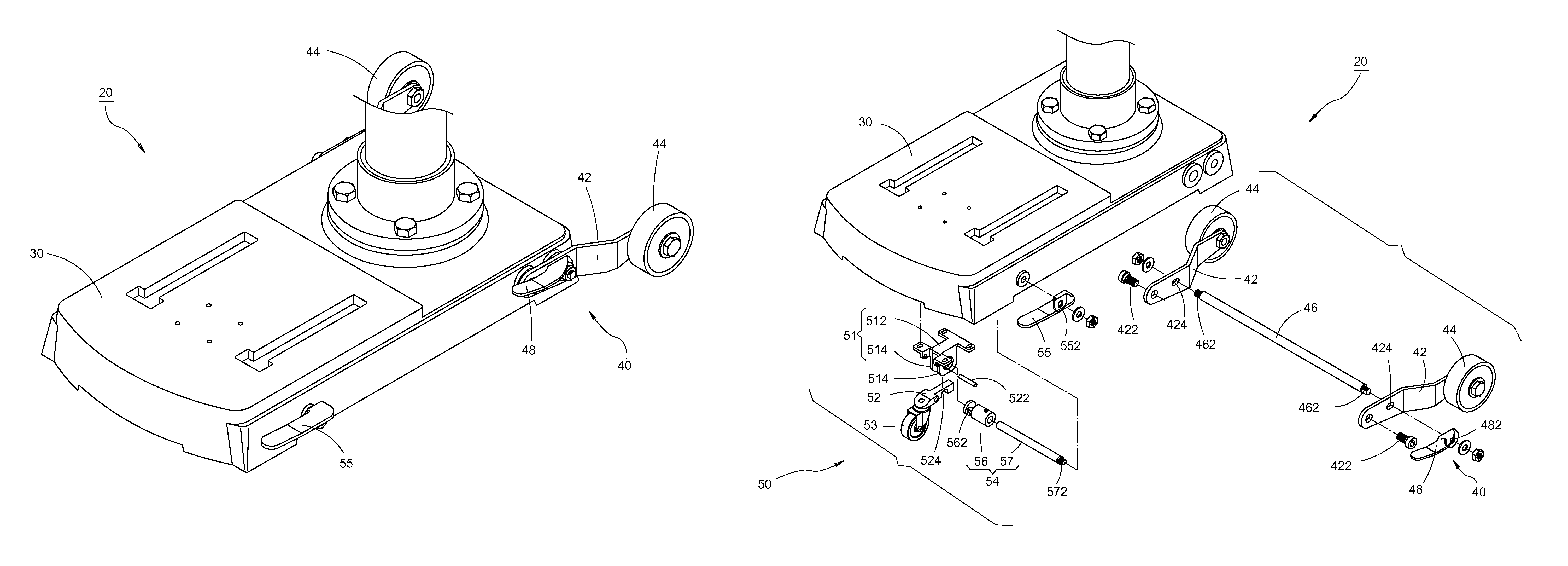

A lifting machine base assembly for use in a machine tool includes a machine base and a lateral wheel set. The lateral wheel set includes two lateral wheel frames respectively pivotally connected to two opposite sidewalls of the machine base, and a wheel shaft rotatably inserted through the machine base and eccentrically connected between the lateral wheel frames. A driving member is fastened to one end of the wheel shaft and operable to raise and lower the lateral wheel frames relative to the machine base and to further force the lateral wheels into contact with the floor to lift the machine base partially or wholly from the floor, allowing the operator to conveniently move the machine tool to a desired position by rotation of the lateral wheels.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B60B Class
- 236 Applications Filed
- 165 Patents Issued To-Date
- 69.92 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 25, 2025 |
