Cantilever brake with quick release mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 25, 2014
Grant Date -
Aug 8, 2013
app pub date -
Mar 5, 2012
filing date -
Feb 8, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

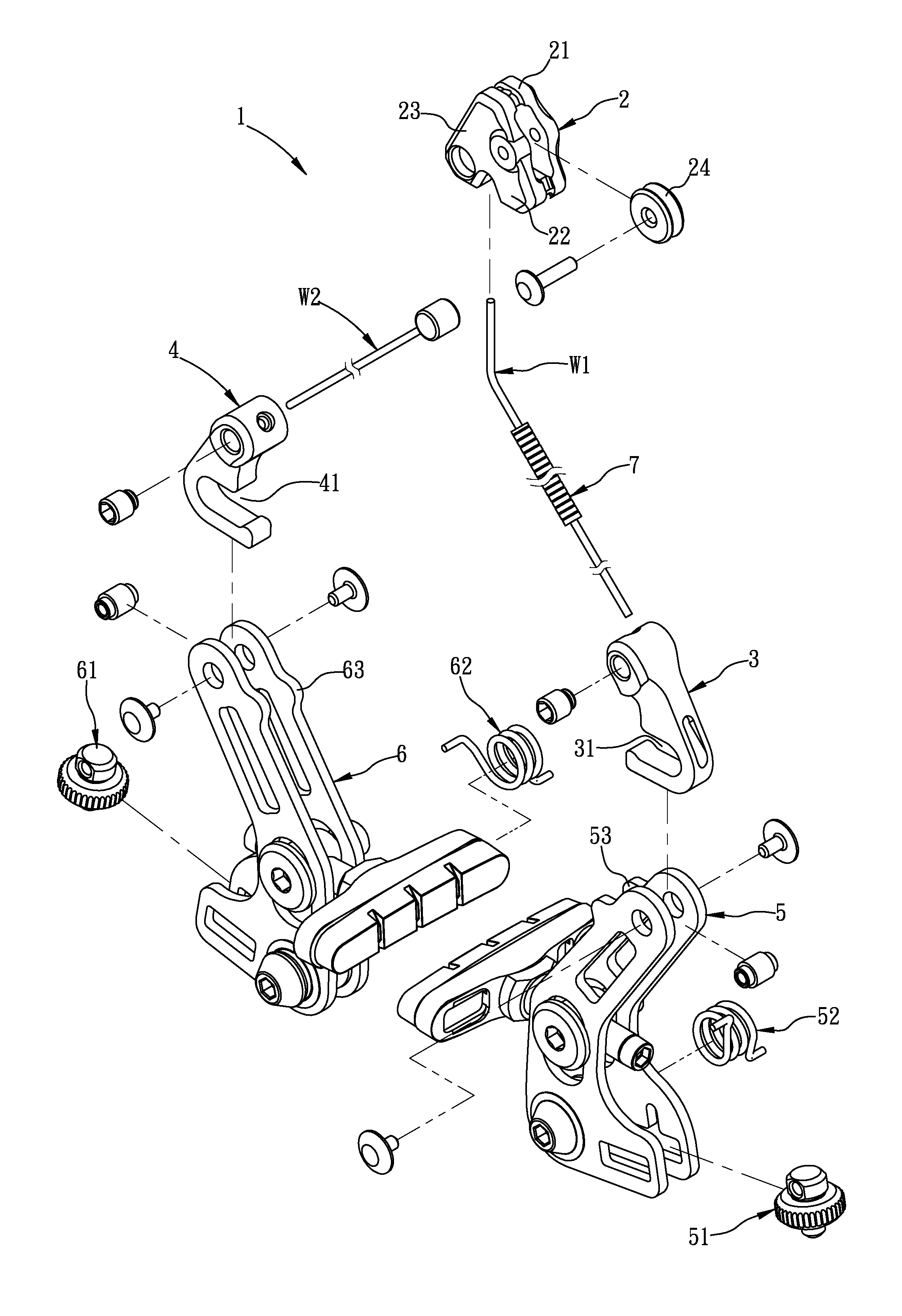

A cantilever brake of bicycle is provided with a triangular cable stop including first, second and third corner attachments and a wheel between the first and second corner attachments; a first pivot member including a first trough; a first cable passing through the first corner attachment, the wheel, and the second corner attachment to be fastened at the first pivot; a second pivot member including a second trough; a second cable having one end fastened in the third corner attachment and the other end fastened in the second pivot member; a first brake arm releasably pivotably secured to the first trough and including two opposite first projections and a spring actuated first adjustment knob distal the first projections; and a second brake arm releasably pivotably secured to the second trough and including two opposite second projections and a spring actuated second adjustment knob distal the second projections.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B62L Class
- 48 Applications Filed
- 30 Patents Issued To-Date
- 62.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 25, 2025 |
