Method and arrangement for generating or depositing a stream of fluid segments and use thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 18, 2014
Grant Date -
Oct 18, 2012
app pub date -
Oct 3, 2011
filing date -
Oct 2, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

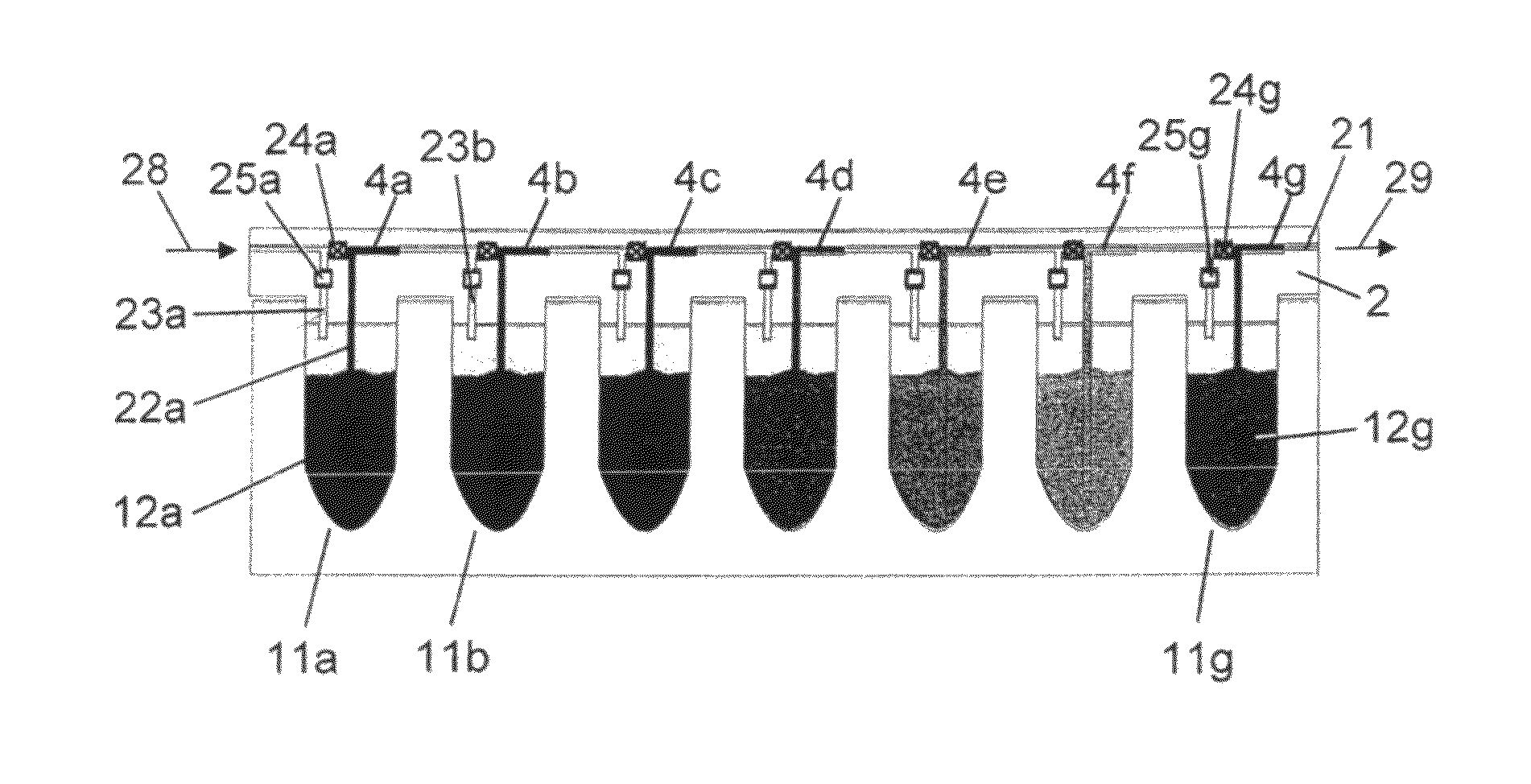

An arrangement and method for generating or depositing a stream of m>1 fluid segments, respectively separated by an intermediary medium which does not mix with the fluid segments. The arrangement includes a molded body having a channel for conducting the fluid stream, from which n≧m first access lines and n second access lines branch off. The first and second access lines are configured so to be inserted into n wells. The lengths of the first access lines differ from the lengths of the second access lines, and respectively one first valve is arranged in the channel, between the branching location for each second access line and the branching location for each associated first access line, and wherein respectively a second valve is arranged in each second access line.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2011 Application Filing Year
- B67D Class
- 543 Applications Filed
- 320 Patents Issued To-Date
- 58.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 18, 2025 |
