Device for controlling home automation equipment of a building
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 11, 2014
Grant Date -
Jun 10, 2010
app pub date -
Dec 10, 2009
filing date -
Dec 10, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

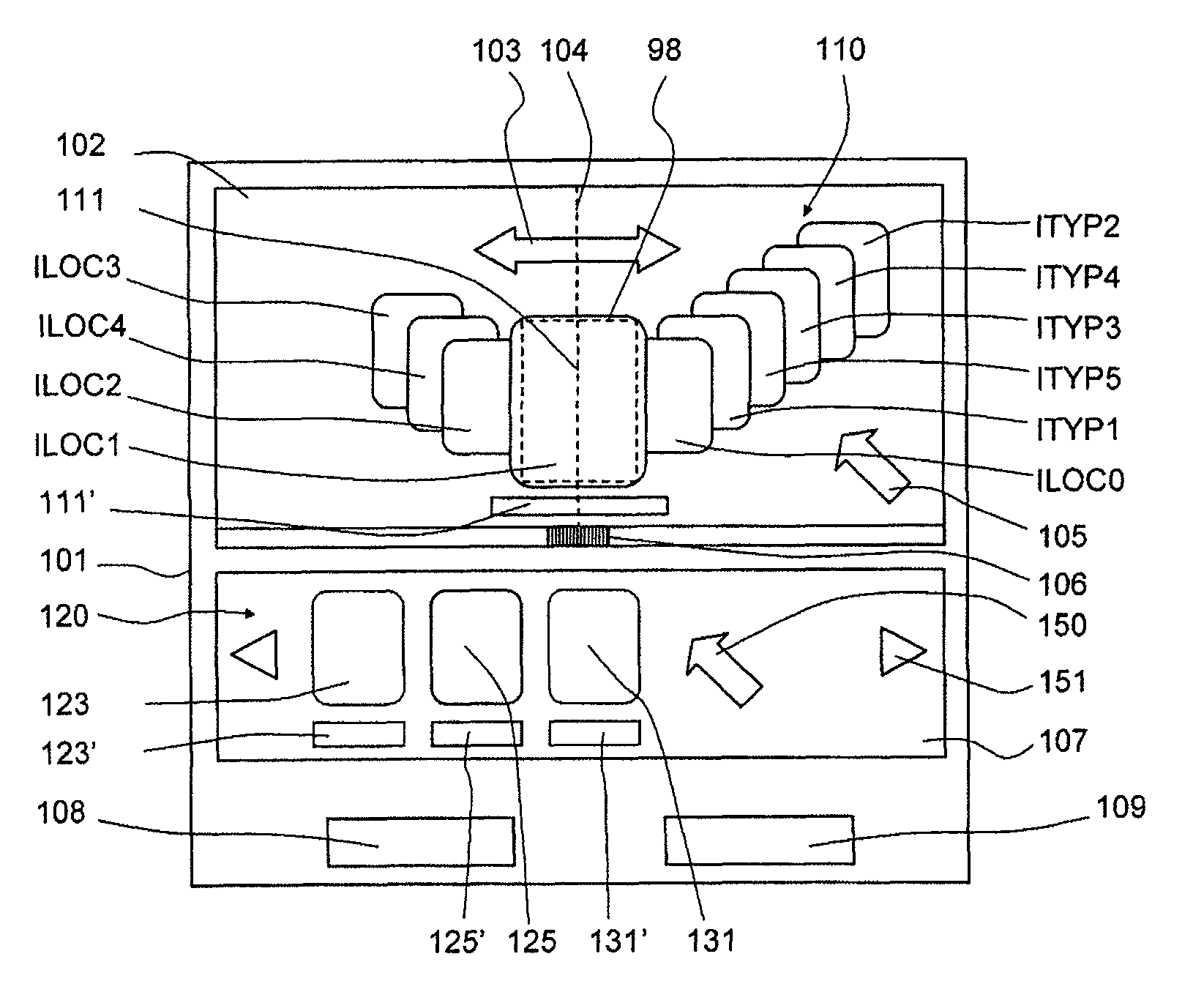

Device (60; 100) for controlling home automation equipment (1a, 2a, 2b, 2c, 3a, 3b, 4a, 5a) of a building, comprising a display screen (101), in which the screen is assigned to the display of type icons (ITYP1, ITYP2, ITYP3, ITYP4, ITYP5), a type icon representing a set of home automation equipment of one and the same type, the screen also being assigned to the display of location icons (ILOC0, ILOC1, ILOC2, ILOC3, ILOC4, ILOC5), a location icon representing a set of home automation equipment installed in one and the same place in the building, which control device comprises a first selection or navigation means (103, 104, 105, 106) making it possible to position, in a reduced area (98) of the screen, either, a selected type icon or location icon, so as to display on the screen equipment icons (4, 5, 123, 123′, 125, 125′, 131, 131′) representative of the home automation equipment assigned to said selected type icon or location icon.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- G06F Class
- 34869 Applications Filed
- 24376 Patents Issued To-Date
- 69.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 11, 2025 |
