Carrier with adjustable parallel track structure for retaining musical instruments
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 11, 2014
Grant Date -
Feb 19, 2009
app pub date -
Aug 18, 2007
filing date -
Dec 23, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance

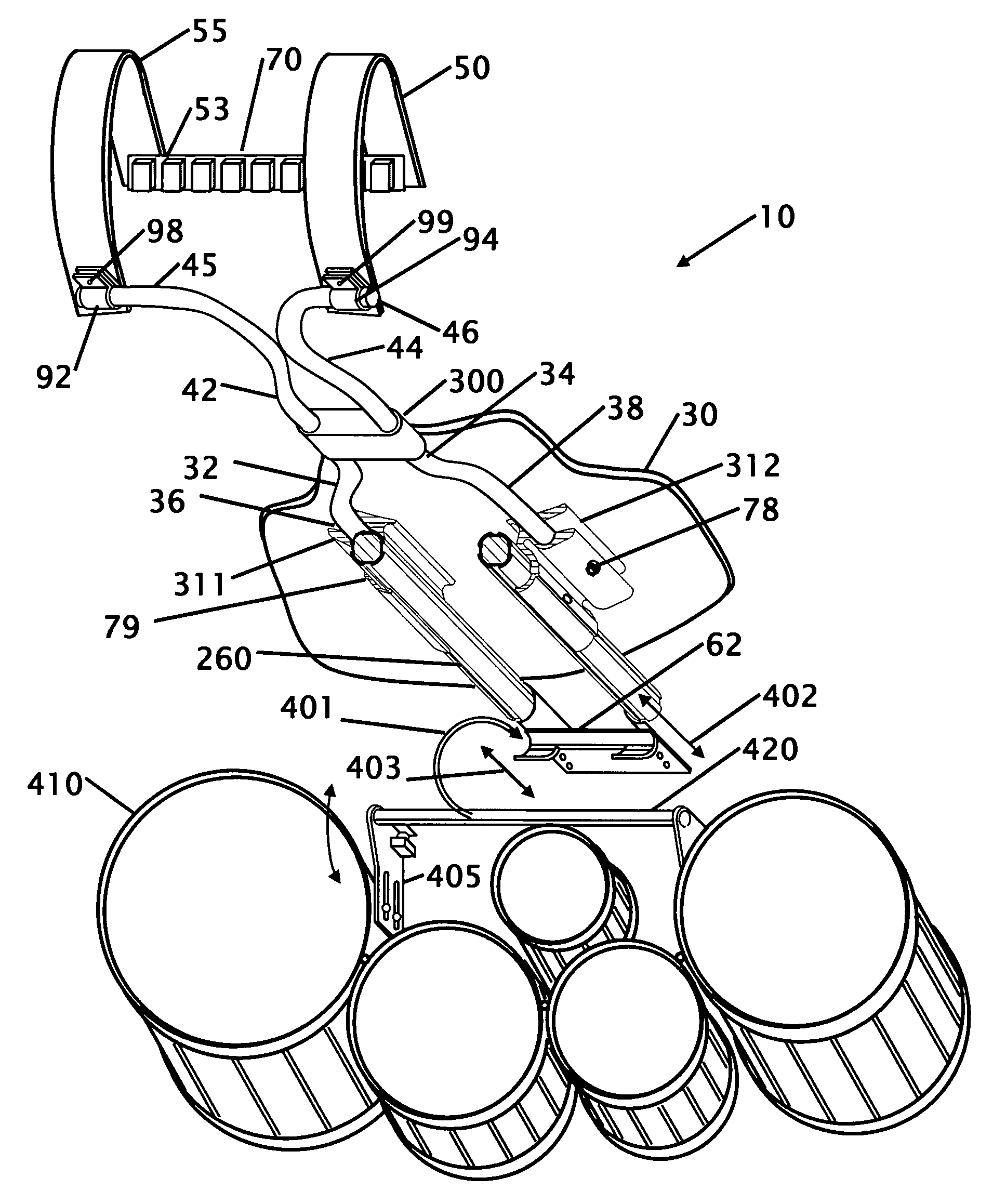

Abstract
An instrument carrier is disclosed for supporting one or more drums without using traditional “J” rods components. The carrier uses sliders that eliminate the interference with the user's legs and more particularly the user's thighs and provides a more natural stride of the user. The drum mounting structure is repositioned or translated on the sliders. The carrier allows the drum to be rigidly mounted in a variety of positions relative to the user. The cantilevered weight of the drum(s) rotates the drum or drum array to lock the drum(s) into a vertical or horizontal slots or saddle. In another embodiment a bridge extends from the carrier to a single post or tube to support a slidably mounted single drum. The structure also eliminates the necessity of a structurally rigid fixed abdomen plate and allows for use of a flexible and conforming abdomen plate.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2007 Application Filing Year
- A45F Class
- 107 Applications Filed
- 59 Patents Issued To-Date
- 55.15 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- A45F Class
- 5.63 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 11, 2025 |
