Apparatus for placing battery plates in a line
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 4, 2014
Grant Date -
Nov 10, 2011
app pub date -
Jul 19, 2011
filing date -
Apr 11, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

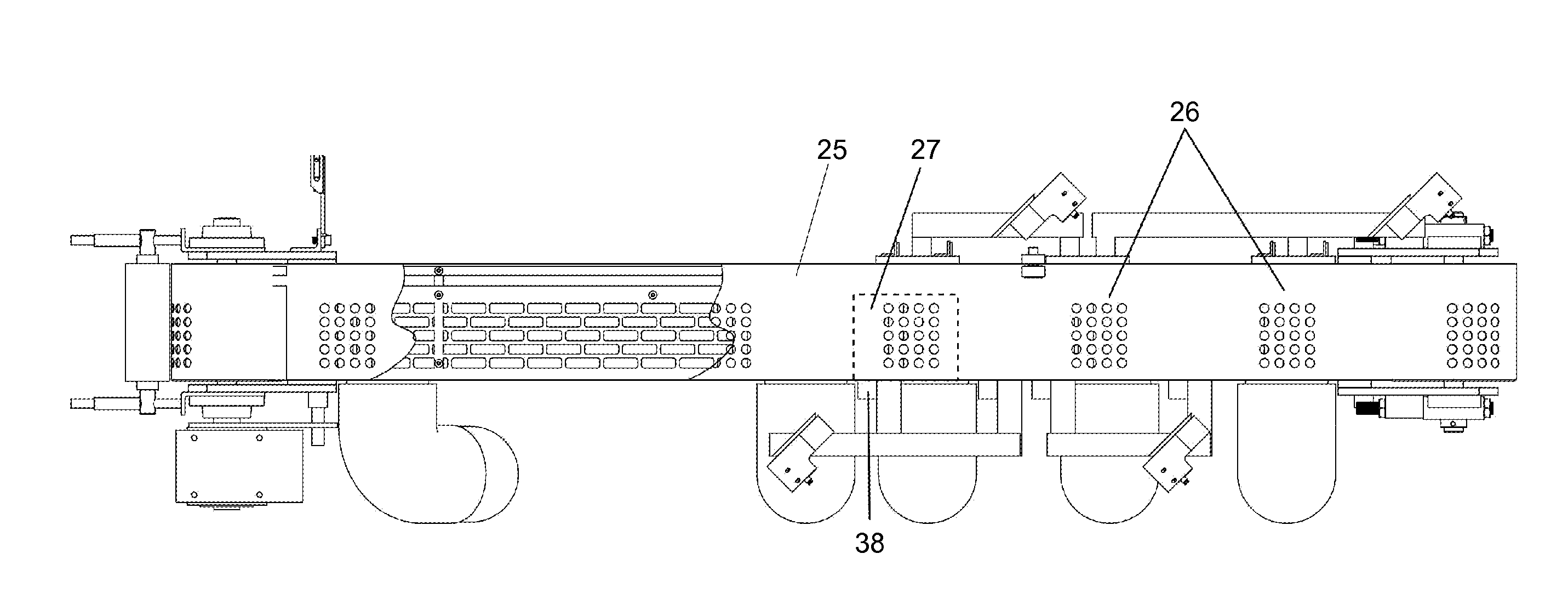

This invention relates to apparatus for placing battery plates in a line. This includes a pick up and release unit generally indicated at 16. The unit includes a central metal hollow body 17, which is divided into a number of side-by-side vacuum chambers, some of which have a perforate floor 19. A vacuum course 21 can be selectively connected to those, which have a perforate floor, while it is perpendicularly connected to a second set of chambers. Plates can be picked up from elevators 11 and 12 by use of the intermittent vacuum and then held against an endless belt 25 by the constant vacuum until they arrive at a release chamber, having a perforate floor, where upon interruption of the vacuum allows for release of the battery plate.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B27D Class
- 8 Applications Filed
- 8 Patents Issued To-Date
- 100 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B27D Class
- 0 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 4, 2025 |
