Working machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 28, 2014
Grant Date -
May 24, 2012
app pub date -
Nov 17, 2009
filing date -
Nov 18, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

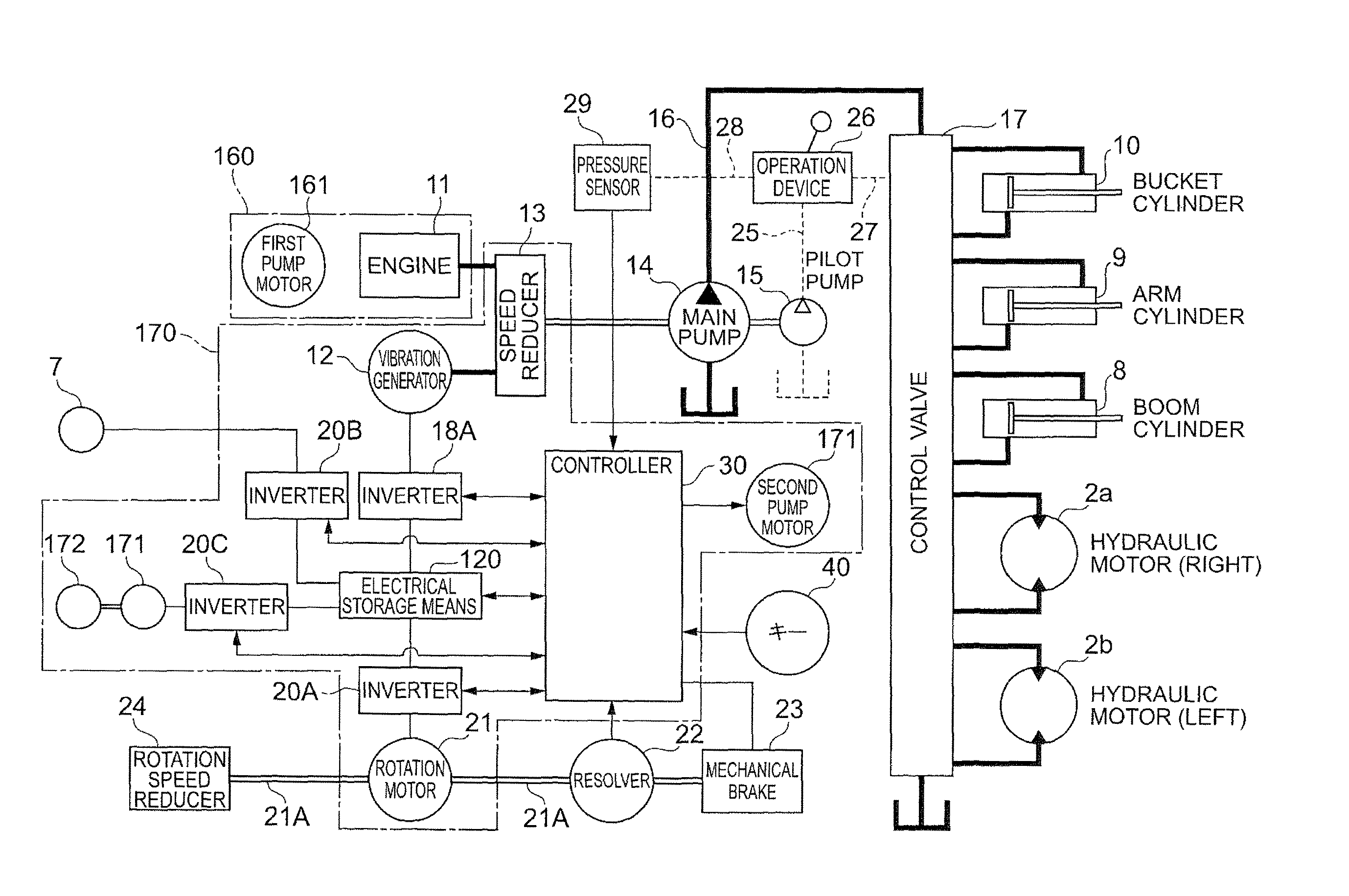

Provided is a working machine capable of decreasing a voltage of a DC busbar (DC bus) with a configuration suppressing a degradation in reliability. A hybrid type construction machine as a working machine includes: a DC bus which is connected to a rotation motor via an inverter circuit, a battery which is connected to the DC bus via a step-up/step-down converter and a switch, a controller which drives the inverter circuit and the step-up/step-down converter, a cooling liquid circulating system which includes a pump motor, and an inverter circuit which is connected to the DC bus and driving the pump motor. The controller includes a mode used for decreasing the voltage of the DC bus, and in that mode, the switch enters a disconnection state and the inverter circuit is operated to consume electricity in the pump motor.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 14 Citation Count
- B60W Class
- 0 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 28, 2025 |
