Liquid crystal display with a plurality of liquid crystal display modules
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 21, 2014
Grant Date -
Sep 15, 2011
app pub date -
Nov 4, 2009
filing date -
Nov 10, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

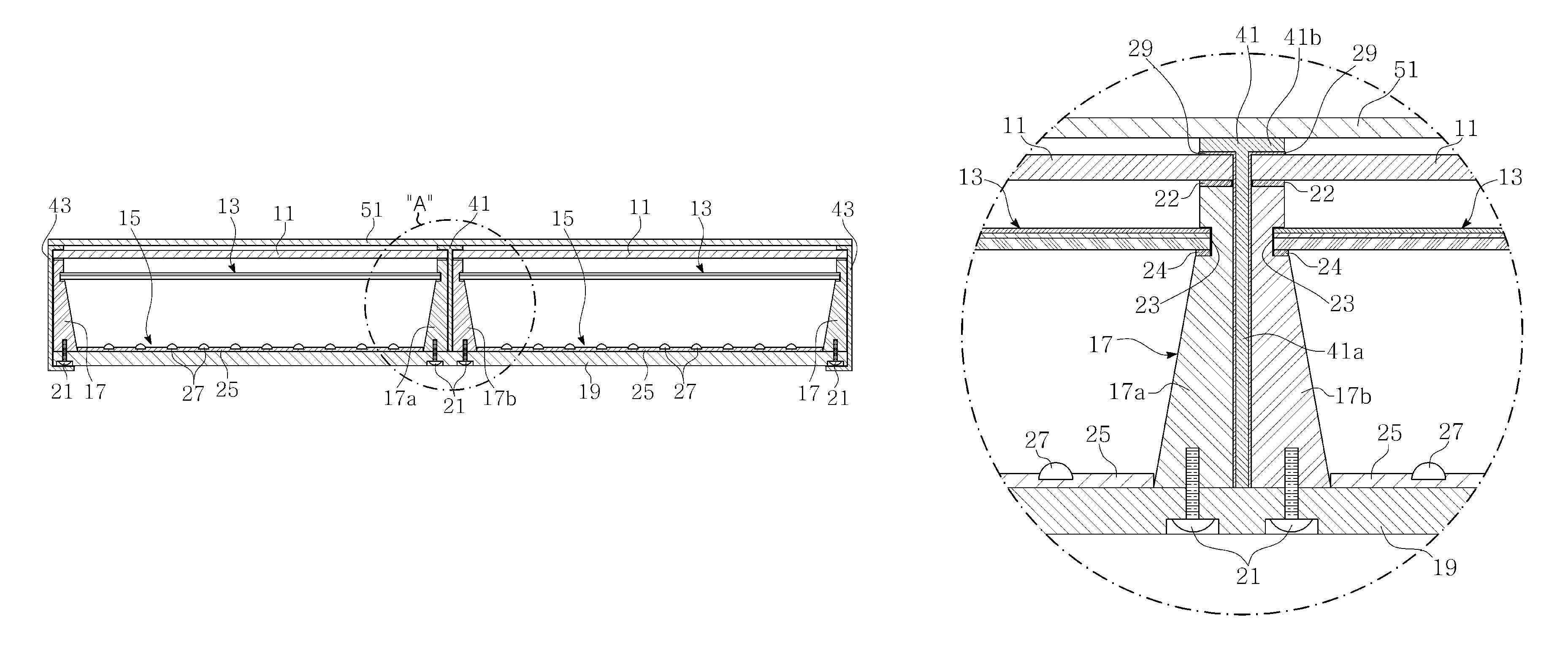

The present invention relates to a liquid crystal display. A liquid crystal display includes: a mounting plate; a backlight unit; a plurality of liquid crystal panels which are arranged to be adjacent in a state of being spaced from an upper surface of the mounting plate; a fixing frame which is connected to the mounting frame and includes portions extending along neighboring edges of the plurality of the liquid crystal panels in a state of being spaced from one another by a predetermined distance; and a fixing bar which is fitted between the adjacent portions of the fixing frame in a state of pressing edges of the neighboring liquid crystal panels among the plurality of the liquid crystal panels. Since a liquid crystal panel is fixed by a fixing bar, the liquid crystal panel can be fixed more firmly with a simple structure.
