Instrument and speaker lift stand
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 21, 2014
Grant Date -
Jun 14, 2012
app pub date -
Dec 9, 2011
filing date -
Dec 14, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

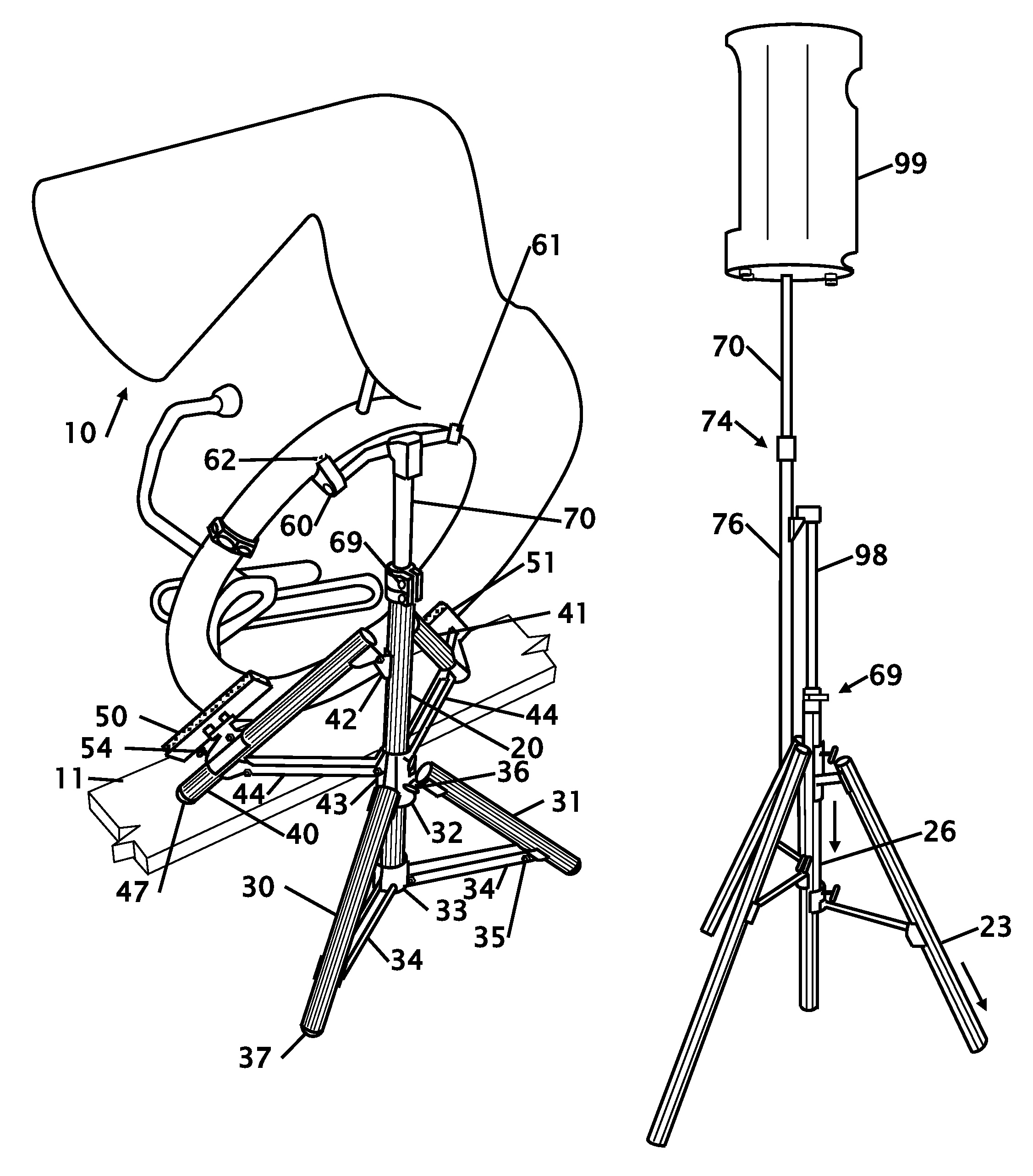

Improvements in a lifting stand are presented. The lift stand is for a musical instrument stand or to elevate a speaker and that rigidly supports a sousaphone brass type instruments or speaker in an in a stored and in a playable or elevated position. The stand supports all or the majority of the weight of the instrument or speaker in a static position to relieve the weight of the musical instrument or speaker. The stand has legs that are extendable to rest on multiple levels as might be found in a stadium. The stand further has a securing mechanism that gently grasps a tubular section to hold the musical instrument. The musical instrument stand is collapsible to fit within or can be carried with the case of the sousaphone or other brass instrument. The speaker stand can be easily collapsed for transportation and storage.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- G10D Class
- 170 Applications Filed
- 136 Patents Issued To-Date
- 80 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G10D Class
- 4.90 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 21, 2025 |
