Electrospinning in a controlled gaseous environment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 21, 2014
Grant Date -
Mar 29, 2012
app pub date -
Sep 23, 2011
filing date -
Apr 8, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

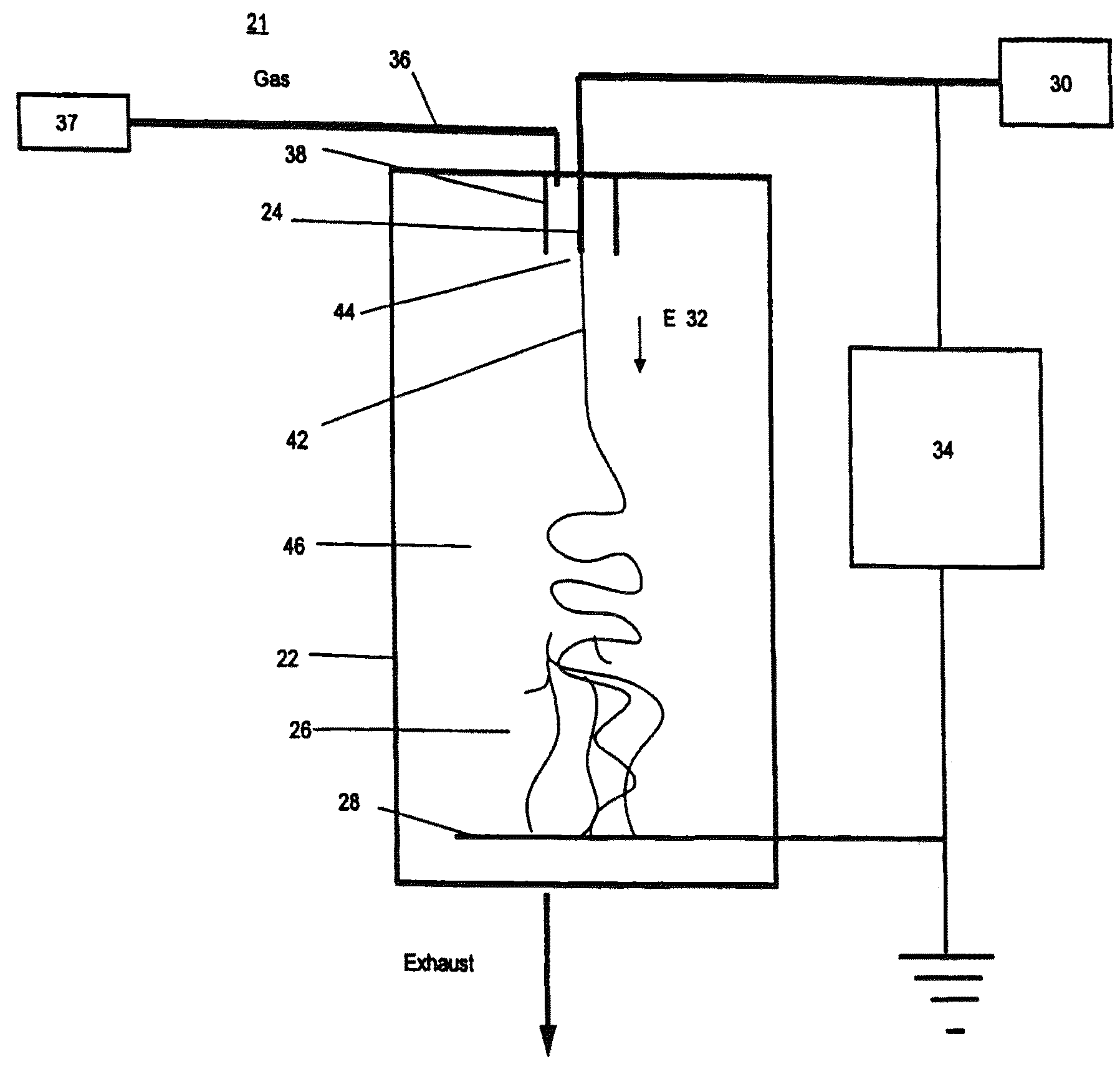

Apparatus and method for producing fibrous materials in which the apparatus includes an extrusion element configured to electrospin a substance from which the fibers are to be composed by an electric field extraction of the substance from a tip of the extrusion element, a collector disposed from the extrusion element and configured to collect the fibers, a chamber enclosing the collector and the extrusion element, and a control mechanism configured to control a gaseous environment in which the fibers are to be electrospun. The apparatus and method provide a way to produce a fiber collection having a plurality of nanofibers disposed in relation to each other. The nanofibers in the fiber collection are preferentially oriented along a longitudinal axis of the fiber collection.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- D01D Class
- 120 Applications Filed
- 98 Patents Issued To-Date
- 81.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 21, 2025 |
