Device for the comminution of material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 21, 2014
Grant Date -
Mar 8, 2012
app pub date -
Sep 2, 2010
filing date -
Sep 2, 2010
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

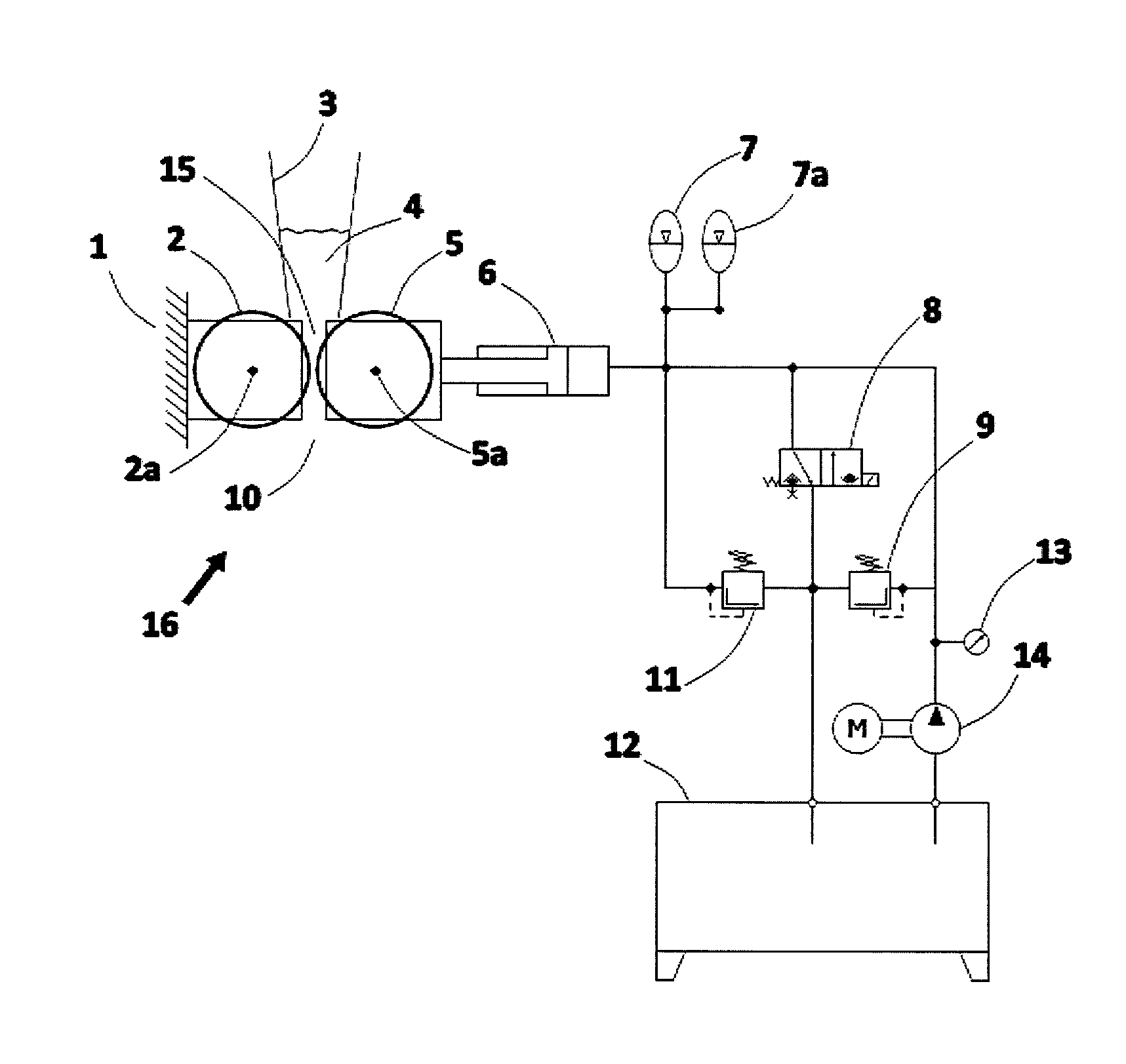

A device for comminuting material, such as a roller press, includes rollers positioned adjacent to each other and forming a nip therebetween. One of the rollers may be moveable via an actuator, such as a cylinder or hydraulic cylinder. One or more first accumulators may be attached to the actuator so that fluid is moveable from the actuator to the one or more first accumulators when the rollers are rotated to comminute material passing through the nip. One or more second accumulators may be connected to the actuator as well so that fluid from the actuator may move to the one or more second accumulators when an uncrushable element passes through the nip. Preferably, the one or more second accumulators are configured such that fluid does not pass from the actuator to the one or more second accumulators unless an uncrushable element passes through the nip.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
FLSMIDTH A/S | 2500 VALBY |
International Classification(s)

- 2010 Application Filing Year
- B02C Class
- 366 Applications Filed
- 256 Patents Issued To-Date
- 69.95 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Euculano, Jason Steven | Northampton, US | 2 | 6 |
# of filed Patents : 2 Total Citations : 6 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 21, 2025 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
