Three-phase separator having an overflow outlet for one phase and a centripetal pump for another phase
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 14, 2014
Grant Date -
Jul 22, 2010
app pub date -
Jun 27, 2008
filing date -
Jun 30, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

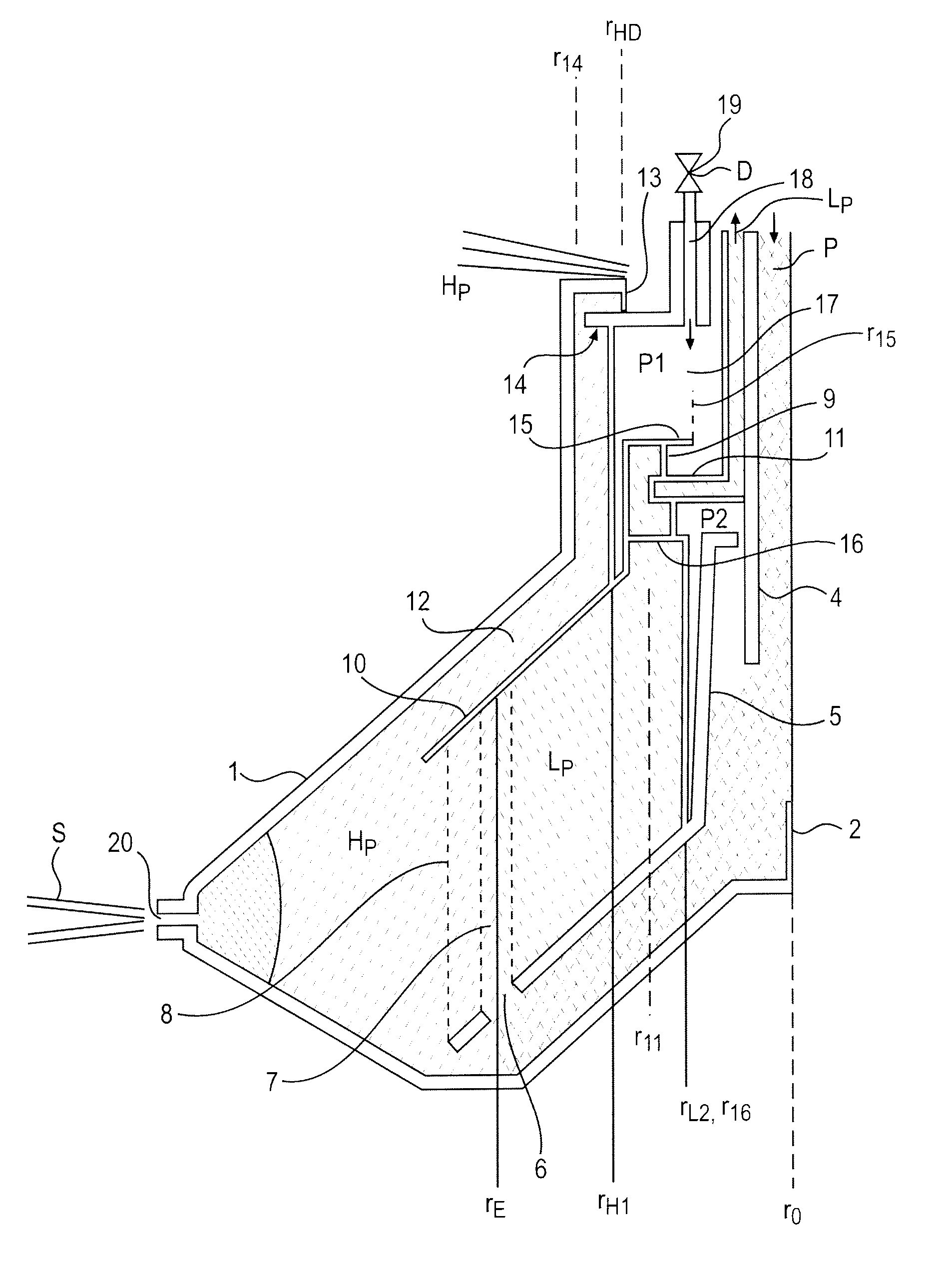

A separator including a separator drum having a conical interior and rotatably mounted at an axial end about a vertical axis of rotation. A rotating spindle is located at either a lower or upper end of the separator drum and is configured to drive the separator drum. The rotating spindle is disposed in an oscillating manner about a hinge point. Also included is supply tube for a product to be processed and two fluid outlets. One fluid outlet is for a light phase and one fluid outlet is for a heavy phase. A solids material discharge opening is located in an area of the separator drum's largest inner circumference. Further included is a separation pan assembly. A pressure chamber is configured to be acted upon by a fluid to change a location of a separation zone between the light phase and the heavy phase.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2008 Application Filing Year
- B04B Class
- 88 Applications Filed
- 57 Patents Issued To-Date
- 64.78 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 14, 2025 |
