Locking mechanism for valve device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 14, 2014
Grant Date -
Oct 4, 2012
app pub date -
Mar 30, 2012
filing date -
Mar 31, 2011
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

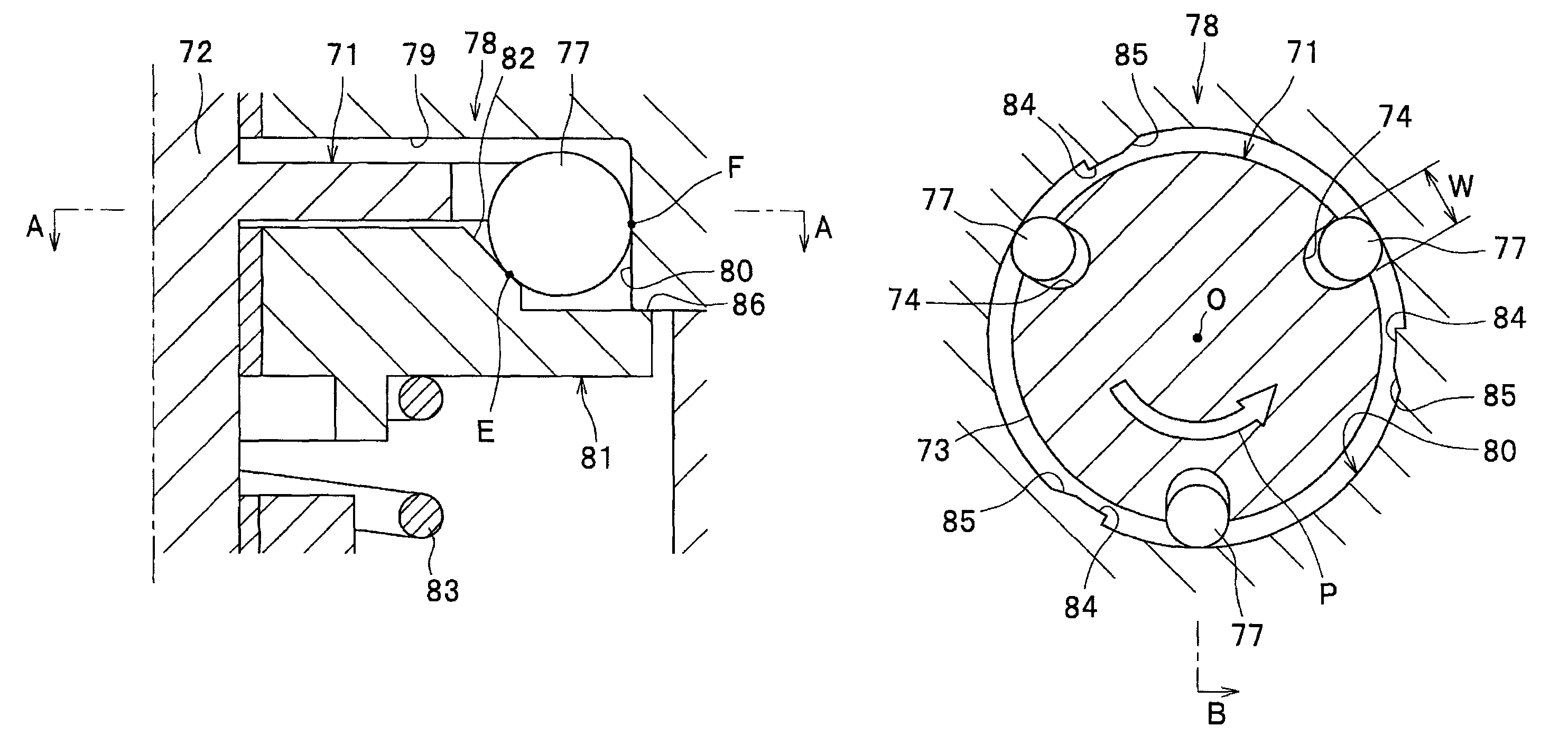

Disclosed herein is a locking mechanism for a valve device having a valve body for retaining the valve body at a predetermined opened position, including: a disk having a rotational shaft rotatable together with a valve body driving shaft and having a cutout groove formed on an outer circumferential face thereof; a ball disposed in the cutout groove; a body member having an axial direction restriction face and an inner circumferential face; a holder member having an engaging face which has a diameter gradually decreasing toward the ball and is engageable with the ball; and a spring member biasing the holder member toward the ball, wherein said ball is clamped by and among the engaging face which is acted upon by the biasing force of said spring member, the axial direction restriction face and the inner circumferential face so that a rotational direction position of the rotational shaft is retained.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
HONDA MOTOR CO LTD | 1-1 MINAMI-AOYAMA 2-CHOME MINATO-KU TOKYO 107-8556 | |
KEIHIN CORPORATION | TOKYO 163-0539 |
International Classification(s)

- 2012 Application Filing Year
- F16K Class
- 1344 Applications Filed
- 1061 Patents Issued To-Date
- 78.95 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Sakata, Yukinobu | Shioya-gun, JP | 58 | 359 |
# of filed Patents : 58 Total Citations : 359 | |||
Wakabayashi, Takuya | Wako, JP | 6 | 25 |
# of filed Patents : 6 Total Citations : 25 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 14, 2025 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Oct 26, 2015 | STCH | INFORMATION ON STATUS: PATENT DISCONTINUATION | free format text: PATENT EXPIRED DUE TO NONPAYMENT OF MAINTENANCE FEES UNDER 37 CFR 1.362 |
Sep 25, 2015 | FP | LAPSED DUE TO FAILURE TO PAY MAINTENANCE FEE | Effective Date: Sep 25, 2015 |
Sep 25, 2015 | LAPS | LAPSE FOR FAILURE TO PAY MAINTENANCE FEES | |
May 08, 2015 | REMI | MAINTENANCE FEE REMINDER MAILED | |
Feb 24, 2011 | FPAY | FEE PAYMENT | year of fee payment: 4 |
Sep 25, 2007 | I | Issuance | |
Sep 08, 2005 | P | Published | |
Dec 16, 2004 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:KIRIYAMA, HIROMITSU;YAMAKAWA, KOICHI;REEL/FRAME:016140/0408 Owner name: JAPAN ATOMIC ENERGY RESEARCH INSTITUTE, JAPAN Effective Date: Dec 16, 2004 |
Aug 27, 2004 | F | Filing | |
Mar 04, 2004 | PD | Priority Date |

Matter Detail

Renewals Detail
