Controlling spatial properties in an excimer ring amplifier
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 7, 2014
Grant Date -
N/A
app pub date -
Mar 14, 2013
filing date -
Mar 14, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

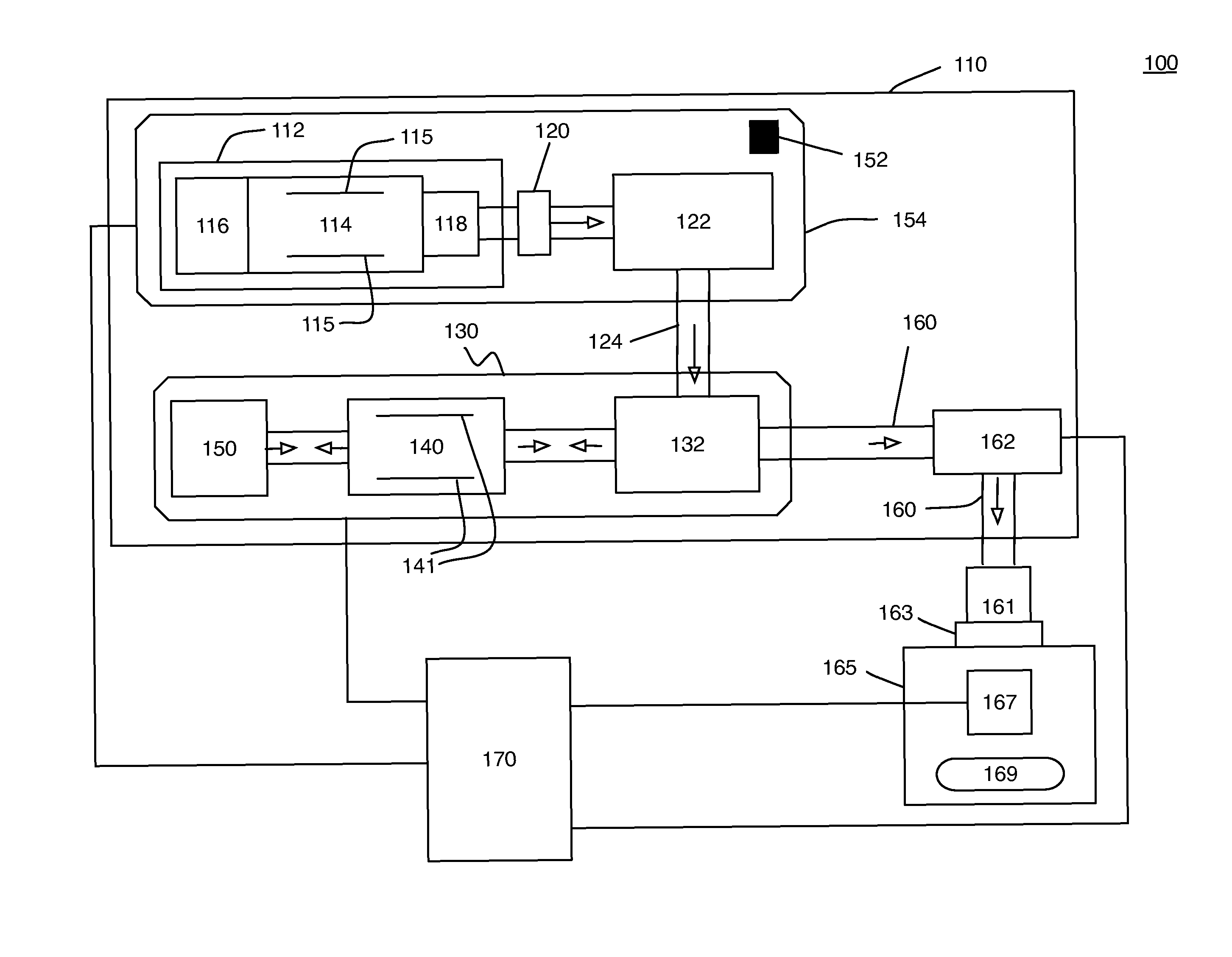

A deep ultraviolet light source includes a master oscillator producing a seed light beam; a regenerative ring amplifier receiving the seed light beam from the master oscillator and outputting an output light beam, the regenerative ring amplifier including a set of optical components that define a plane of a closed ring; and a divergence control device within the master oscillator or between the master oscillator and the regenerative ring amplifier and configured to reduce a divergence of the output light beam along a normal direction, the normal direction being perpendicular to the plane of the ring.
First Claim
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 7, 2025 |
