Connector having a top cap to create an electrical connection between an electrical cable and an electrical contact
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 31, 2013
Issued Date -
N/A
app pub date -
Nov 22, 2011
filing date -
Aug 18, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

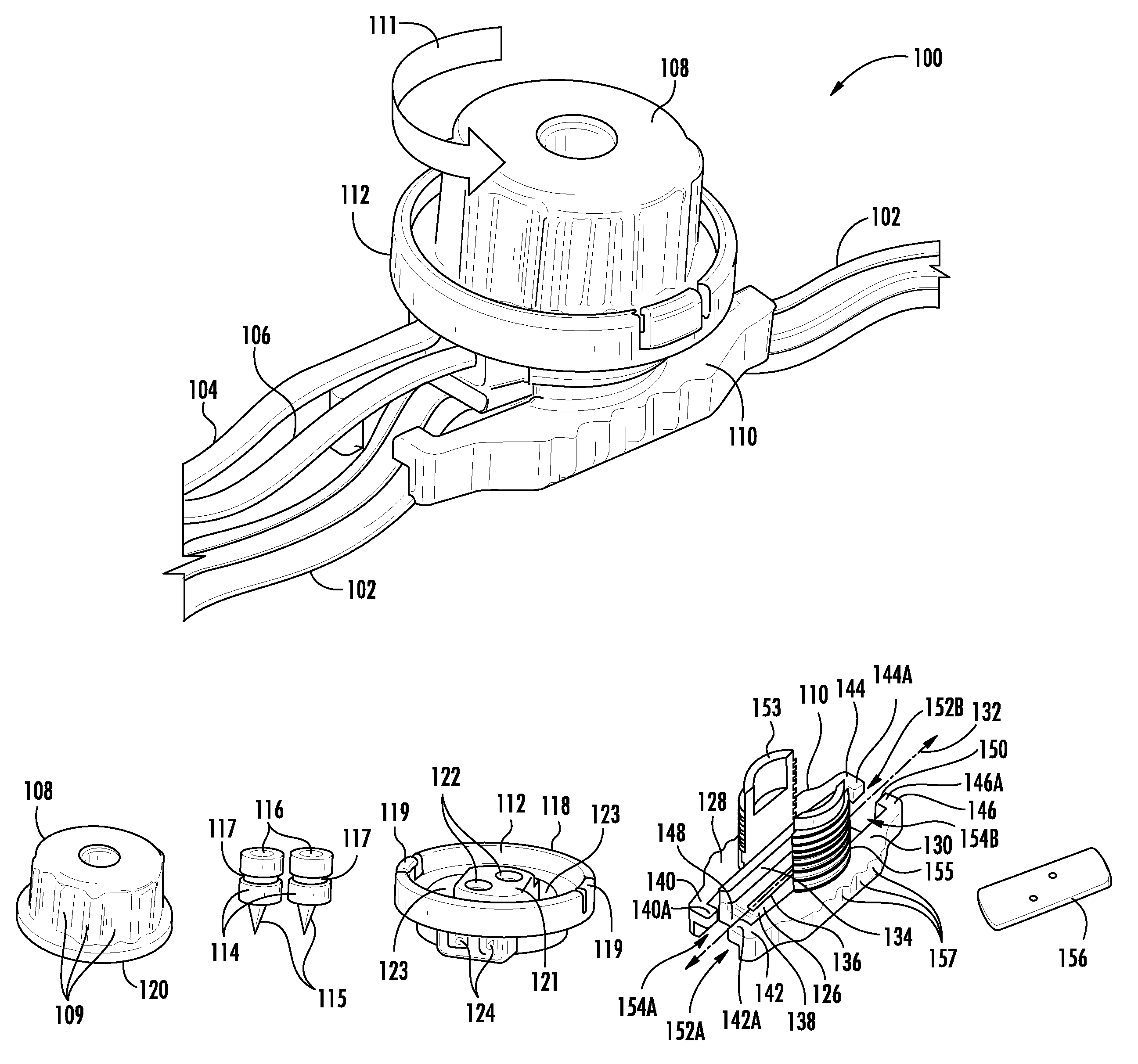

A connector includes a cable tray configured to receive and retain a cable in a stable position and couple with a top cap configured to create an electrical connection with the cable as the top cap is manipulated in a predetermined manner while coupled with the cable tray. An upper surface of the cable tray is configured to receive the cable (e.g., while the cable is generally parallel with the longitudinal axis of the cable tray). The cable tray also includes a finger extending beyond the first end for some distance longitudinally. The finger includes a protrusion that protrudes to some extent in a transverse direction so that a cable-accommodating gap is defined between the protrusion and the first end. The protrusion is configured to bear against the cable and retain the cable in the stable position when the cable is inserted between the protrusion and the first end.
