Discrete signal consolidation device and method and aircraft with said device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 17, 2013
Grant Date -
May 9, 2013
app pub date -
Nov 8, 2012
filing date -
Nov 8, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

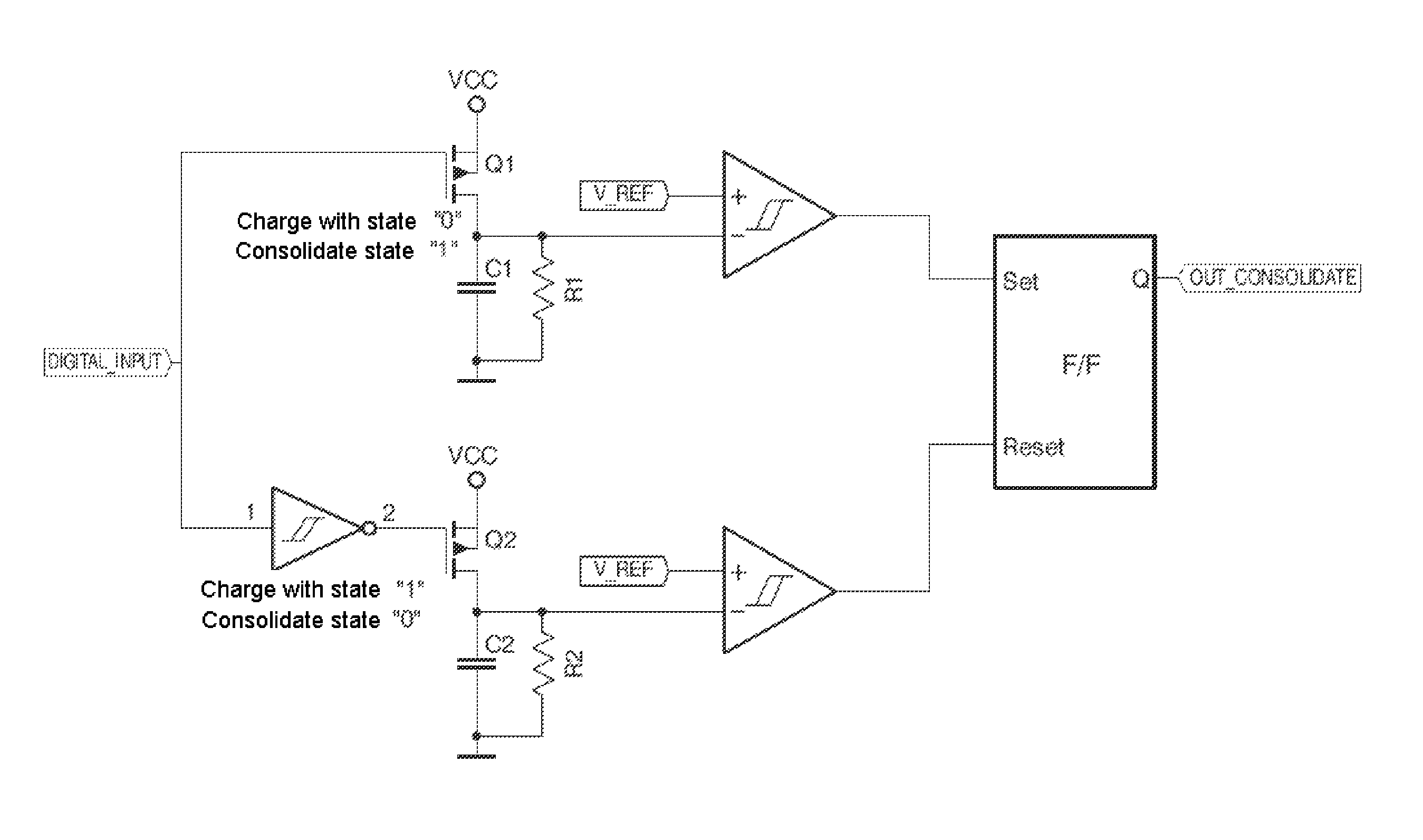

A device and a method for eliminating transitions in discrete signals. The working of the device and method is based on allowing the charge of a capacitor with one state when the state opposite the state to which it has been assigned is produced and allowing their discharge through a corresponding capacitor when their state is active. The signal is advantageously consolidated without needing processors or programs, is very simple, there is increased reliability, and the device can very easily be integrated in any sensor, such as those used in aircraft.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2012 Application Filing Year
- G06F Class
- 48051 Applications Filed
- 40472 Patents Issued To-Date
- 84.23 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 17, 2025 |
